Assembly
Do not select an assembly location exposed to electromagnetic fields, such as loca-
tions in the direct vicinity of contactors (power relay), mains transformers, ignition
transformers, fluorescent tubes, etc., or their connecting cables. Protect the control
unit from direct sunlight and driving rain.

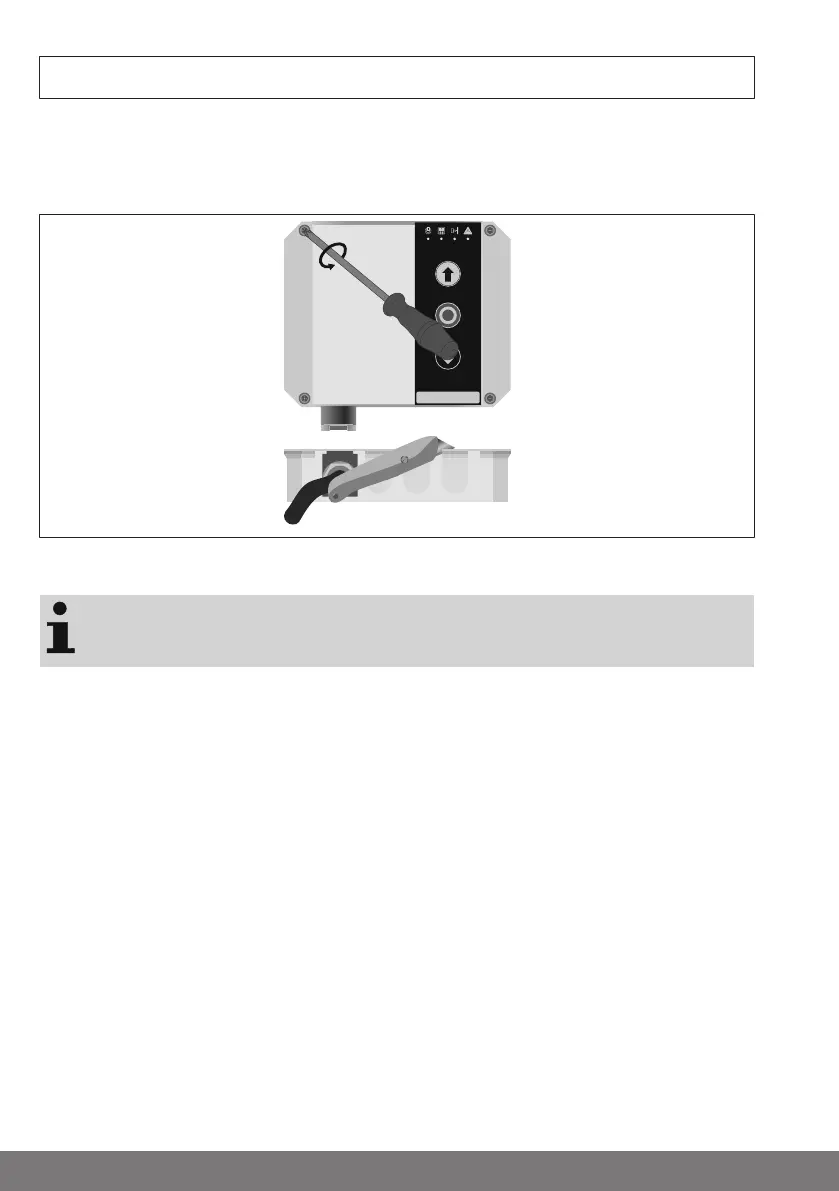

Open the cover of the control unit. Remove the cable from the cover and carefully place
the cover to one side. Remove the required cut-outs in the bottom part of the housing.
Cut in at the edges to make the cut-outs easier to remove.
Assemble the control unit at a suitable operating height (at least 1500 mm from the
ground). Mount the housing with 4 screws (max. diameter of screw head 7.5 mm) in-
serted through the holes provided in the corners.
Reconnect the cover cable and set the DIP switch. You can now close the control unit.
8
