Parameterization and Commissioning
BC8050 und BC8150
37
Version: 3.0.0

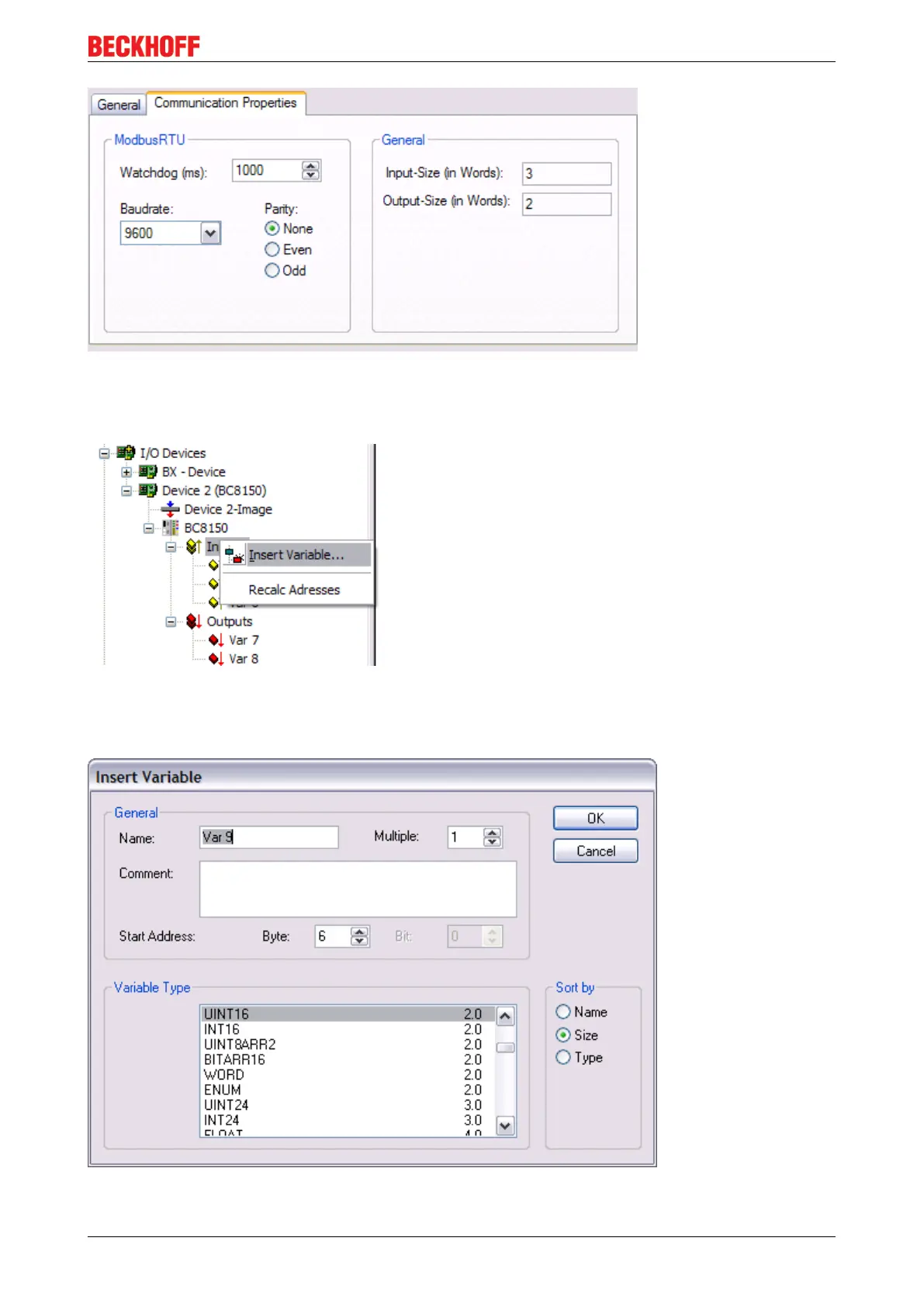

Fig.35: "Communication Properties" tab
Open the BC8150 and right-click on
Inputs
for setting up inputs or
Outputs
for setting up outputs to be
received or sent via the RS232 interface.
Fig.36: Creating variables (inputs, outputs)
Please not that an even start address (0, 2, 4, 6, ...) has to be selected for variables with a size of 2 bytes or
greater.
Fig.37: Definition of variables
