BFC VMC Series User Manual

5
HTE402559 23/47

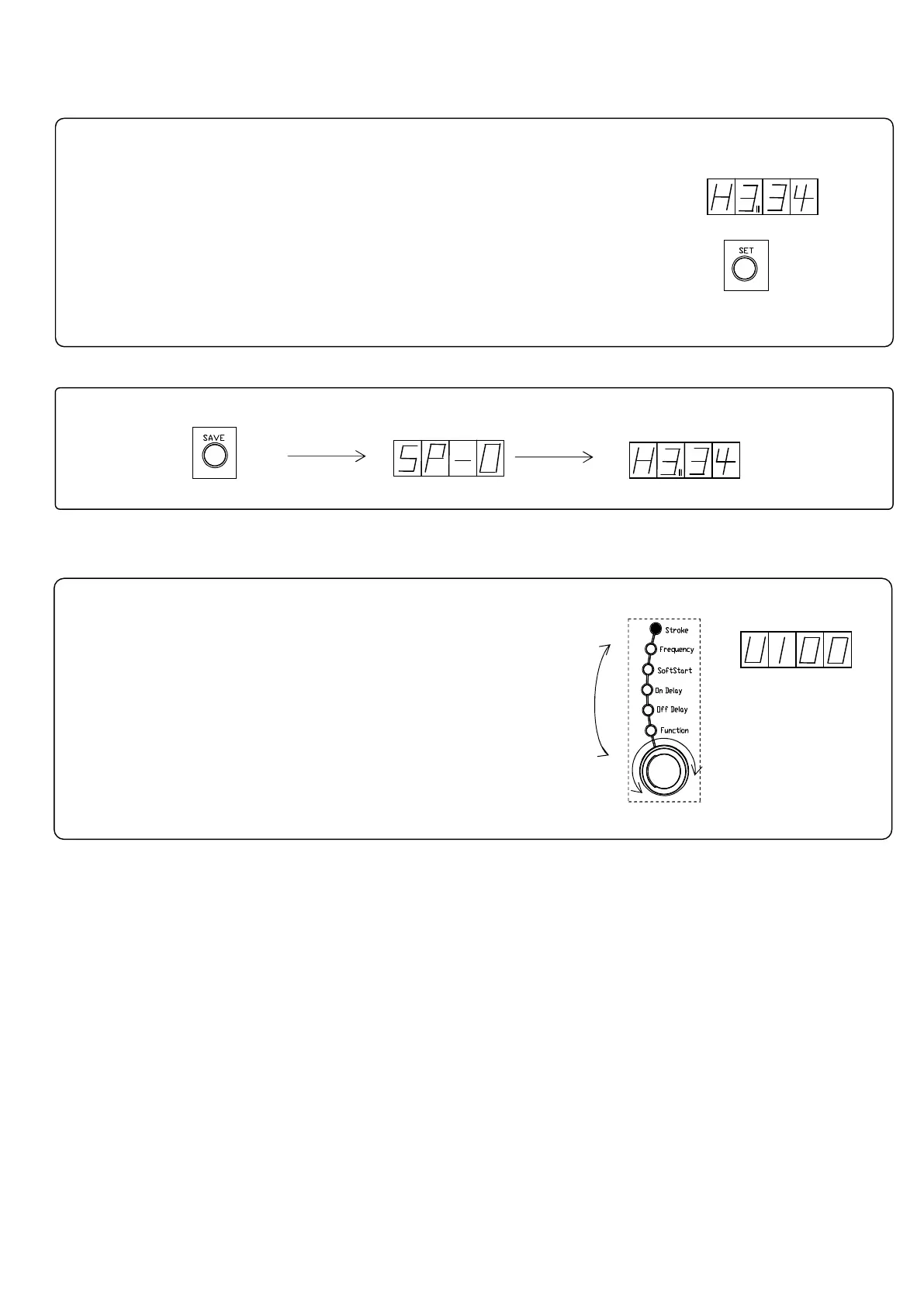

6. Push “Save” button to store the data having been set.
Push
Storing Converted
7. Dial the selection dial and select the “Stroke”.
Make sure that “100” appears on the display.
In the case that the stroke has been set on every combination
No. 1, 2 and 3 all settings are converted with the scaling
coefficient calculated above.
There is no need to reset them again.
Selection Dial
Dial
Turning on
5. Push and hold the “Set” button more than three seconds and the minimum scaling coefficient that
converts the present stroke data into just “100” appears on the display.
The coefficient is calc
ulated automatically in the machine.
Example: Present stroke data “30.0” percent per the output voltage
After it converted “100” percent per the controllable range
The coefficient calculated 100/30.0=3.34
Push and hold more than 3 seconds
The third decimal place is rounded up.
