BFC VMC Series User Manual

5
HTE402559 41/47
Function
Code
Name of Function Applicable Range
Factory
Default
Remarks
Ur
Information on version Program Version
Ex.
1.0
See page 11
F
Drive frequency range
90:45 to 90Hz（Half-wave）
180:90 to 180Hz（Full-wave）
360:180 to 360Hz （High-frequency）
120:65 to 120Hz（Middle-frequency）
180 See page 14
Sen
Direction of stroke sensor
0: Reverse phase
1: Synchronous phase
2: Automatic setting
0 See page 28
rnt
Remote
0: Panel operation
1: 4-20 mA current control
2: Two-Rate-of-Feed with two external rheostats
0 See page 34
E-
Error code Error Code of arising error E- See page 42
rS
Run/Stop by the Panel mode
0: Running and stopping by RUN/STOP button on the panel
1: Power supply runs the feeder ignoring RUN/STOP
button
1 See page 8
con
Logic of external signal
“P1”, “P2”
0: “P1” and “P2” is open
1: “P1” and “P2” is close
0 See page 29
H
Scaling of the stroke
Scaling coefficient: 1.00 to 5.00
1.00 See page 22
G
Control Gain
Gain Range: 0.01 to 9.00
On the auto-
tuning and constant stroke mode,
adjusting gain improves responsibility and
stability of soft start and etc.
1.00
See page 21
See page 24
Fb
Feedback Gain
0: Normal
1: Fine
In the case frequency range “Ｆ360”
is selected
the feedback gain is set for “Fine”
automatically.
0/1 See page 17
Loc
Key Lock
0: Lock off
1: Lock on
0 See page 24

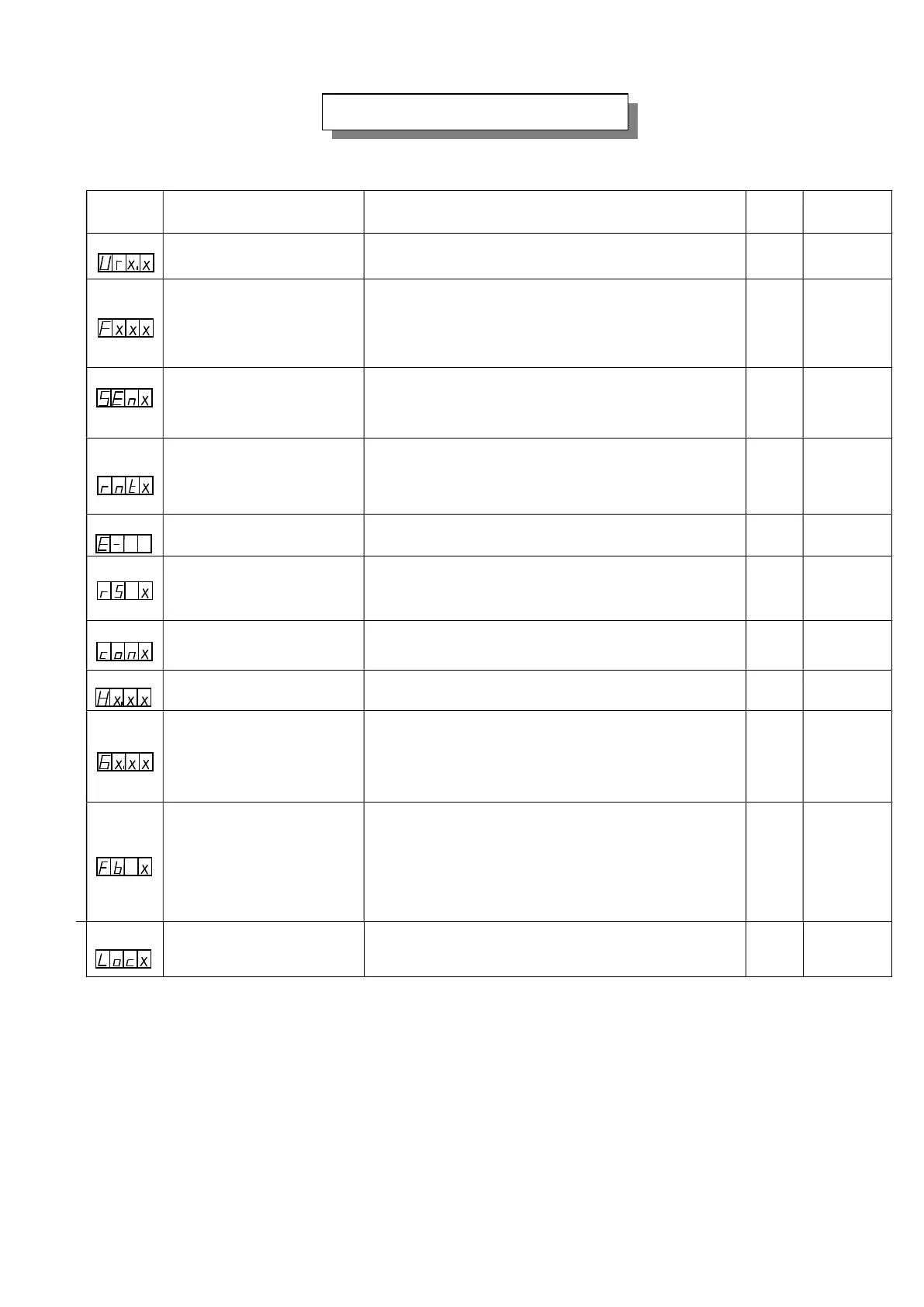

Function Table
