Bitzer CM-RC-01 User Manual

v. 3.0
Reference guide
Compressor Control Module CM-RC-01
3.0
12 / 44
4.2.6 Application limits (option)
Optional pressure transducers are needed.
The application limits function monitors if the operating conditions of the compressor is within the
safe operation area limits – as shown in the BITZER Software when doing compressor
calculations.
The BITZER Software can be downloaded from BITZER’s homepage, www.BITZER.de.
The operating point is determined by the saturated suction and discharge gas temperatures, which
are calculated from the suction and discharge gas pressure based on the selected refrigerant.

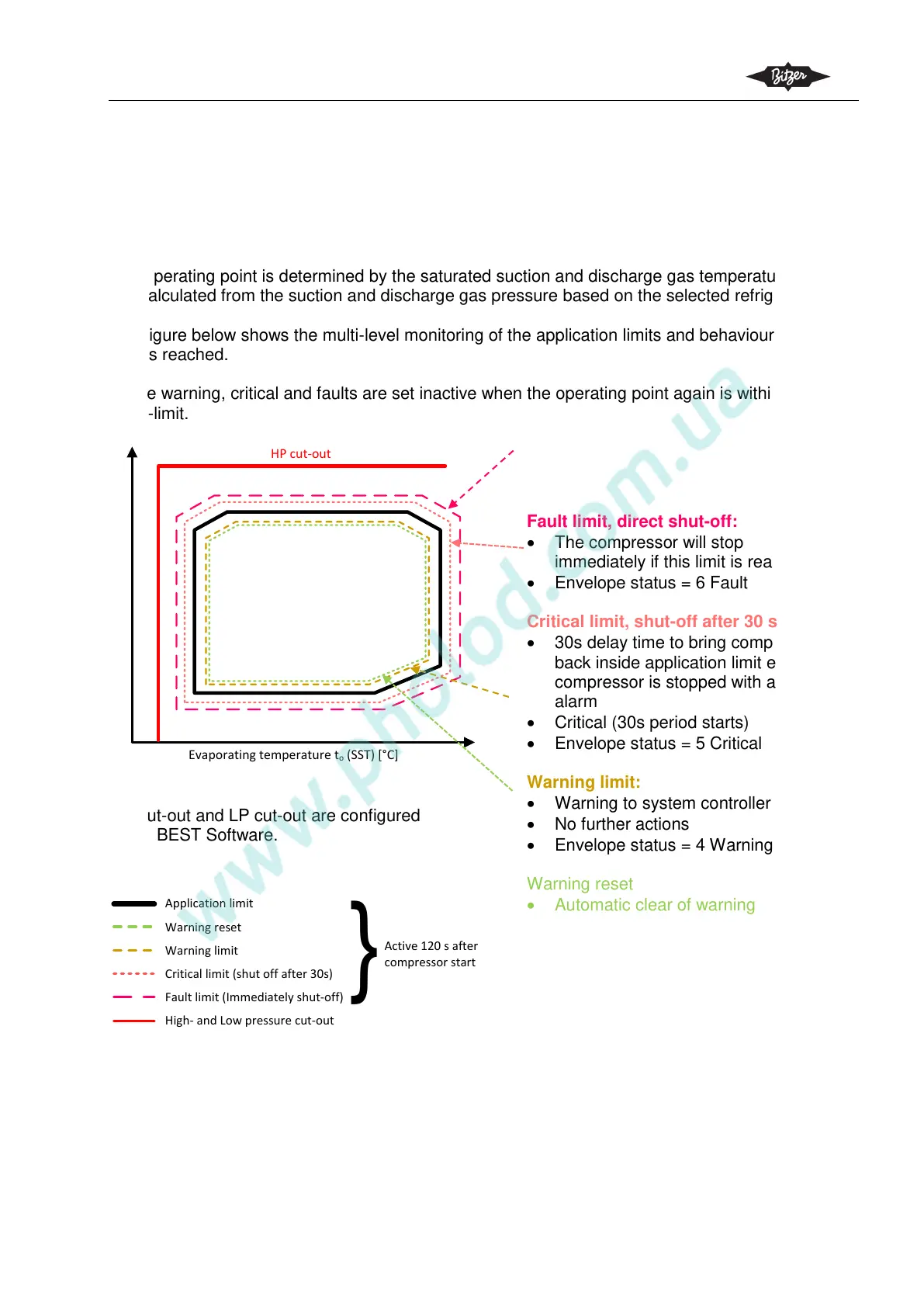

The figure below shows the multi-level monitoring of the application limits and behaviour when a
limit is reached.
Active warning, critical and faults are set inactive when the operating point again is within the
reset-limit.
HP cut-out and LP cut-out are configured
in the BEST Software.
Evaporating temperature t
o
(SST) [°C]
Condensing temperature t
c
(SDT) [°C]
HP cut-out
LP cut-out
Application limit
Warning reset
Warning limit
Critical limit (shut off after 30s)
Fault limit (Immediately shut-off)
High- and Low pressure cut-out
}
Active 120 s after
compressor start
Fault limit, direct shut-off:
 The compressor will stop
immediately if this limit is reached!
 Envelope status = 6 Fault
Critical limit, shut-off after 30 s:
 30s delay time to bring compressor
back inside application limit else the
compressor is stopped with a Fault
alarm
 Critical (30s period starts)
 Envelope status = 5 Critical
Warning limit:
 Warning to system controller
 No further actions
 Envelope status = 4 Warning
Warning reset
 Automatic clear of warning
