10.3.9 Configuration – COM1
The group contains information for the serial communication.
Modbus
type & addr
Name
Possible
values
Default
Description
HR 65409
COM1 Address
(COM1.Address)
1 - 247
scale 1
uint8
48
Device address for Modbus connection
HR 65410
COM1 Baudrate
(COM1.Baudrate)
1 - 132
scale 1
uint8
2
Communication speed
(1=9600, 2=19200, 3=115200, 129=300,
130=1200, 131=4800, 132=38400)
HR 65411
COM1 Stop Bits
(COM1.StopBits)
1 - 2
scale 1
uint8
1
Number of stop bits
(1=1 Stopbit, 2=2 Stopbits)
HR 65412
COM1 Parity
(COM1.Parity)
0 - 2
scale 1
uint8
1
Parity check
(0=None, 1=Even, 2=Odd)

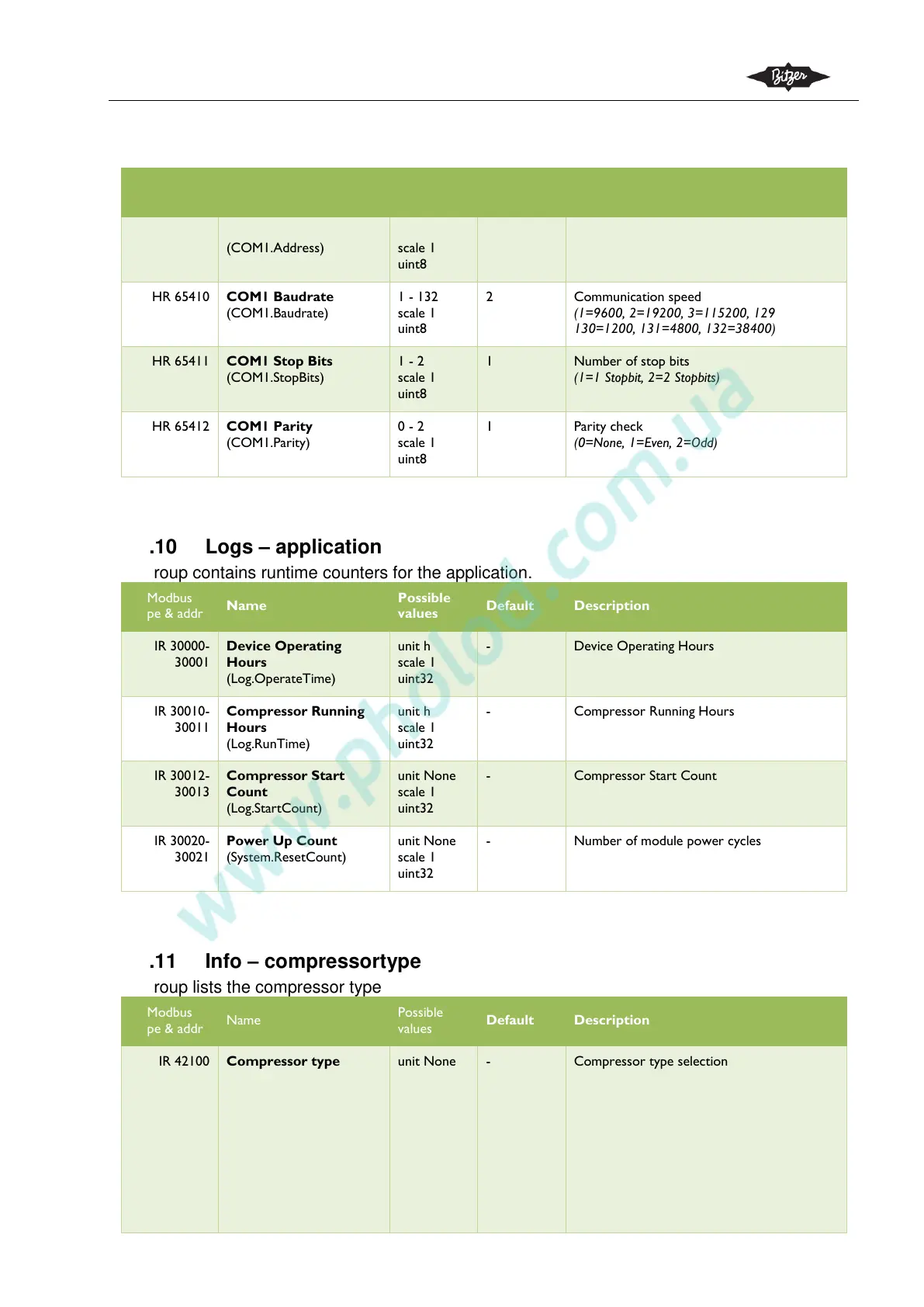

10.3.10 Logs – application
The group contains runtime counters for the application.
Modbus
type & addr
Name
Possible
values
Default
Description
IR 30000-
30001
Device Operating
Hours
(Log.OperateTime)
unit h
scale 1
uint32
-
Device Operating Hours
IR 30010-
30011
Compressor Running
Hours
(Log.RunTime)
unit h
scale 1
uint32
-
Compressor Running Hours
IR 30012-
30013
Compressor Start
Count
(Log.StartCount)
unit None
scale 1
uint32
-
Compressor Start Count
IR 30020-
30021
Power Up Count
(System.ResetCount)
unit None
scale 1
uint32
-
Number of module power cycles
10.3.11 Info – compressortype
The group lists the compressor type
Modbus
type & addr
Name
Possible
values
Default
Description
IR 42100
Compressor type
selection
(Config.CprType)
unit None
scale 1
uint16
-
Compressor type selection
(0=NONE, 5121=4VE-6Y, 5122=4VES-6Y,
5123=4VE-7(Y), 5124=4VES-7(Y), 5125=4VE-
10(Y), 5126=4VES-10(Y), 5127=4TE-8Y,
5128=4TES-8Y, 5129=4TE-9(Y), 5130=4TES-
9(Y), 5131=4TE-12(Y), 5132=4TES-12(Y),
5133=4PE-10Y, 5134=4PES-10Y, 5135=4PE-
12(Y), 5136=4PES-12(Y), 5137=4PE-15(Y),
5138=4PES-15(Y), 5139=4NE-12Y,
5140=4NES-12Y, 5141=4NE-14(Y),
5142=4NES-14(Y), 5143=4NE-20(Y),
