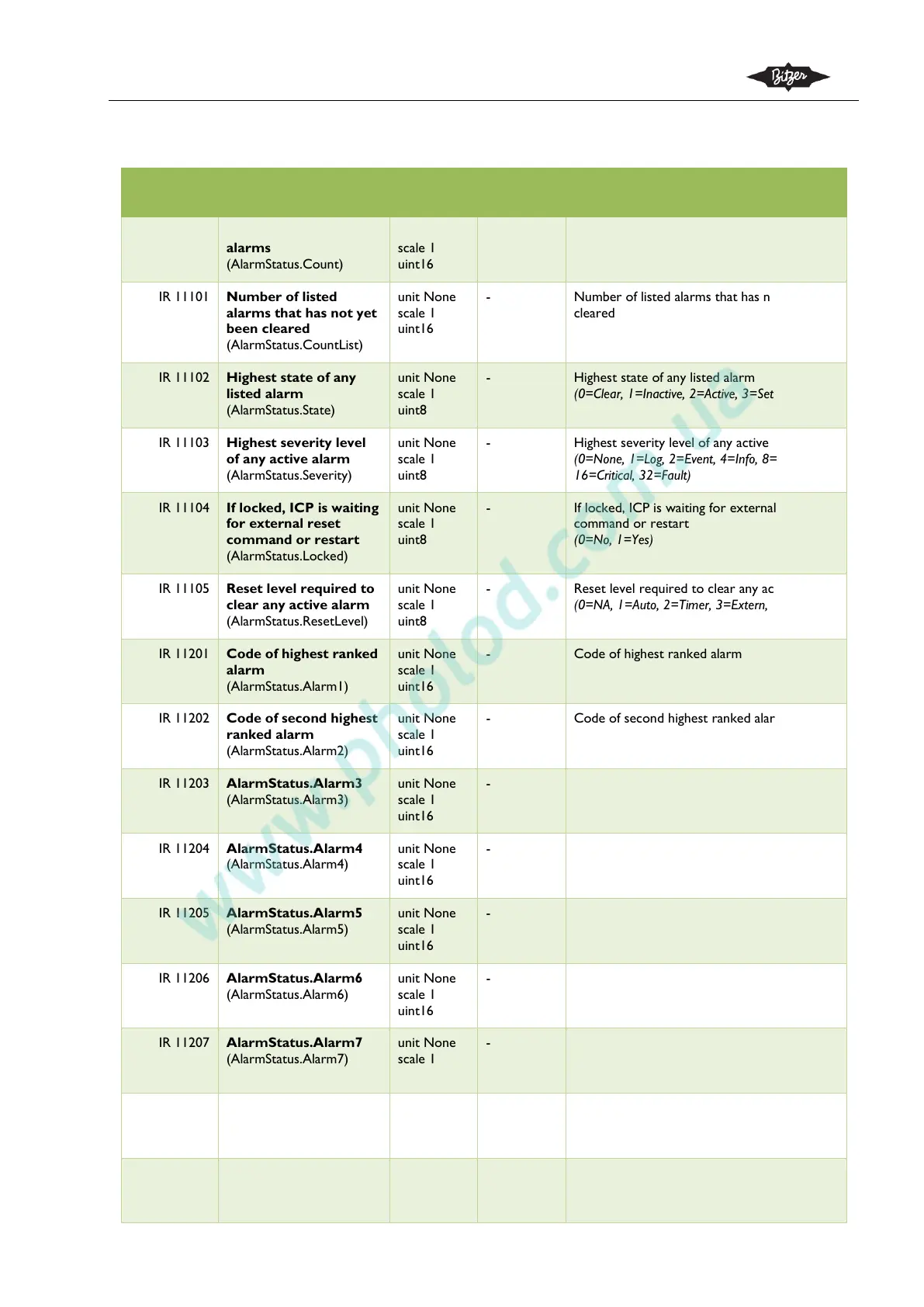

10.3.2 Status – alarm
The group contains information about current state of alarms.
Modbus
type & addr
Name
Possible
values
Default
Description
IR 11100
Number of active
alarms
(AlarmStatus.Count)
unit None
scale 1
uint16
-
Number of active alarms
IR 11101
Number of listed
alarms that has not yet
been cleared
(AlarmStatus.CountList)
unit None
scale 1
uint16
-
Number of listed alarms that has not yet been
cleared
IR 11102
Highest state of any
listed alarm
(AlarmStatus.State)
unit None
scale 1
uint8
-
Highest state of any listed alarm
(0=Clear, 1=Inactive, 2=Active, 3=Set)
IR 11103
Highest severity level
of any active alarm
(AlarmStatus.Severity)
unit None
scale 1
uint8
-
Highest severity level of any active alarm
(0=None, 1=Log, 2=Event, 4=Info, 8=Warning,
16=Critical, 32=Fault)
IR 11104
If locked, ICP is waiting
for external reset
command or restart
(AlarmStatus.Locked)
unit None
scale 1
uint8
-
If locked, ICP is waiting for external reset
command or restart
(0=No, 1=Yes)
IR 11105
Reset level required to
clear any active alarm
(AlarmStatus.ResetLevel)
unit None
scale 1
uint8
-
Reset level required to clear any active alarm
(0=NA, 1=Auto, 2=Timer, 3=Extern, 4=Restart)
IR 11201
Code of highest ranked
alarm
(AlarmStatus.Alarm1)
unit None
scale 1
uint16
-
Code of highest ranked alarm
IR 11202
Code of second highest
ranked alarm
(AlarmStatus.Alarm2)
unit None
scale 1
uint16
-
Code of second highest ranked alarm
IR 11203
AlarmStatus.Alarm3
(AlarmStatus.Alarm3)
unit None
scale 1
uint16
-
IR 11204
AlarmStatus.Alarm4
(AlarmStatus.Alarm4)
unit None
scale 1
uint16
-
IR 11205
AlarmStatus.Alarm5
(AlarmStatus.Alarm5)
unit None
scale 1
uint16
-
IR 11206
AlarmStatus.Alarm6
(AlarmStatus.Alarm6)
unit None
scale 1
uint16
-
IR 11207
AlarmStatus.Alarm7
(AlarmStatus.Alarm7)
unit None
scale 1
uint16
-
IR 11208
AlarmStatus.Alarm8
(AlarmStatus.Alarm8)
unit None
scale 1
uint16
-
IR 11209
AlarmStatus.Alarm9
(AlarmStatus.Alarm9)
unit None
scale 1
uint16
-
