Bitzer CM-RC-01 User Manual

v. 3.0
Reference guide
Compressor Control Module CM-RC-01
3.0
35 / 44
10.3.5 Status – device
The group contains operating state for the CM-RC-01.
Modbus
type & addr
Name
Possible
values
Default
Description
IR 14000
System operating state
(System.State)
unit None
scale 1
uint8
-
System operating state
(0=CONFIG, 1=INPUT, 2=STARTUP, 3=READY,
4=SUSPEND, 5=SERVICE, 6=PRODUCTION)

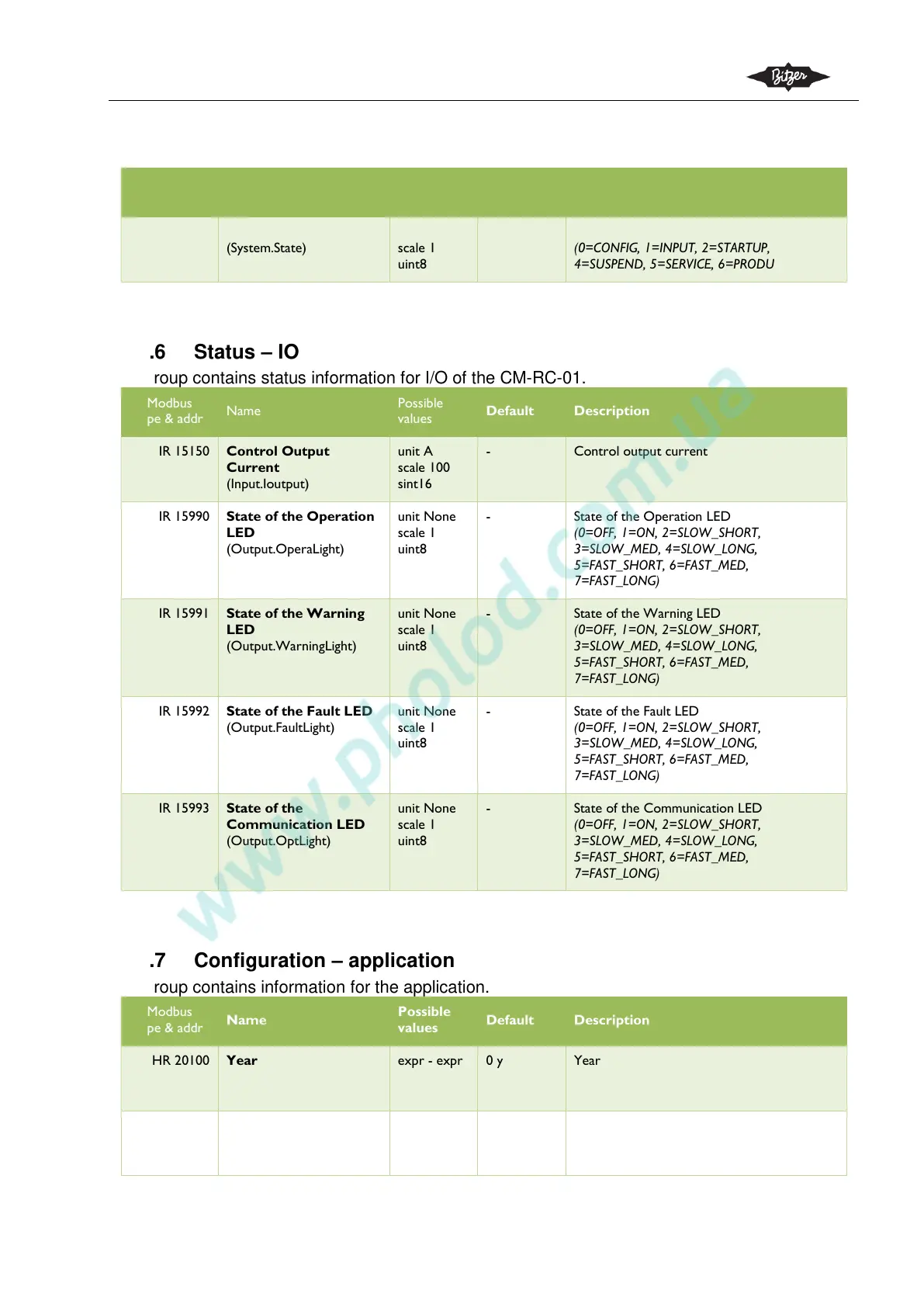

10.3.6 Status – IO
The group contains status information for I/O of the CM-RC-01.
Modbus
type & addr
Name
Possible
values
Default
Description
IR 15150
Control Output
Current
(Input.Ioutput)
unit A
scale 100
sint16
-
Control output current
IR 15990
State of the Operation
LED
(Output.OperaLight)
unit None
scale 1
uint8
-
State of the Operation LED
(0=OFF, 1=ON, 2=SLOW_SHORT,
3=SLOW_MED, 4=SLOW_LONG,
5=FAST_SHORT, 6=FAST_MED,
7=FAST_LONG)
IR 15991
State of the Warning
LED
(Output.WarningLight)
unit None
scale 1
uint8
-
State of the Warning LED
(0=OFF, 1=ON, 2=SLOW_SHORT,
3=SLOW_MED, 4=SLOW_LONG,
5=FAST_SHORT, 6=FAST_MED,
7=FAST_LONG)
IR 15992
State of the Fault LED
(Output.FaultLight)
unit None
scale 1
uint8
-
State of the Fault LED
(0=OFF, 1=ON, 2=SLOW_SHORT,
3=SLOW_MED, 4=SLOW_LONG,
5=FAST_SHORT, 6=FAST_MED,
7=FAST_LONG)
IR 15993
State of the
Communication LED
(Output.OptLight)
unit None
scale 1
uint8
-
State of the Communication LED
(0=OFF, 1=ON, 2=SLOW_SHORT,
3=SLOW_MED, 4=SLOW_LONG,
5=FAST_SHORT, 6=FAST_MED,
7=FAST_LONG)
10.3.7 Configuration – application
The group contains information for the application.
Modbus
type & addr
Name
Possible
values
Default
Description
HR 20100
Year
(DateAndTime.Year)
expr - expr
scale 1
uint16
0 y
Year
HR 20101
Month and Day
(DateAndTime.MonthDay)
257 - 3103
scale 1
uint16
0
Month and Day
