HiFi Amplifier
The HiFi amplifier is connected to the K-CAN for coding and diagnostics. The HiFi
amplifier can be programmed but it is supplied by the manufacturer already prepro-
grammed at the factory.
The Audio signals are transmitted in analog form from the head unit to the HiFi
amplifier. The internal digital equalizer adapts the audio signals specifically to the vehicle,
as determined by the coding. The iDrive does not equalize any signals.
The adapted and amplified signals of HiFi quality are distributed through seven audio
channels to a total of twelve speakers:
• One tweeter and one mid-range speaker in each of the front doors.
• One tweeter and mid-range speaker in the dashboard (center).
• One tweeter and one mid-range speaker on the rear shelf.
• One central bass speaker under each of the front seats.
The HiFi amplifier is located at the rear left of the luggage compartment behind
the side panel trim.

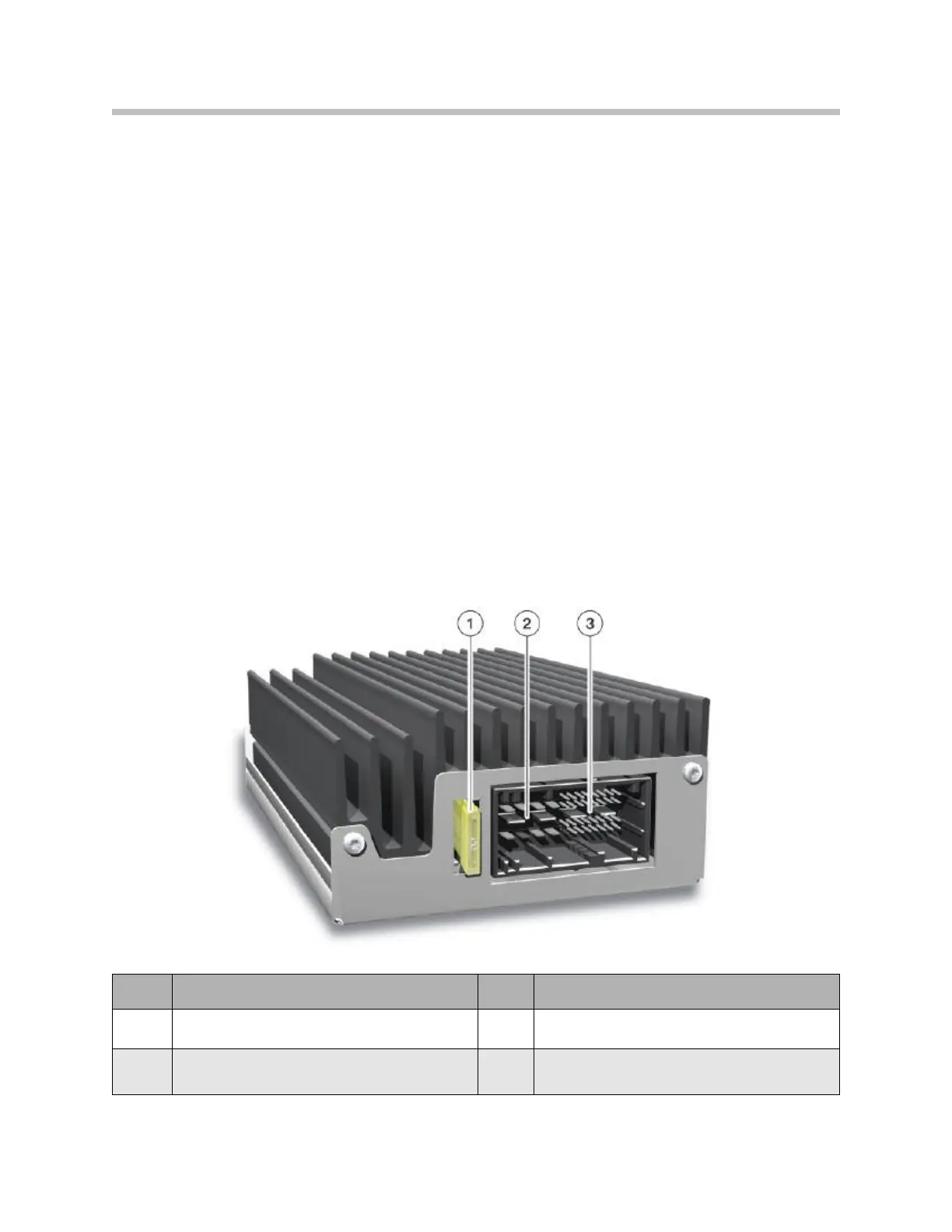

Index Explanation Index Explanation
1
Safety fuse
3
Connection for audio signals, K-CAN
and control signals
2
Connection for central bass
speakers and power supply
HiFi amplifier
72
F01 Audio Systems
