Roof Antenna
The roof antenna housing is always fitted regardless of the equipment options on the
vehicle.
The roof antenna includes the following components:
• Mobile phone antenna
• Telematics Control Unit (TCU) telephone antenna
• GPS antenna
• SDARS satellite radio reception antenna

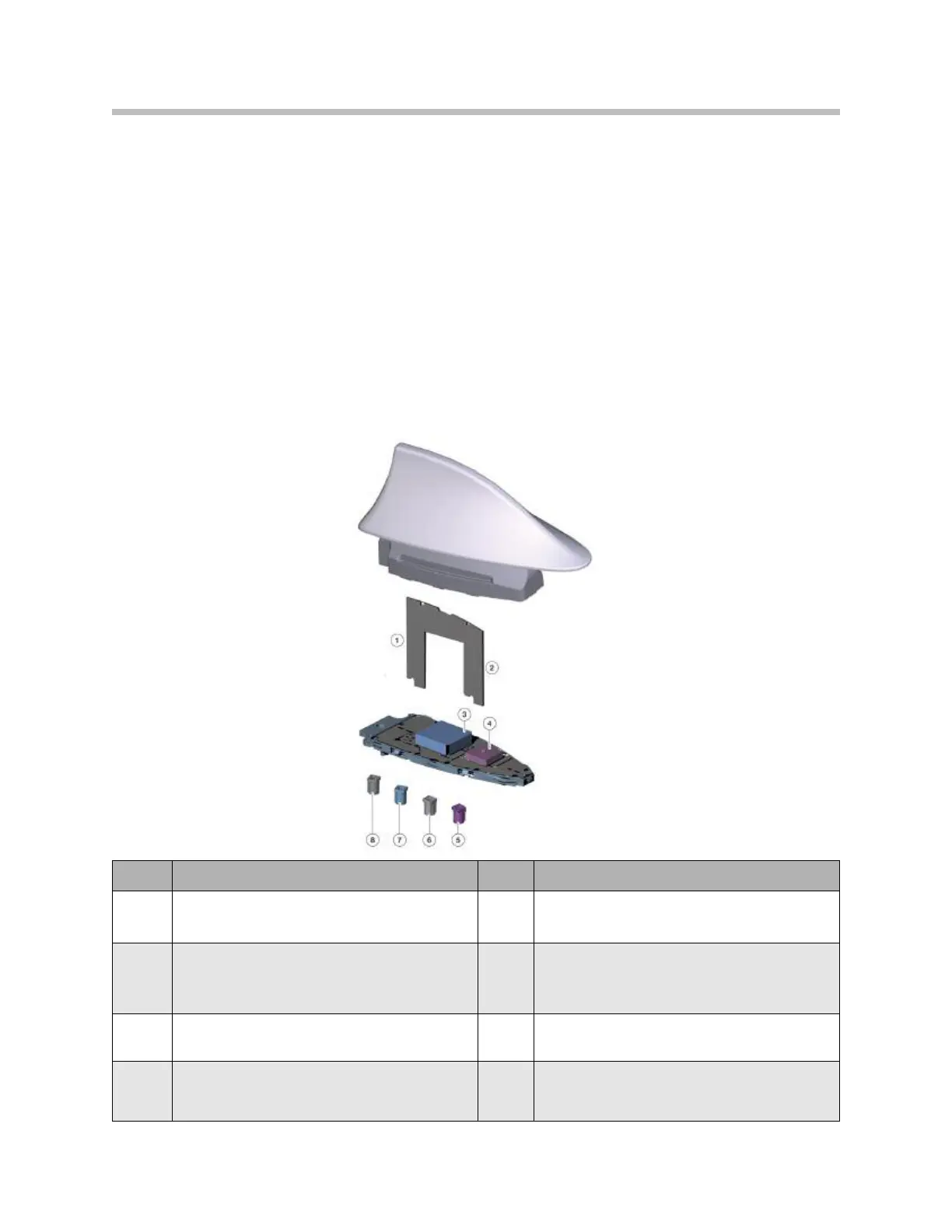

F01/F02 Roof antenna
Index Explanation Index Explanation
1
Telephone antennas for
telematics control unit (TCU)
5
SDARS signal, satellite and terrestrial
( violet connection)
2
Telephone antennas for mobile phone
6
Telephone signal: mobile phone;
metal color connector;
Bordeaux violet coding connector
3
GPS antenna
7
GPS signal (blue color connector)
4
SDARS antenna for satellite reception
8
Telephone signal: TCU;
metal color connector;
grey color coding connector
