AM Diversity
For AM services (SW, MW and LW) no antenna diversity system is provided as there is
only one AM antenna.
Remote Control Services (FBD)
In addition to the antennas listed above there are the antennas for the remote control
services (FBD) and the nine antennas for comfort access (four antennas on the outside
and five in the interior).
Note: For detailed Information on the antennas system refer to the F01/F02
“Central locking”, “Comfort Access” and “Car Access System”
Training Material.
FM Rejector Circuit
The two rejector circuit modules for FM are located on the left and right of the rear
window.
One rejector circuit is intended for the power supply of the lower section of the rear
window.
The second circuit is for the upper section of the rear window defogger which is powered
by the AM restrictor described in the following pages.

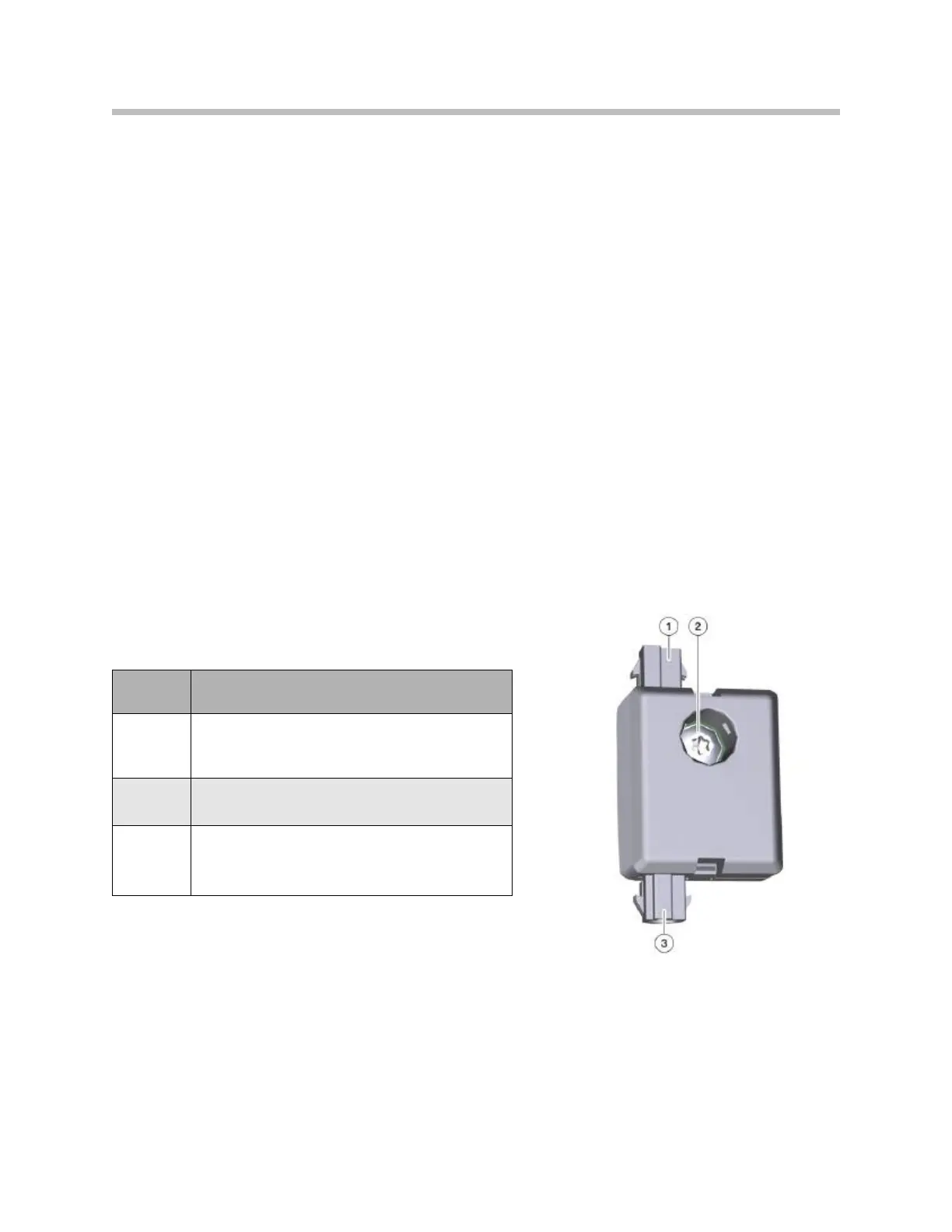

Index Explanation
1
Rejector circuit on left side
Terminal 31, rear window: lower
section of rear window
2
Threaded ground connection
to vehicle body
3
Rejector circuit on left-side
Terminal 31, connection,
vehicle wiring harness
Left side antenna amplifier
82
F01 Audio Systems
