Mirrors

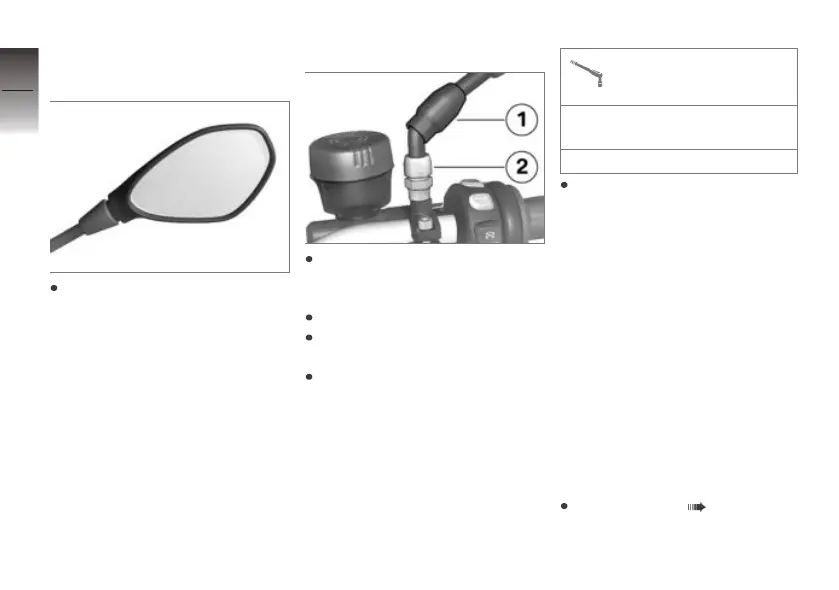

Adjust the mirrors
Turn the mirror to the correct
position.
Adjusting mirror arm
Push protective cap 1 up over
the threaded fastener on the
mirror arm.
Slacken nut 2.
Turn the mirror arm to the ap-
propriate position.
Tighten the nut to the spe-
cified tightening torque, while
holding the mirror arm to en-
sure that it does not move out
of position.
Locknut (mirror) to
clamping piece
Joining compound: Multi-wax
spray
20 Nm
Push the protective cap over
the threaded fastener.
Spring preload
Setting
It is essential to set spring pre-
load of the rear suspension to
suit the load carried by the mo-
torcycle. Increase spring preload
when the motorcycle is heavily
loaded and reduce spring preload
accordingly when the motorcycle
is lightly loaded.
Adjust spring preload for
rear wheel
Removing seat ( 51).
4
46
z
Operation
