Indicator/warning lamps
Instrument cluster
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning when the engine is started or the ig‐
nition is switched on, and light up briefly.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions and
on how to respond, refer to page 186.

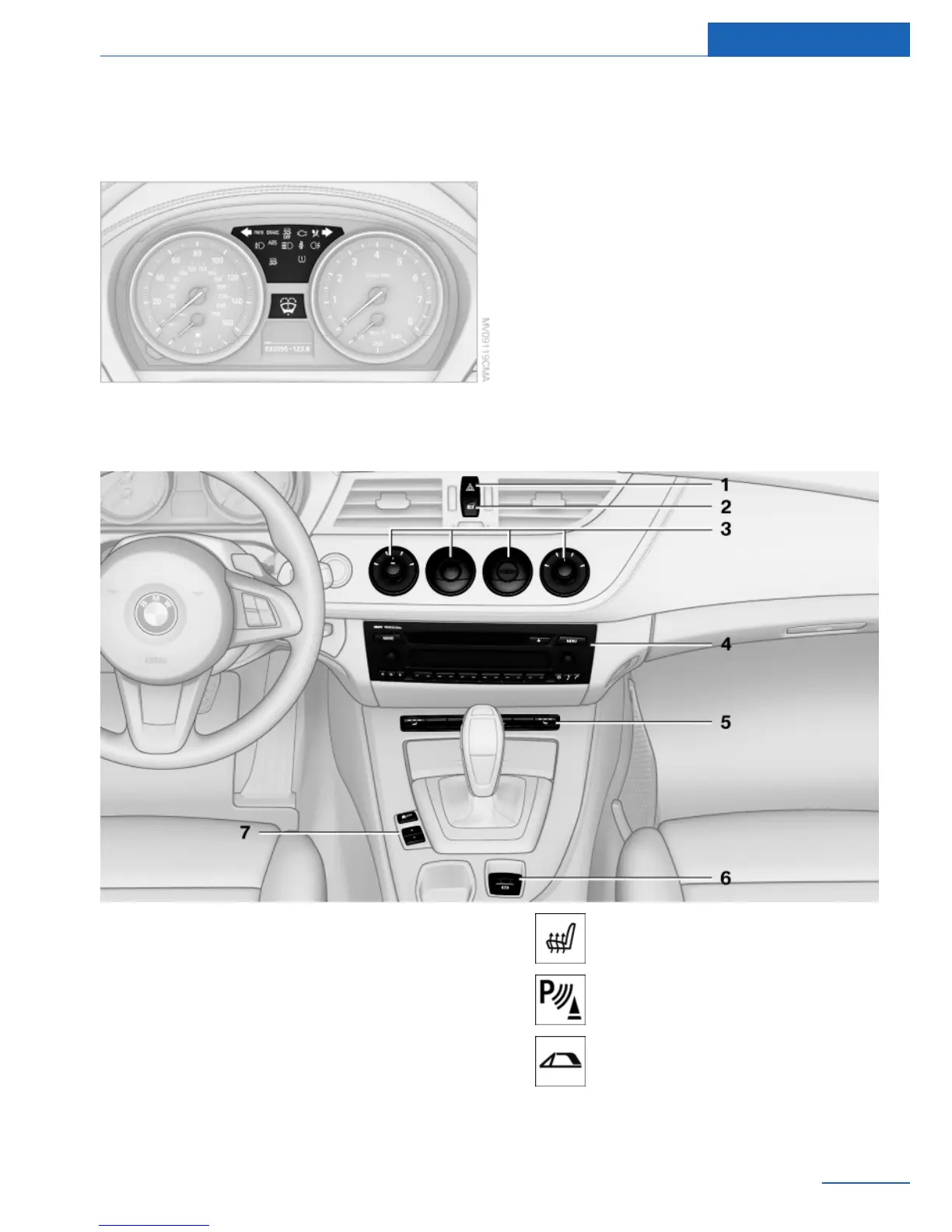

All around the center console
1 Hazard warning system 176
2 Central locking system 26
3 Air conditioner 90
Automatic climate control 92
4 Professional Radio 116
5 Seat heating 38
PDC Park Distance Control 87
Close the retractable hard‐
top 33
Seite 15
Cockpit At a glance
15
Online Edition for Part no. 01 40 2 609 184 - 09 11 500
