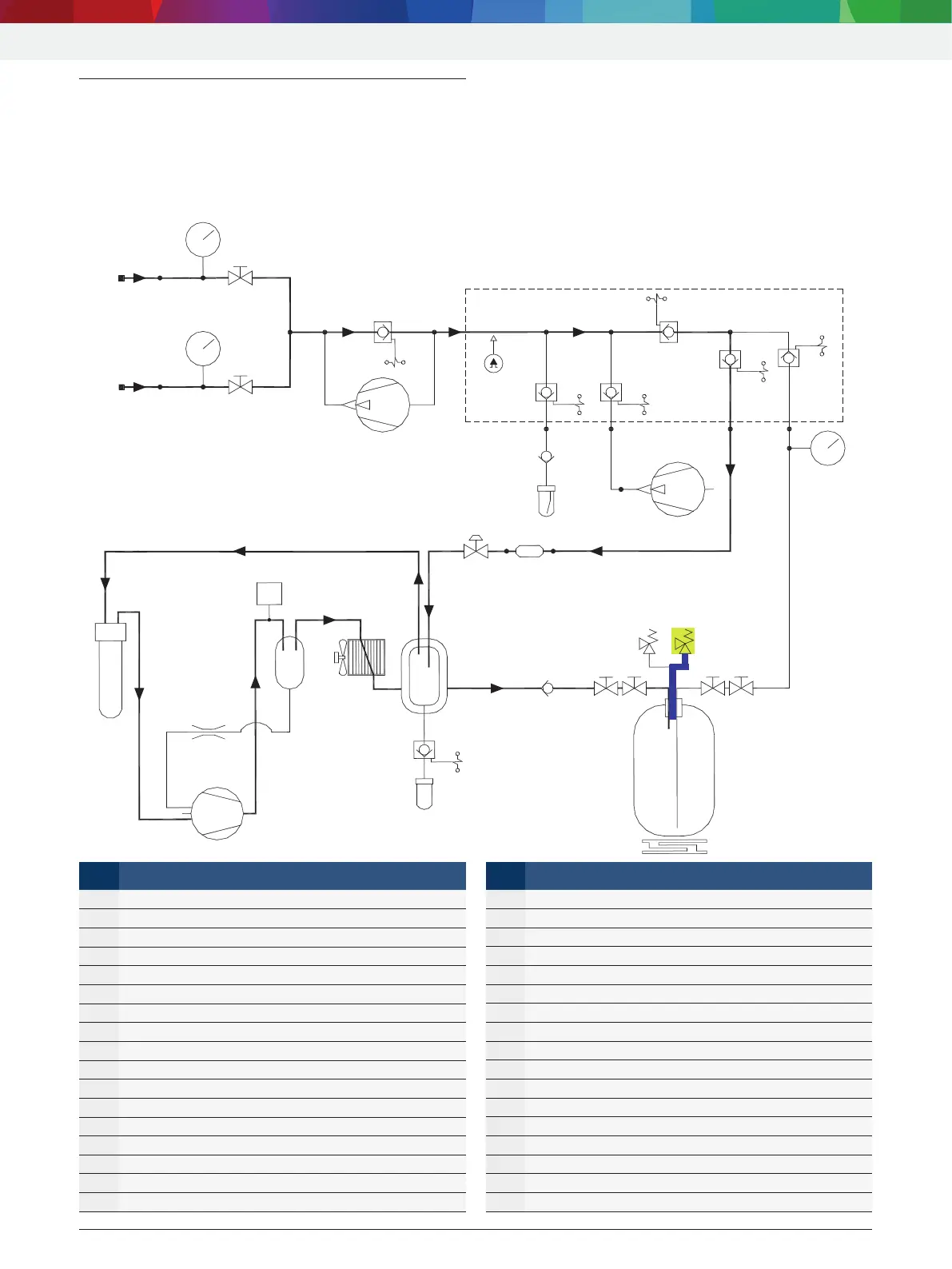

8.9 Non-condensing gases
i The drain valve (V6) for non-condensing gases
opens if the pressure in the refrigerant cylinder
is higher than the set opening pressure (normally
between 12 and 14 bar).
i The pressure of the internal refrigerant cylinder
increases during the recovery phase and when
preparing the refrigerant.
i The safety valve (V5) opens at a factory set
pressure (approx. 18 bar) to limit the pressure in
the internal refrigerant cylinder.
Des. Description
1 Fresh oil tank
2 Vacuum pump
3 Expansion valve
4 Evaporator/oil separator
5 Compressor oil separator
6 Compressor
7 Internal refrigerant cylinder
8 Refrigerant cylinder scale
9 Used oil bottle
10 Heat exchanger
11 Refrigerant pump
T1 Low pressure hose
T2 High pressure hose
M1 Low pressure gage
M2 High pressure gage
M3 Internal refrigerant cylinder pressure gage
F1 Coarse filter
Des. Description
F2 Combi filter
VU1 Oil non-return valve
EV1 Vacuum solenoid valve
EV3 Flow solenoid valve
EV5 Recovery solenoid valve
EV6 Filling solenoid valve
EV7 Oil drain solenoid valve
EV8 Oil injection solenoid valve
EV10 Refrigerant pump by-pass solenoid valve
P1 Pressure sensor
P2 Pressure switch
V1 Tank vapour side hose valve
V2 Tank liquid side hose valve
V3 Tank vapour side valve
V4 Tank liquid side valve
V5 Safety valve
V6 Non condensable drain valve
M2
HIGH
LOW
P1
T1
T2
EV8
1
2
P
EV1
EV5
EV3
EV6
3F1
C
P2
HP
5
6
F2
9
4
EV7
10
7
V1
8
V3 V2V4
V6V5
M1
M3
EV10
VU1
11
P
