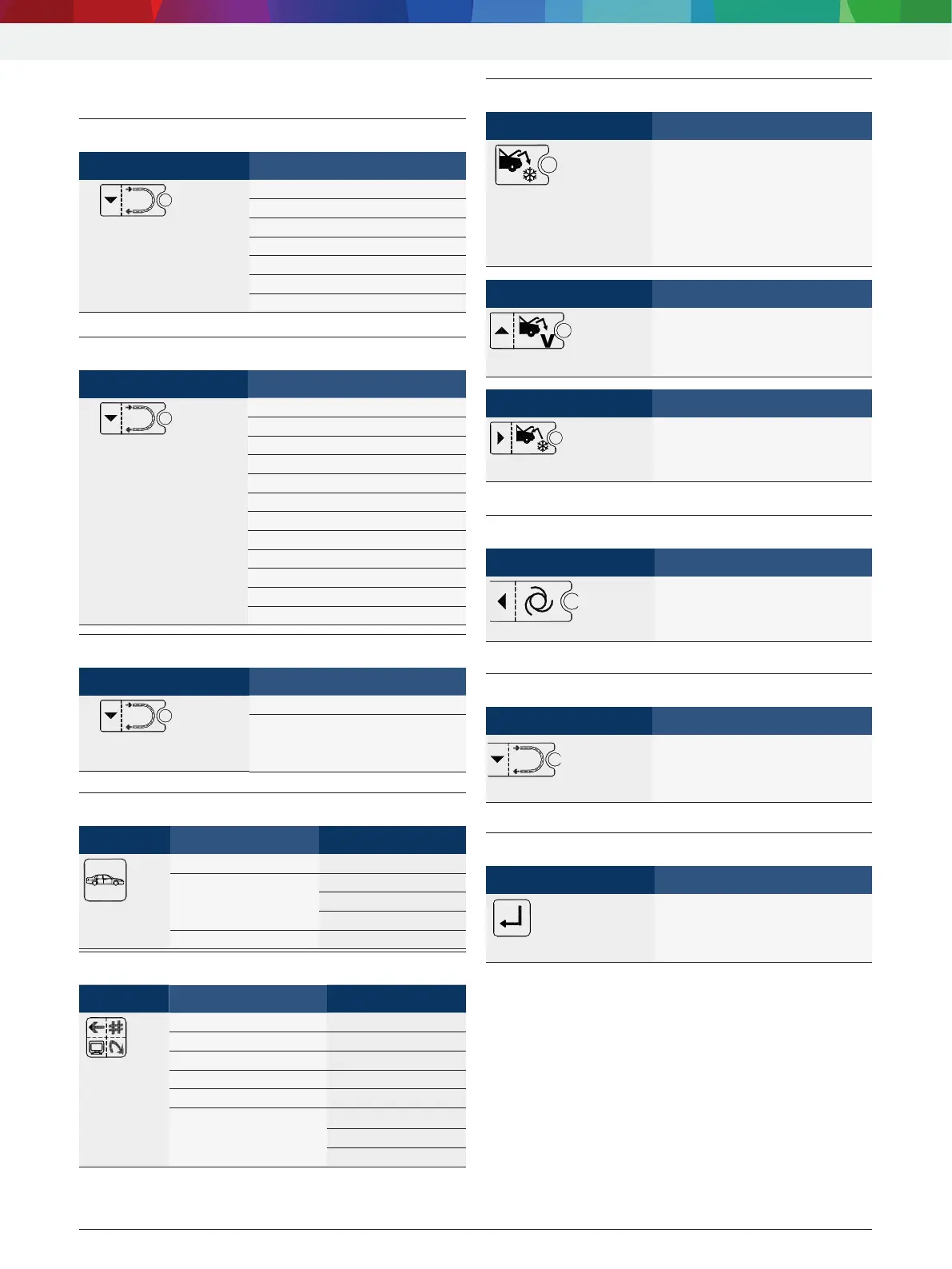

6. Program structure
6.1 Calibration and tare
Input Menu
1. + <3>
2. Enter 1111.
3. Confirm with E.
TANK CALIBRATION
IN OIL CALIBRATION
1)
OUT OIL CALIBRATION
1)
PRES. CALIBRATION
TANK TARE
IN OIL TARE
1)
OUT OIL TARE
1)
6.2 Settings
Input Menu
1. + <3>
2. Enter 2222.
3. Confirm with E.
LANGUAGE
DATE/TIME
UNIT OF MEASURE
HOSES LENGTH
CONTRAST
GARAGE ADDRESS
FLUSHING
OIL SCALE
1)
UV DYE
1)
DATABASE UPDATE
SERIAL NUMBER
EXPERT MODE
6.3 Repair
Input Menu
1. + <3>
2. Enter 5555.
3. Confirm with E.
CHANGE FILTER
CHANGE OIL
6.4 Vehicle and customer data
Input Menu 1 Menu 2
<Database>
STANDARD SPECS EUROPEAN DATABASE
USER SPECS SELECT MODEL :
DELETE MODEL :
ADD MODEL :
VEHICLE DATAS
6.5 Menu
Input Menu 1 Menu 2
<Menu>
PERFORMANCE TESTS
DIAGNOSTIC
TANK FILLING
TANK RECYCLING
ZEROING OIL SCALES
1)
REPORT MANAGEMENT PRINT REPORT
EXPORT DATA
DELETE DATA
6.6 Manual mode
Input Menu
<RECOVERY>
R Automatic emptying
R Extraction
R Oil drain
R Pressure test
SELECT PORTS
...
Input Menu
<VACUUM>
SET VACUUM TIME
...
Input Menu
<CHARGE>
SELECT PORTS
...
6.7 Automatic mode
Input Menu
<AUTOMATIC>
SELECT PORTS
...
6.8 Flush (optional)
Input Menu
<FLUSH>
SET VACUUM TIME
...
6.9 Enter
Input Menu
<ENTER>
Information on current filling
capacities of fresh and used
oil bottles and the internal
refrigerant cylinder
1)
Not supported for ACS 810 or without functionality
