Product description | ACS 810 | 7 | en
1 689 975 253 2021-01-26| Robert Bosch GmbH
5. Product description
5.1 Description of unit
5.1.1 Front view
7
8
9
FV_ACS810

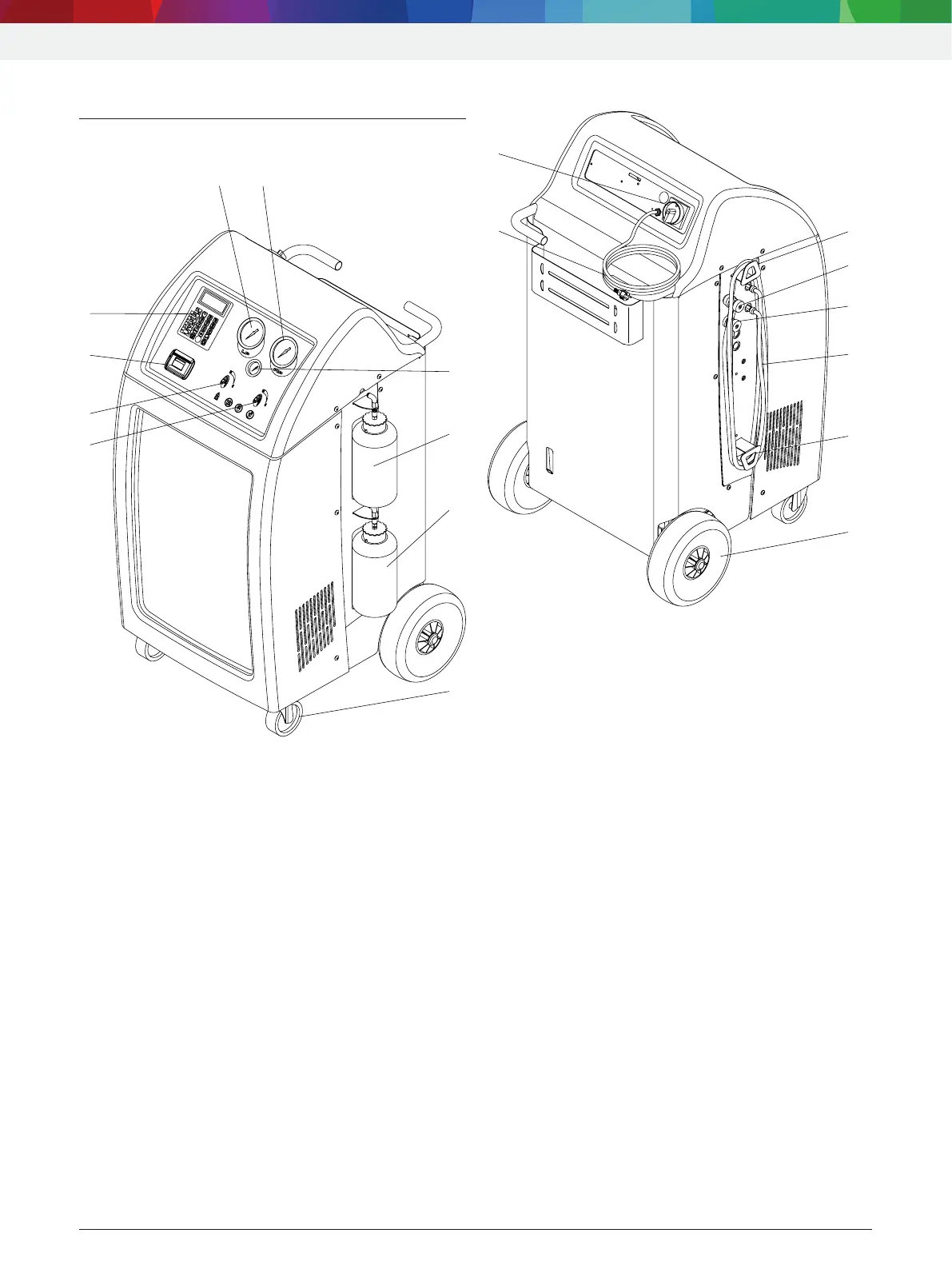

Fig. 1: Front view
1 Valve high pressure (HP)
2 Valve low pressure (LP)
3 Printer
4 Display and control panel
5 Gage low-pressure pressure (LP)
6 Gage high-pressure valve (HP)
7 Pressure gage of internal refrigerant cylinder
8 Fresh oil bottle
9 Used oil bottle
10 Front wheels with locking brake
i The high (6) and low pressure (5) gages show the
current pressure during the air conditioning service
on the vehicle. The small gage (7) is used to check
the bottle pressure in the internal refrigerant
cylinder.
i The two valve settings are labeled as follows:
$ C (Close) = valve is closed
$ O (Open) = valve is open
5.1.2 Rear view
4
1
2
3
4
5
Fig. 2: Rear view
1 Service quick-release coupling (LP)
2 Service quick-release coupling (HP)
3 Service hose (5 m)
4 Service hose mount
5 Rear wheels
6 Power cord (socket)
7 Master switch
