Bosch Rexroth ctrlX CORE User Manual

38 / 50
ctrlX CORE
Status displays
Bosch Rexroth AG
R911405645, Edition 05

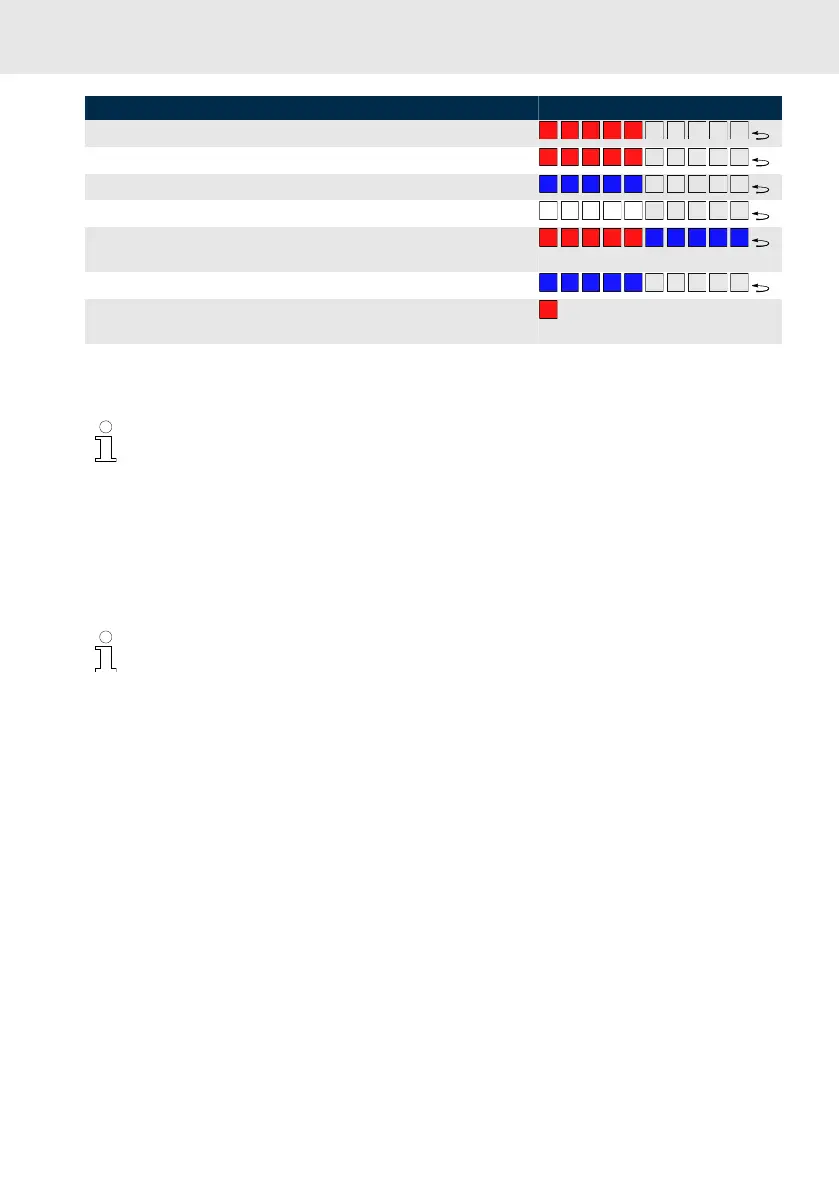

State Color
Errors (F0 – F7
①
) in the ctrlX CORE Runtime Flashing red
RD
RD
RD
RD
RD
--
--
--
--
--
App execution faulty Flashing red
RD
RD
RD
RD
RD
--
--
--
--
--
Service mode active Flashing blue
BU
BU
BU
BU
BU
--
--
--
--
--
Identification Flashing white
WH
WH
WH
WH
WH
--
--
--
--
--
The ctrlX CORE Rescue system is active Flashing red and
blue
RD
RD
RD
RD
RD
BU
BU
BU
BU
BU
Booting active or shut down Flashing blue
BU
BU
BU
BU
BU
--
--
--
--
--
System error (F8 and F9
①
) in the ctrlX CORE
Runtime
Red
RD
① For the error codes, refer to:
⮫ https://docs.automation.boschrexroth.com/doc/2331677038/main-diagnostics/latest/en/
−
One square corresponds to a period of 200 ms.
− The arrow represents the end of a cycle.
− --: LED is not on.
−
BU: LED is blue.
− GN: LED is green.
−
RD: LED is red.
− WH: LED is white.
− YE: LED is yellow.
A new status is only displayed when the previous flashing cycle elapsed. A change in status can
thus be delayed up to two seconds.
12.2.1 Status display at the power connector XD10 ctrlX CORE X2 and ctrlX CORE
X3
The voltage U
L
applied at the connecting points is signaled via a green LED next to the respective red
pusher.
Off = Voltage not present
On = Voltage present
12.2.2
Status display at the power connector XD10 ctrlX CORE
PLUS
The voltages U
L
and U
P
applied at the connecting points are signaled via an own green LED next to the
respective red pusher.
Off = Voltage not present
On = Voltage present
