Removing the memory card
Insert the memory card in the operating device until it engages. Remove the un-
locked memory card.
10 Assembly, Disassembly and Electrical Installation
10.1 Housing Dimensions
10.1.1 Front View
1
2
①, ② See the following table

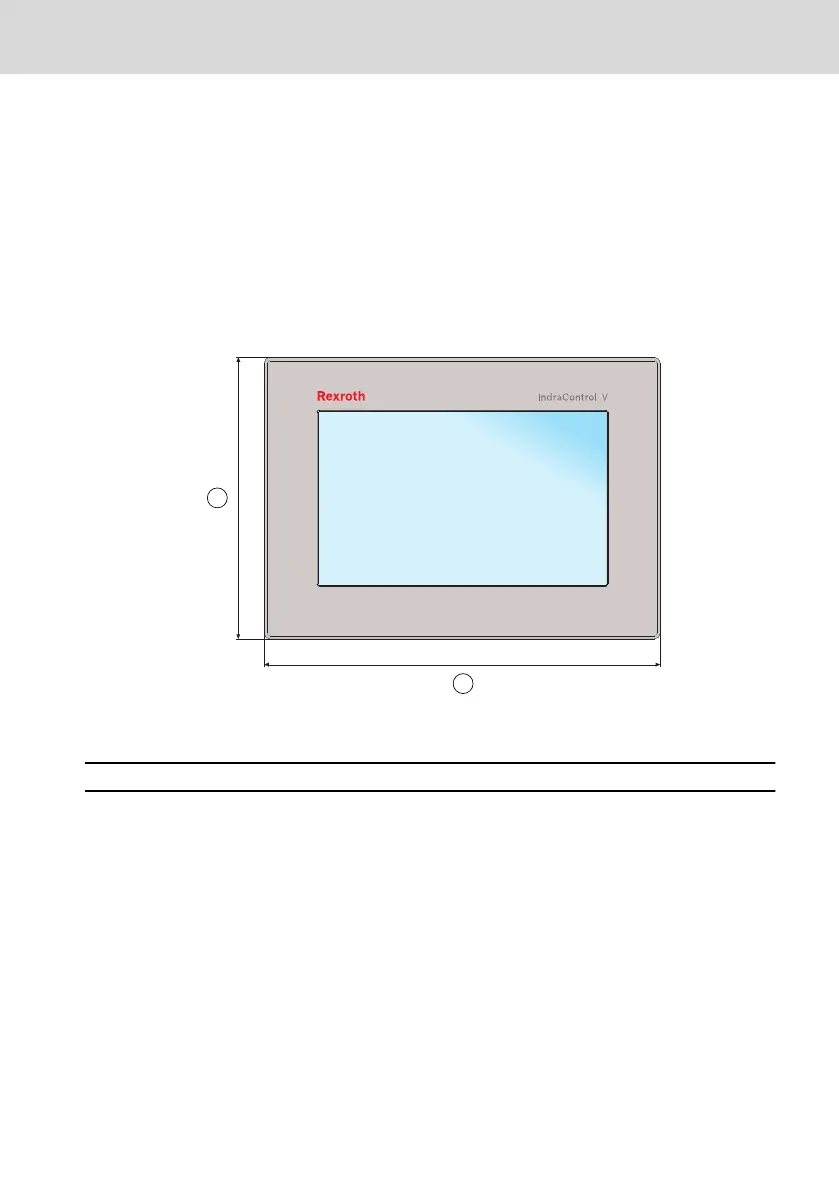

Fig. 10-1: IndraControl VR 21 front view
Device ①Height ②Width
VR2104 100 mm 140 mm
VR2107 150 mm 211 mm
VR2109 178 mm 263 mm
Tab. 10-1: Front dimensions
VR 21 Bosch Rexroth AG
Assembly, Disassembly and Electrical Installation
DOK-SUPPL*-VR21**.01**-IT02-EN-P
13/29
