Control Panel Codepad Introduction | en 7
Bosch Security Systems, Inc. User's Guide 2017.09 | 04 | F.01U.298.028

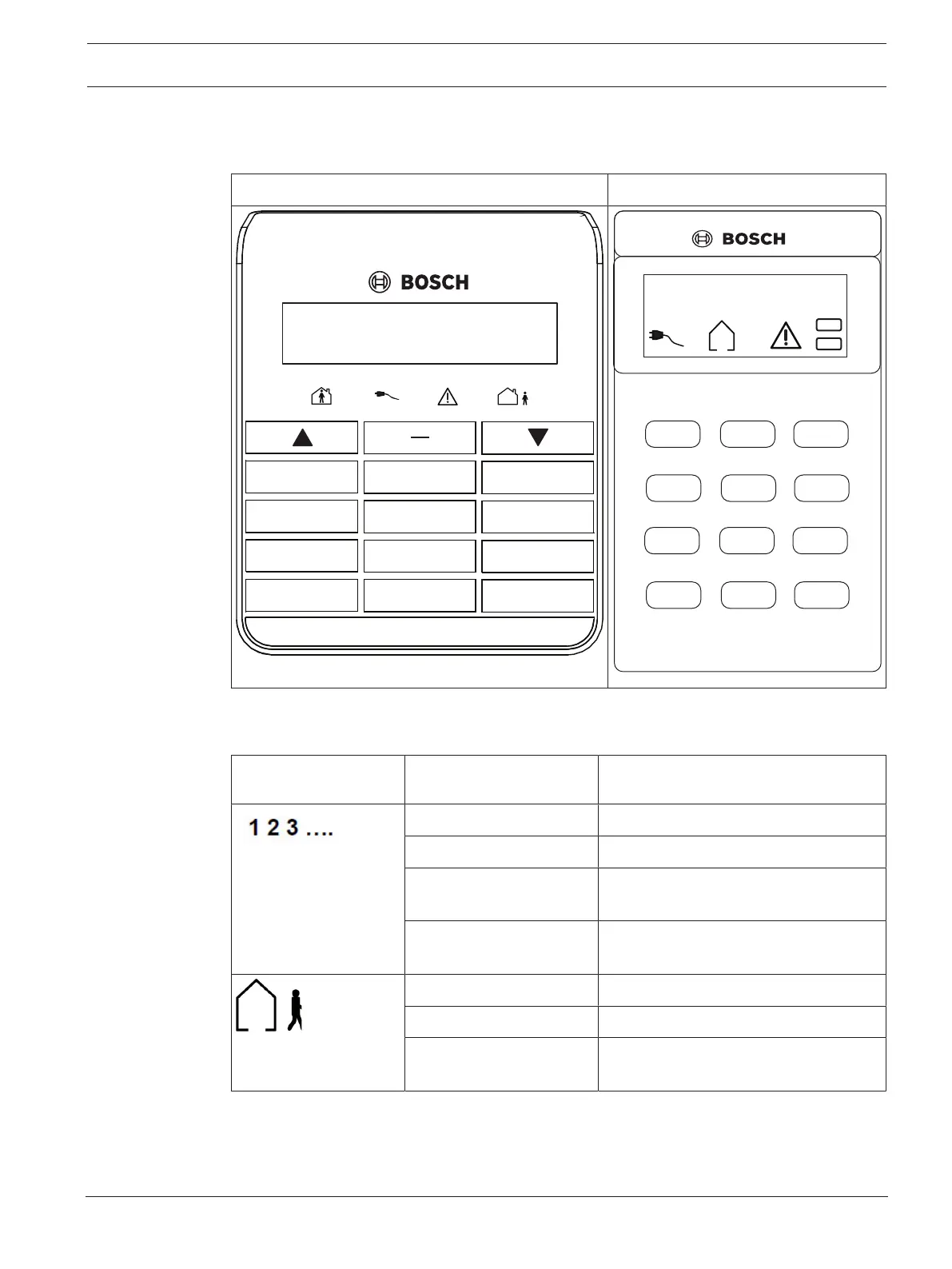

3 Codepad Introduction
3.1 Codepad
IUI – SOL -TEXT IUI – SOL – ICON
1
4
7
2
5
8
3
6
9
STAY
# AWAY
0
*
1 2 3 4 5 6 7 8
ON
OFF
3.2 Codepad Indicators
Codepad indicator
icons
Status Definition
ZONE 1 – 8 for
Solution 2000
ZONE 1 – 16 for
Solution 3000
On Zone is unsealed.
Off Zone is sealed.
Flashing Fast (0.25 sec
on/0.25 sec off)
Zone is in alarm condition.
Flashing Slow (1 sec on/1
sec off)
Zone is manually isolated or selected to
be isolated.
AWAY
On System is armed in AWAY Mode.
Off System is not armed in AWAY Mode.
Flashing twice a sec with
STAY indicator
Setting STAY Mode 2 bypass zones.
