Installation | 13US
6 720 646 951 (2011/09)Copyright
4.2.2 Recommended minimum clearances for
servicing
Should it be necessary to service the Tronic 5000C Pro,
observe the following clearances. These are not required
clearances, but would facilitate any service work.

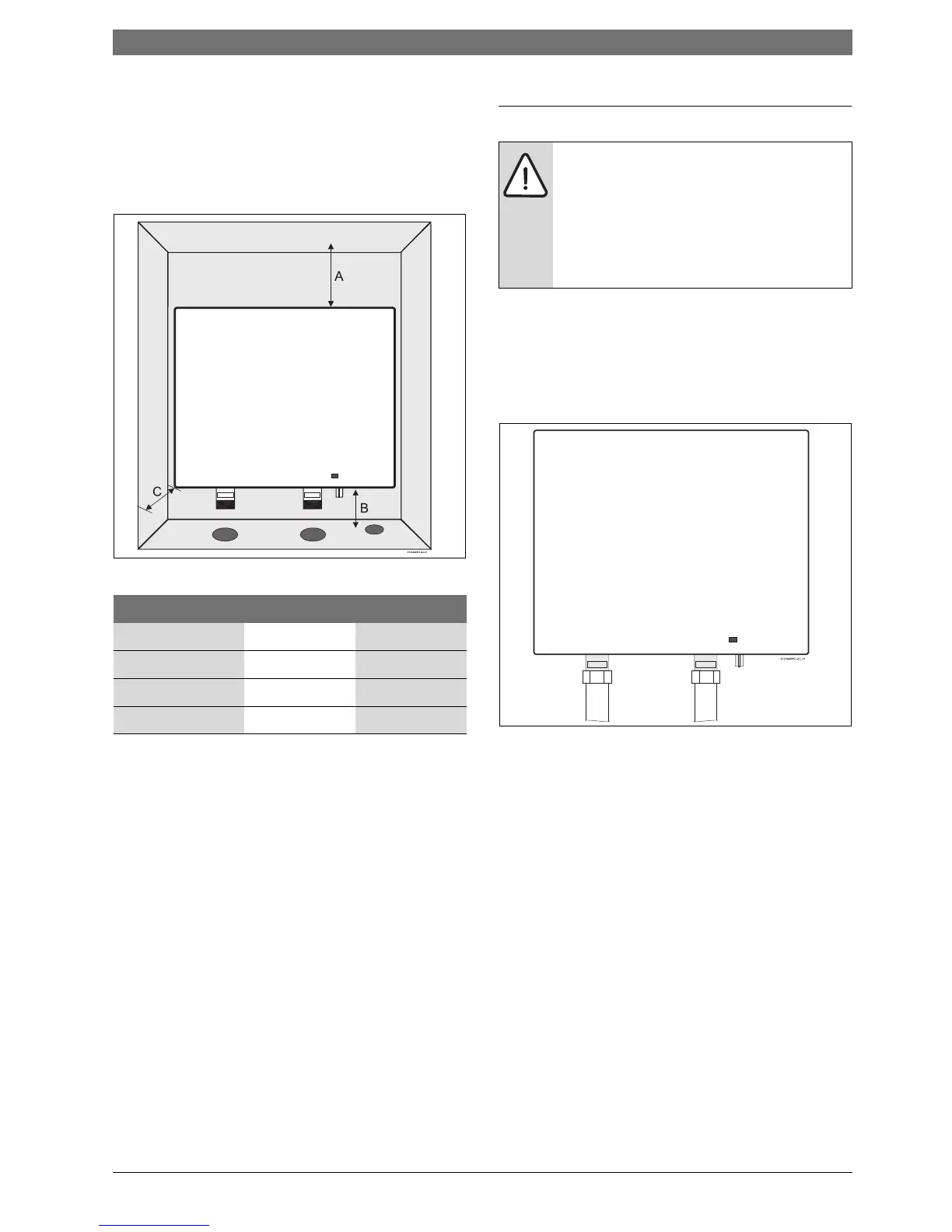

Fig. 5 Recommended minimum clearances
4.3 Mounting the water heater
B Undo the retaining screws on the front cover and take
the cover off the heater. Hold the back plate in
position against the wall and mark the four mounting
holes.
B Drill the holes and secure the heater using the four
wood screws supplied.
Fig. 6 Vertical mounting position
WH17 WH27
Top (A) 12" 12"
Sides 0" 0"
Bottom (B) 6" 6"
Front (C) 12" 12"
Tab. 6 Recommended minimum clearances
WARNING:
B The heater must only be installed in the
orientation shown in Fig. 6 i.e., mounted
in a vertical position with the water
fittings located at the bottom of the
heater. Under no circumstances should
the heater be mounted differently.
