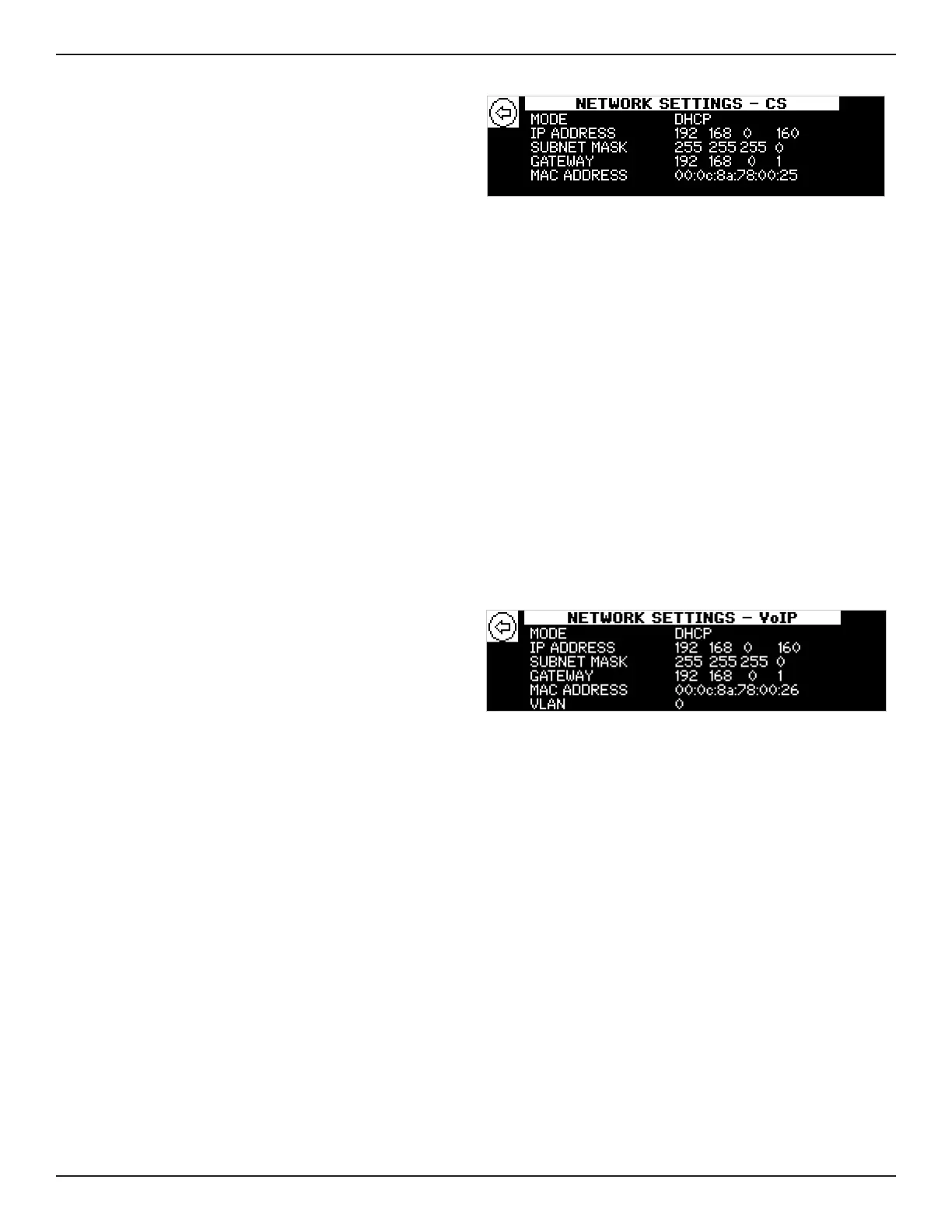

CONFIG > NETWORK SETTINGS – CS Page
The CS NETW SETTINGS page displays ControlSpace
network settings, some of which you can edit.
To select an setting, turn the knob until an arrow
appears next to the setting's name.
To edit the selected setting, press the knob.
To confirm the selected setting after editing it, press
the knob.
The ControlSpace network settings are:
MODE: The IP mode, which you can set to DHCP or
STATIC.
IP ADDRESS: The processor's IP address, which
you can set by address block. Turn the knob to
move between the four address blocks.
SUBNET MASK: The processor's subnet mask
address, which you can set by address block. Turn
the knob to move between the four address blocks.
GATEWAY: The processor's gateway address,
which you can set by address block. Turn the knob
to move between the four address blocks.
MAC ADDRESS: The processor's MAC address. You
cannot edit this setting.
CONFIG > NETWORK SETTINGS – VoIP Page
The VoIP NETW SETTINGS page displays VoIP network
settings, some of which you can edit. This is available
on the EX-440C and EX-1280C only.
To select an setting, turn the knob until an arrow
appears next to the setting's name.
To edit the selected setting, press the knob.
To confirm the selected setting after editing it, press
the knob.
The VoIP network settings are:
MODE: The IP mode, which you can set to DHCP or
STATIC.
IP ADDRESS: The IP address of the processor's
VoIP card, which you can set by address block. Turn
the knob to move between the four address blocks.
SUBNET MASK: The subnet mask address of
the processor's VoIP card, which you can set by
address block. Turn the knob to move between the
four address blocks.
GATEWAY: The gateway address of the processor's
VoIP card, which you can set by address block. Turn
the knob to move between the four address blocks.
MAC ADDRESS: The MAC address of the
processor's VoIP card. You cannot edit this setting.
VLAN: The optional VLAN number.

Bose ControlSpace EX-1280 Specifications

General

Frequency range	18 - 20000 Hz
Channels quantity	20 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
LED indicators	Power
Audio input	3.81 mm detachable Euroblock, 6-pin
RS-232 ports	1
USB connector type	Micro-USB B, USB Type-A
Standard interfaces	USB
Ethernet LAN (RJ-45) ports	3
Microphone included	No
DC input voltage	230 V
Power consumption (typical)	35 W
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	282 mm
Width	483 mm
Height	44 mm
Weight	3200 g
