CONFIG > Dante Info Page

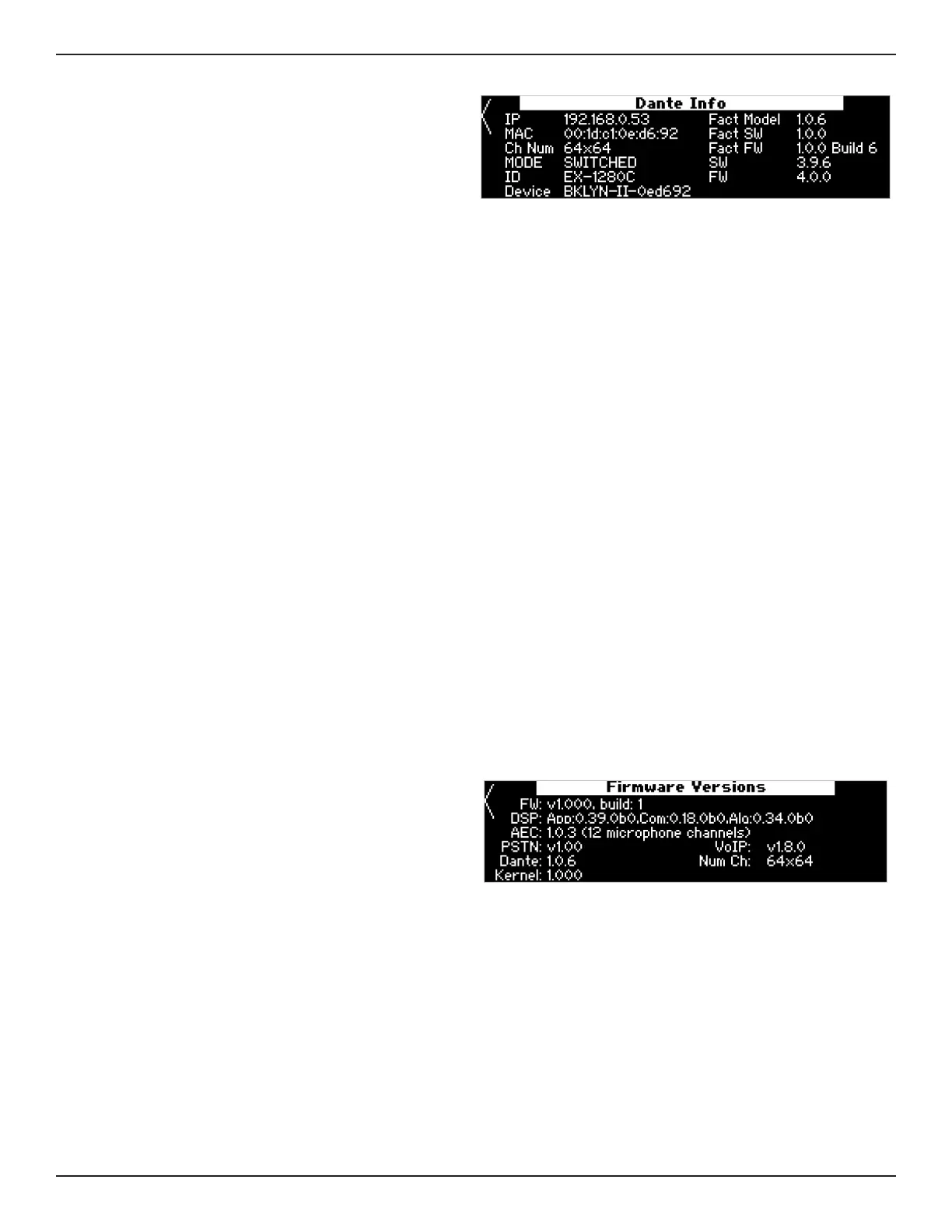

The Dante Info page displays settings that correspond
to what is displayed in the Dante controller software.
You cannot edit these settings.
The settings are:
IP: The IP address of the processor's Dante card.
MAC ADDRESS: The MAC address of the
processor's VoIP card.
Ch Num: The number of available Dante channels
(inputs × outputs).
MODE: The current Dante device network
configuration. You can use ControlSpace Designer
to set this to SWITCHED, LEGACY, REDUNDANT,
or ISOLATED. See the help system for
ControlSpace Designer to learn about these modes.
ID: The name of the product.
Device: The assigned name of the Dante device.
You can use ControlSpace Designer or the Dante
controller to set this name.
Fact Model: The version number of the processor's
boot ROM.
Fact SW: The version number of the processor's
Bose software.
Fact FW: The version number of the processor's
Bose firmware.
SW: The version number of the processor's
Audinate Dante software.
FW: The version number of the processor's
Audinate Dante firmware.
CONFIG > Firmware Versions Page
The Firmware Versions page displays the version
numbers of the software and/or firmware for these
components of the processor:
FW: The processor's firmware.
DSP: The processor's software that manages its
digital signal processing.
AEC: The processor's software that manages its
acoustic echo cancellation (EX-440C, EX-1280C,
and EX-12AEC only).
PSTN: The processor's software that manages its
PSTN functions (EX-440C and EX-1280C only).
Dante: The processor's software that manages its
Dante network functions.
Kernel: The processor's operating system kernel.
VoIP: The processor's software that manages its
VoIP functions (EX-440C and EX-1280C only).
Num Ch: The number of available Dante channels
(inputs × outputs).

Bose ControlSpace EX-1280 Specifications

General

Frequency range	18 - 20000 Hz
Channels quantity	20 channels
Product color	Black
Rack capacity	1U
Rack mounting	Yes
LED indicators	Power
Audio input	3.81 mm detachable Euroblock, 6-pin
RS-232 ports	1
USB connector type	Micro-USB B, USB Type-A
Standard interfaces	USB
Ethernet LAN (RJ-45) ports	3
Microphone included	No
DC input voltage	230 V
Power consumption (typical)	35 W
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	282 mm
Width	483 mm
Height	44 mm
Weight	3200 g
