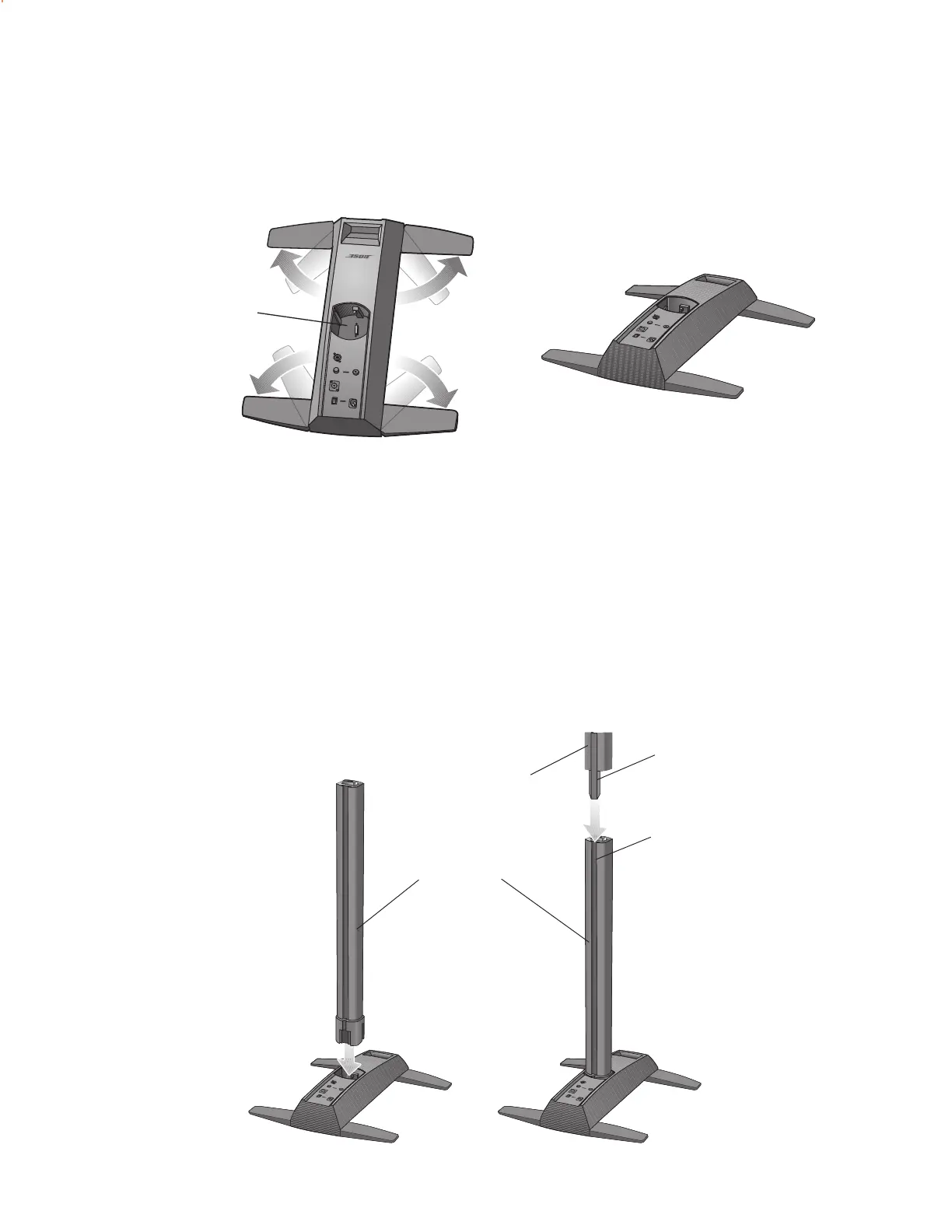

1. Holding the power stand vertically on the floor (Figure A), grasp one leg and swing it out
as far as it will go. Notice that the other legs swing out automatically. The legs must be fully
open before you can plug the L1 Cylindrical Radiator
®
bottom section into the power
stand.
2. Lay the power stand flat on the floor in the desired position (Figure B).
WARNING: DO NOT move the completely assembled system as a unit. This could result in
personal injury and/or damage to the product. Position the power stand on the floor in the
chosen location before assembling the system.
Assembling the L1 model 1S Cylindrical Radiator
®
loudspeaker
Note: If you plan to mount the T1 ToneMatch
®
audio engine on the L1 model 1S system, see
“Adding a T1 ToneMatch audio engine” before installing the top section of the loudspeaker.
1. Hold the L1 bottom so that the grille faces front and plug it into the power stand (Figure A).
Be sure to fully insert it into the socket to assure stability and a good connection.
2. Align the bayonet on the L1 top with the channel on the back of the L1 bottom, and lower
the L1 top onto the L1 bottom until it is flush (Figure B).
Setting up the L1
®
model 1S power stand
A
B
Socket for
L1 bottom
Top
array
Bottom
extension
Bayonet
Channel
A
B
Front of
system
