See the Maintenance/Lubrication Schedule for recommended applications per number of cycles.
Maintenance and Lubrication

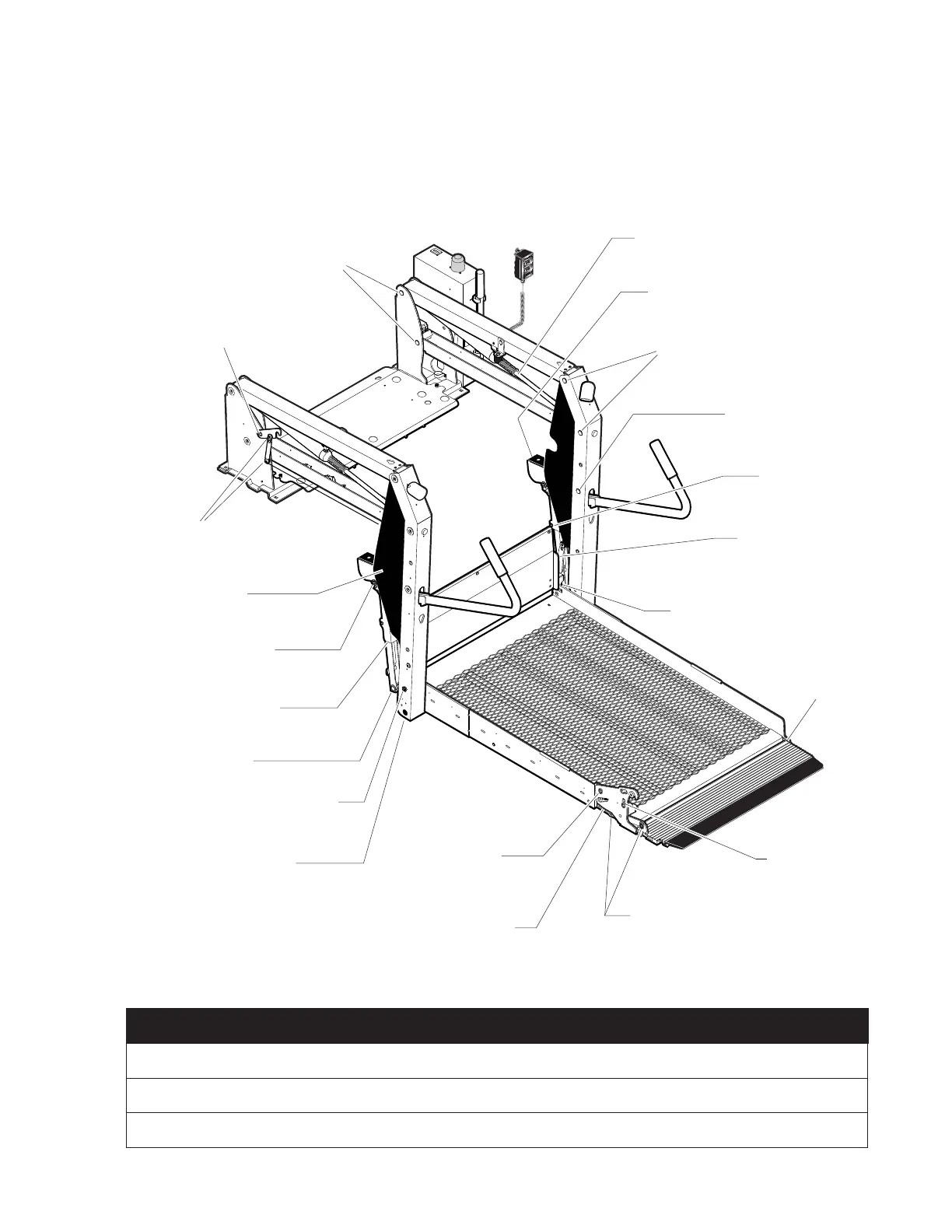

Lubrication Diagram
Handrail Pivot Pin
Bearings (4)
LO
Parallel Arm
Pivot Pin Bearings (16)
LO
Lift-Tite
™
Latches
(Tower Pivot Points - 2)
LO
Lift-Tite
™
Latch Dampening
Spring (2 springs - 4 Points)
LO
Parallel Arm
Pivot Pin Bearings (16)
LO
Inner Roll Stop
Pivot Bearings (2)
LO
Outer Barrier
Pivot Bearings (2)
LO
Outer Barrier
Lever Bearings
LO
Outer Barrier
Latch Pivot
LO
Platform Pivot Pin
Bearings (4)
LO
Outer Fold Arm
Bearings (8)
LO
Saddle
Bearing (2)
DE
Inner Fold Arm
Cam Followers (4)
LO
Lift-Tite
™
Latch Rollers (2)
LO
Inner Roll Stop
Lever Bearings (2)
and Slots (2)
LO
Inner Fold Arm
Roller Pin
Bearings (4)
LO
Hydraulic Cylinder
Pivot Bushings (8)
LO
Saddle Support
Bearings (8)
LO
Outer Barrier
Lever Guide Slot
(Both Sides)
LG
Outer Barrier
Latch Slot
(Both Sides)
LG
Inner/Outer Fold Arm
Contact Area (2)
LG
6SHFLÀHGUHFRPPHQGHG $YDLODEOH %UDXQ
Lubricant Type Lubricant Amount Part No.
LO - Light Oil
LG - Light Grease
DE - Door-Ease
15807
15806
15805
Light Penetrating Oil
(30 Weight or equivalent)
LPS2, General Purpose
Penetrating Oil
16 oz.
Aerosol Can
Stainless Stick
Style (tube)
Door-Ease
Stick (tube)
1.68 oz.
Light Grease
(Multipurpose)
Lubriplate
14 oz.
Can
