Page 17

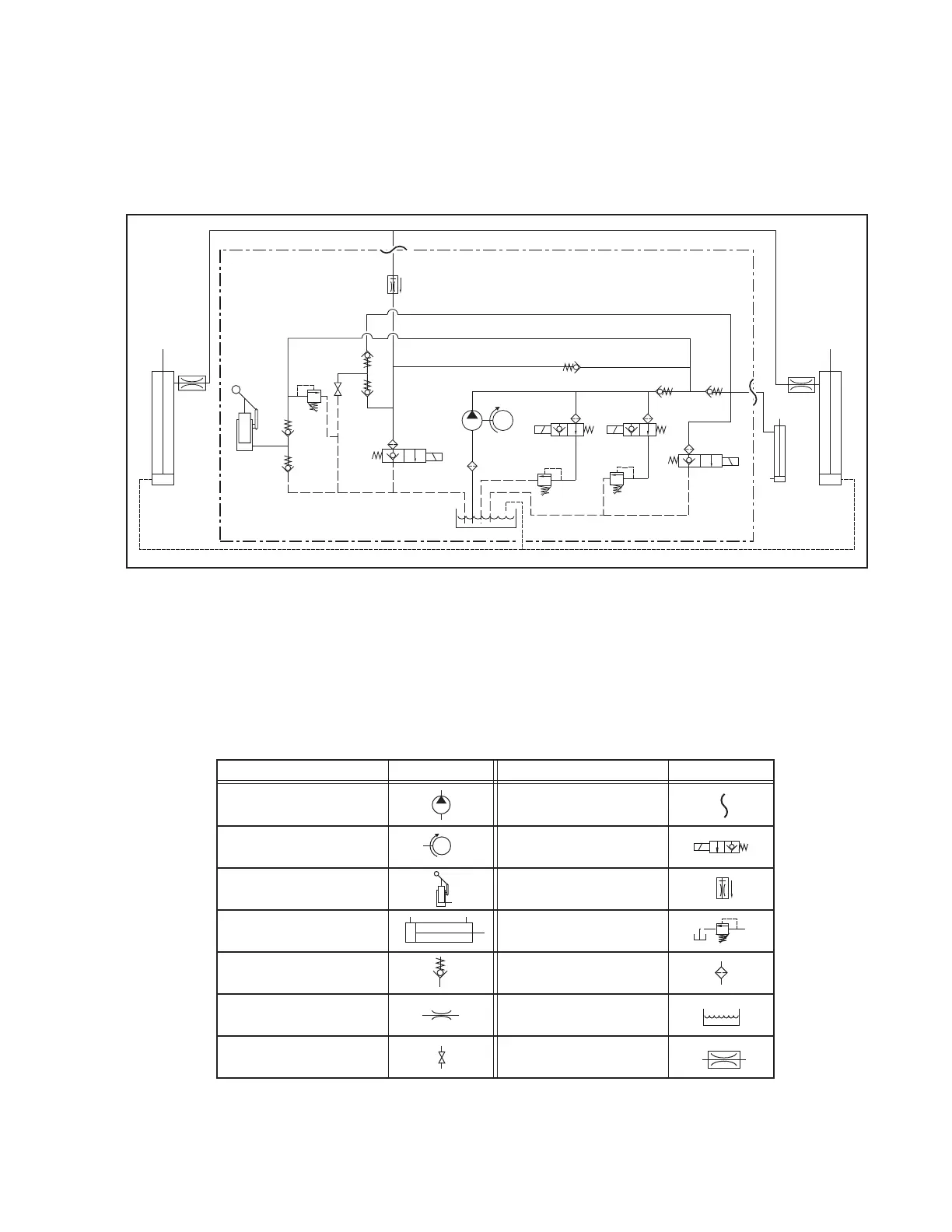

Hydraulic Schematic
Outer Barrier
Cylinder
Orifice
Pump Side
Cylinder
BACKUP
PUMP
Platform
Fold Relief
Solenoid Valve
Fold Relief
Valve
Down
Valve
PUMP
Opposite
Pump
Cylinder
M
Orifice
1000
PSI
.50 GPM
Roll Stop Down
Solenoid Valve
Outer Barrier
Fold Relief
Solenoid Valve
Outer Barrier
Relief Valve
200
PSI
Main Relief
Valve
2500
PSI
Fixed Displacement
Pump
Vented Reservoir
Orifice
Backup Pump
Single Acting Cylinder
Check Valve
Manual
Shutoff Valve
2 Way 2 Position
Solenoid Valve
Pressure Compensated
Flow Control
Relief Valve
Description Symbol Description Symbol
Filter Screen
Unfold Orifice
M
Pump Motor
Hydraulic Port
