Page 18

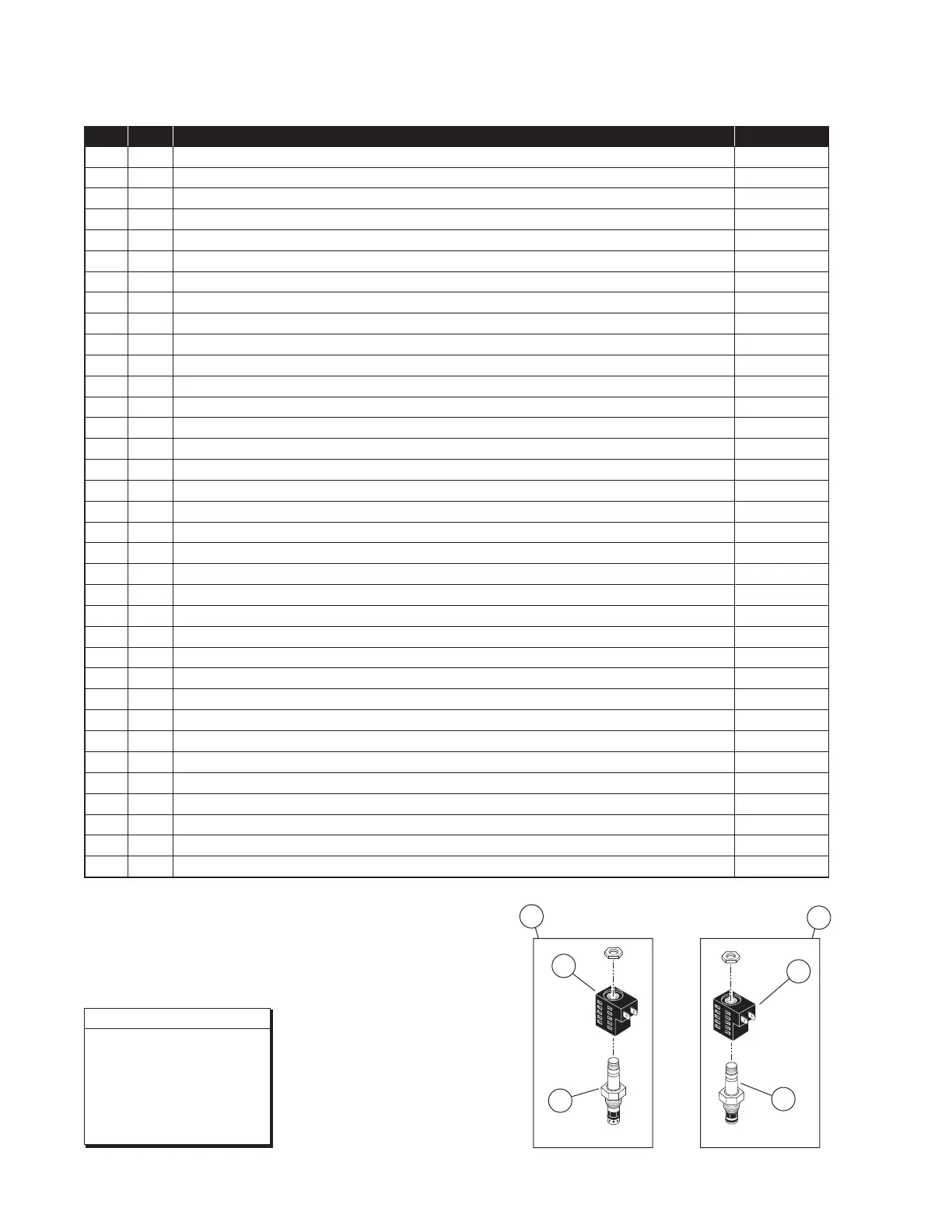

Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M-268-0117) 120G / 12V / Triple Relief 34330-12V
2 1 Clamp, Reservoir - H-48 (M259) 17069
3 1 Solenoid, 4-Post Trombetta - Angle 35310
4 1 Motor, Pump - 12 Volt - Low RPM 31350
5 2 Valve Assembly, “Outer Barrier Fold Relief and Fold Relief” (complete) 31120K
6 2 Cartridge (only), “Outer Barrier Fold Relief and Fold Relief” Valve - (shown below) 31121
7 4 Coil (only) - (shown below) 31122
8 2 Valve Assembly, “Outer Barrier Down and Down” (complete) 31348K
9 2 Cartridge (only), “Outer Barrier Down and Down” Valve - (shown below) 26078
10 1 Diode Assembly, Up Solenoid 73906A
11 1 Clamp, Hose - Solenoid Mounting 29663
12 1 Reservoir, Hydraulic Fluid 30160
13 1 Cap, Reservoir Filler - Screw On 30167
14 1
Fitting, 90° - 1/8" NPT x 1/8" Barb - Plastic 87563
15 1 Connector, Plastic “Y”, 1/8” O.D. 18877
16 1 Hose, Thermal Plastic - Black, 1/8" I.D.
23742R*
17 1 Handle with Grip 17206A
18 2 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
19 1 Elbow, 7/16-20 JIC 37 Female Swivel (1) - 7/16-20 JIC 37° Male (2) 26579
20 1 Hose Assembly, 1/8" (Opposite-Pump-Side) 16004A-086
21 1 Hose Assembly, 1/8" (Pump-Side) 16004A-046
22 2 Elbow, 90°, 7/16-20 SAE O-Ring Male - 7/16-20 JIC 37° Male, Orifice 26667
23 2 Cylinder ✓
C1514.3-0408N
24 2 Elbow, 90°, 1/4 NPT Male to 1/4" Barbed 15150
25 1 Cylinder, Rollstop w/Breather Vent (Includes Items 26-29) 33094A
26 1 Fitting, 90° - Male 7/16-20 SAE O-Ring to Male 7/16-20 JIC 37° 25085
27 1 Plug, Drain w/Gasket 35679
28 1 Nut, 1/2-20 Hex Jam 83022
29 1 Adapter, Cylinder - Roll Stop Lever 947-0344N
30 1 (Rear Pump) Hose Assembly, 139" x 3/16" Dia. w/Two Guards
915-2601-139
1 (Front Pump) Hose Assembly, 183-1" x 3/16" Dia. w/Two Guards
915-2603-183-1
31 1 Kit, Hydraulic Port Service Cap 27049K
✓ Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
* Raw material items ordered and priced per inch (order specified length).
6
Cartridge
#31121
7
Coil
#31122
“Outer Barrier Fold Relief
and Fold Relief” Valve
(complete)
5
9
Cartridge
#26078
7
Coil
#31122
“Outer Barrier Down
and Down” Valve
(complete)
8
Hydraulic Fluid
When adding or changing
hydraulic fluid, use Braun
32840-QT (Exxon
®
Univis
HVI 26) hydraulic fluid (do
not mix with Dextron III or
other hydraulic fluids).
