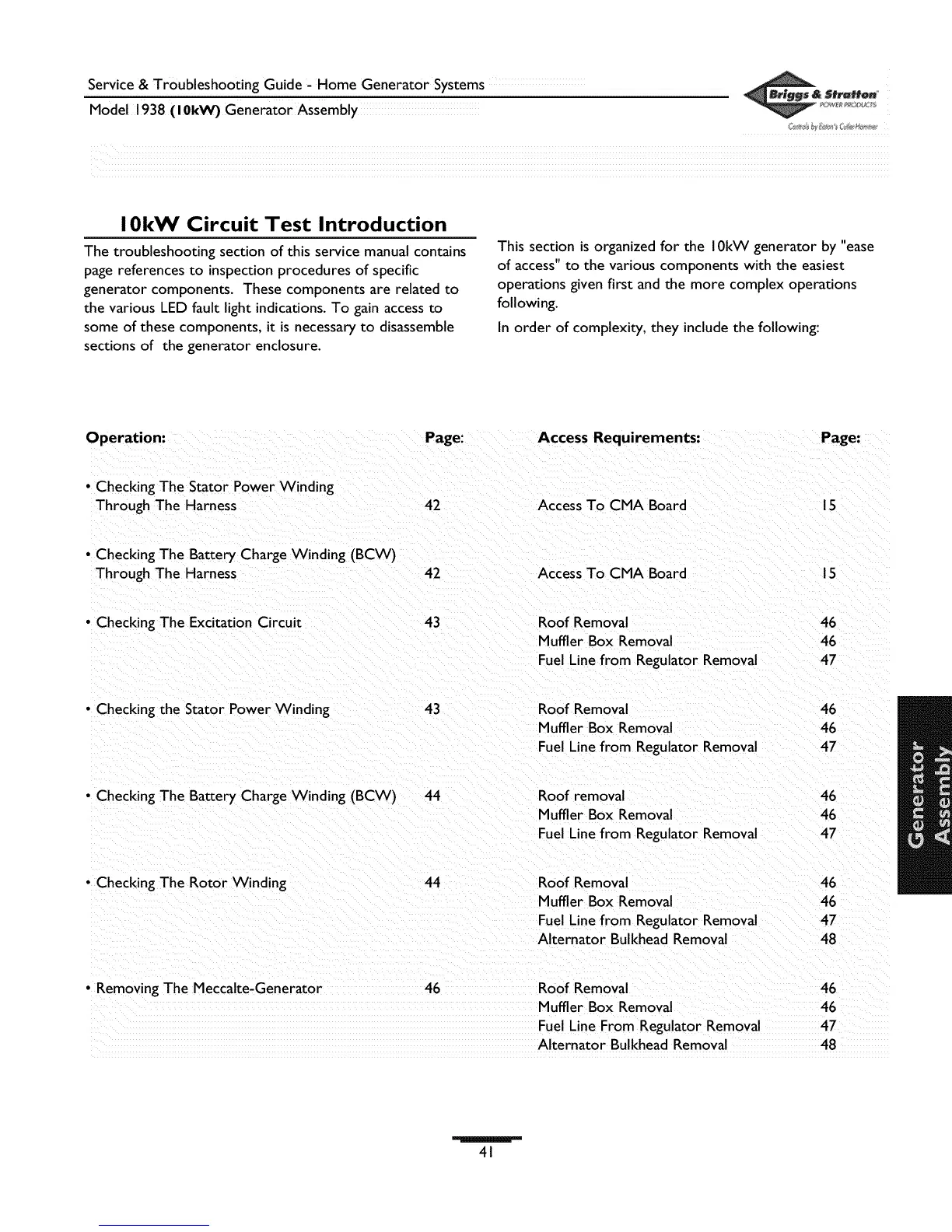

Service& TroubleshootingGuideHomeGeneratorSystems
Model1938(10kW)GeneratorAssembly
I OkW Circuit Test Introduction
The troubleshooting section of this service manual contains
page references to inspection procedures of specific
generator components. These components are related to
the various LED fault light indications. To gain access to
some of these components, it is necessary to disassemble
sections of the generator enclosure.
This section is organized for the 10kW generator by "ease
of access" to the various components with the easiest
operations given first and the more complex operations
following.
In order of complexity, they include the following:
Operation: Page: Access Requirements: Page:
• Checking The Stator Power Winding
Through The Harness 42
Access To CMA Board 15
• Checking The Battery Charge Winding (BCW)
Through The Harness
42 Access To CMA Board 15
• Checking The Excitation Circuit 43 Roof Removal 46
Muffler Box Removal 46
Fuel Line from Regulator Removal 47
• Checking the Stator Power Winding 43
Roof Removal 46
Muffler Box Removal 46
Fuel Line from Regulator Removal 47
• Checking The Battery Charge Winding (BCW) 44
Roof removal
Muffler Box Removal
Fuel Line from Regulator Removal
46
46
47
• Checking The Rotor Winding 44
Roof Removal 46
Muffler Box Removal 46
Fuel Line from Regulator Removal 47
Alternator Bulkhead Removal 48
• Removing The Meccalte-Generator 46
Roof Removal 46
Muffler Box Removal 46
Fuel Line From Regulator Removal 47
Alternator Bulkhead Removal 48
41
