& S_a_on Service & Troubleshooting Guide ' Home Generator Systems
_ Model 1938 (I 0kW) Generator Assembly

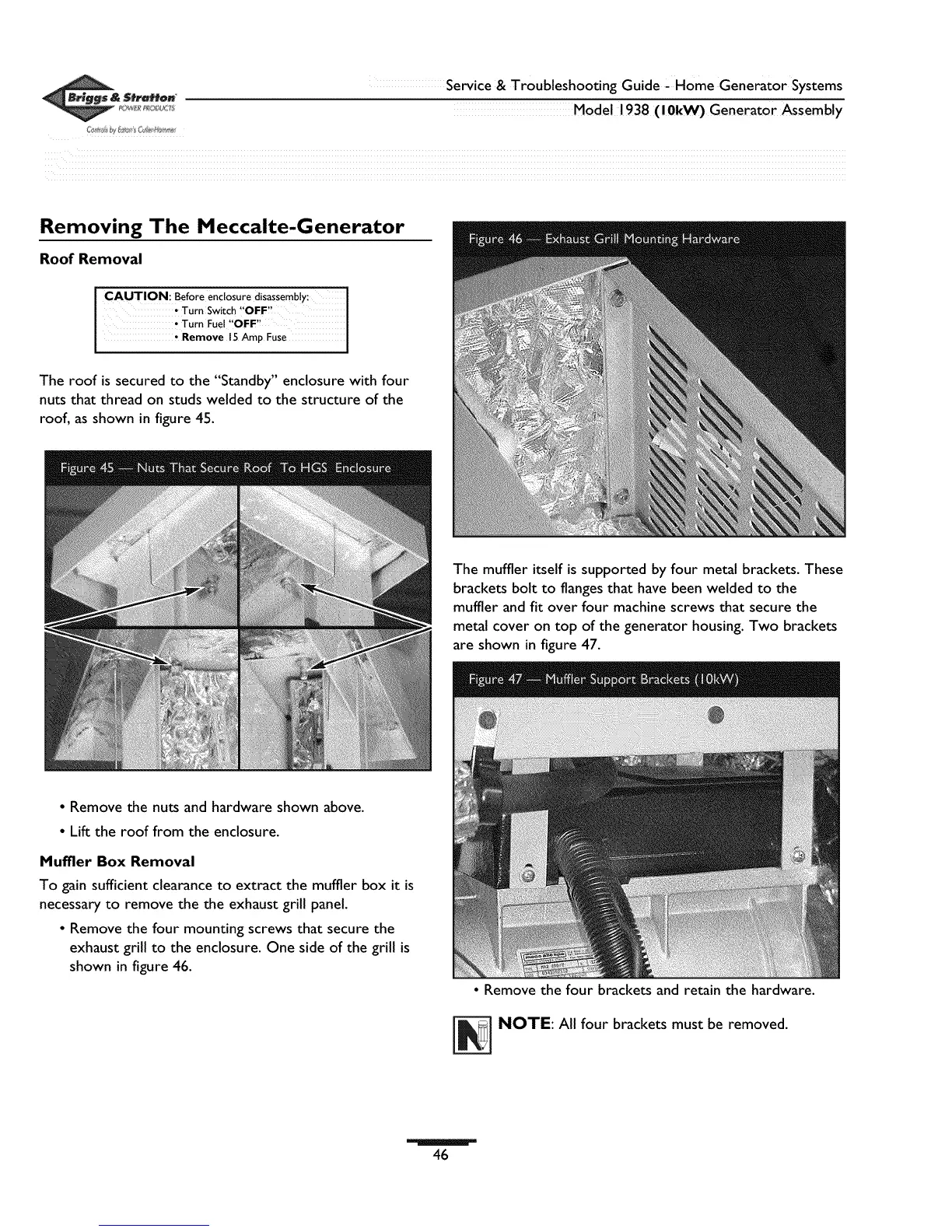

Removing The Meccalte-Generator
Roof Removal
CAUTION: Before enclosure disassembly:
' Turn Switch "OFF!!
• Turn Fuel ,OFF,
,Remove 5 Amp Fuse
The roof is secured to the "Standby" enclosure with four
nuts that thread on studs welded to the structure of the
roof, as shown in figure 45.
The muffler itself is supported by four metal brackets. These
brackets bolt to flanges that have been welded to the
muffler and fit over four machine screws that secure the
metal cover on top of the generator housing. Two brackets
are shown in figure 47.
• Remove the nuts and hardware shown above.
• Lift the roof from the enclosure.
Muffler Box Removal
To gain sufficient clearance to extract the muffler box it is
necessary to remove the the exhaust grill panel.
• Remove the four mounting screws that secure the
exhaust grill to the enclosure. One side of the grill is
shown in figure 46.
• Remove the four brackets and retain the hardware.
NOTE: All four brackets must be removed.
46
