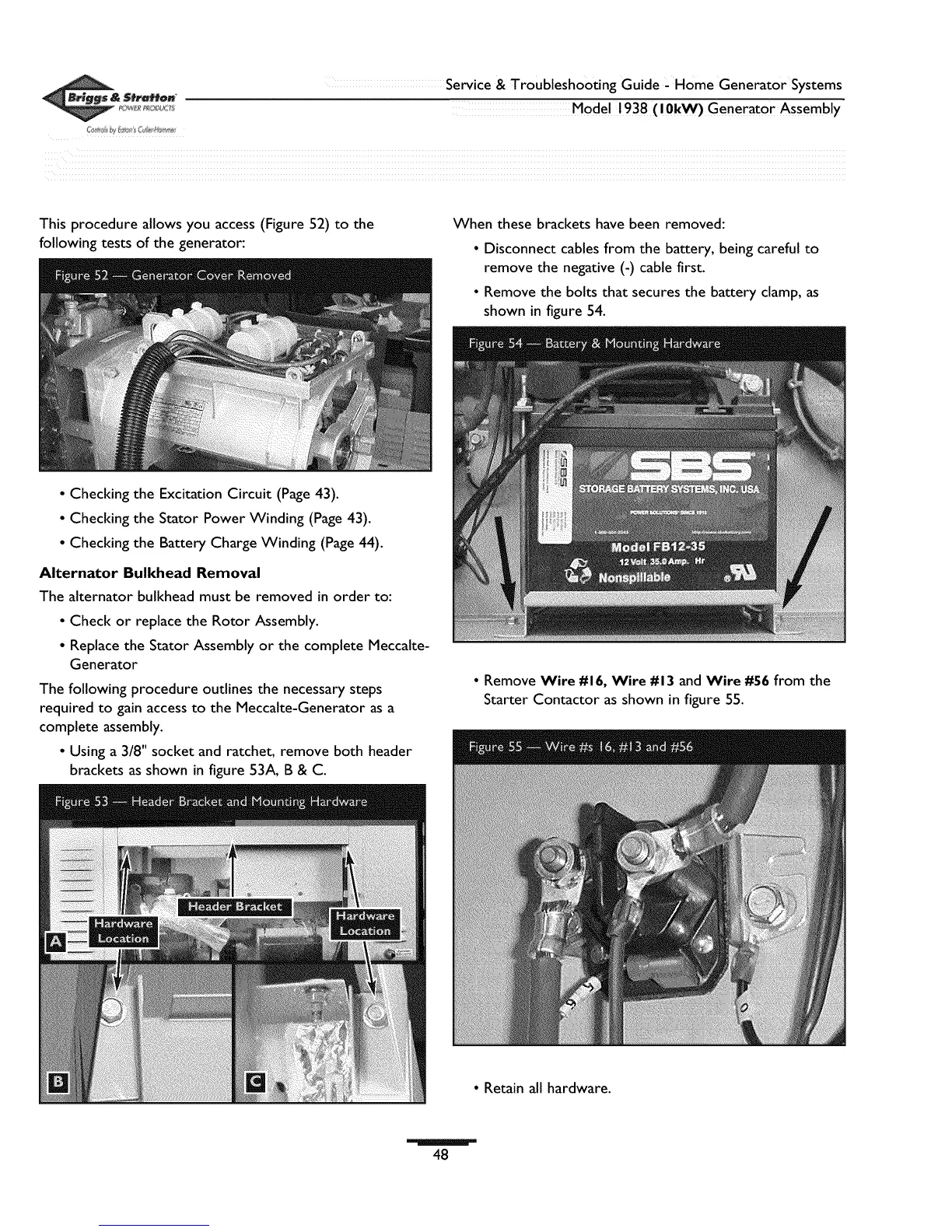

_& S_a_on Service &Troubleshooting Guide ' Home Generator Systems
_'_'_ Model 1938 (lOkW) Generat0r Assembly
This procedure allows you access (Figure 52) to the
following tests of the generator:
When these brackets have been removed:
• Disconnect cables from the battery, being careful to
remove the negative (-) cable first.
• Remove the bolts that secures the battery clamp, as
shown in figure 54.
• Checking the Excitation Circuit (Page 43).
• Checking the Stator Power Winding (Page 43).
• Checking the Battery Charge Winding (Page 44).
Alternator Bulkhead Removal
The alternator bulkhead must be removed in order to:
• Check or replace the Rotor Assembly.
• Replace the Stator Assembly or the complete Meccalte-
Generator
The following procedure outlines the necessary steps
required to gain access to the Meccalte-Generator as a
complete assembly.
• Using a 3/8" socket and ratchet, remove both header
brackets as shown in figure 53A, B & C.
• Remove Wire #16, Wire #13 and Wire #56 from the
Starter Contactor as shown in figure 55.
• Retain all hardware.
48
