Briggs & Stratton 1938 User Manual
4
of 1
of 1 rating
69 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
&
Stolon
Service
&
Troubleshooting
Guide
-
Home
Generator
Systems
'_
Model
1938
(10kW)
Appendix
Ne
O
o
o
o
O
0
Main
Distribution
Panel
Model

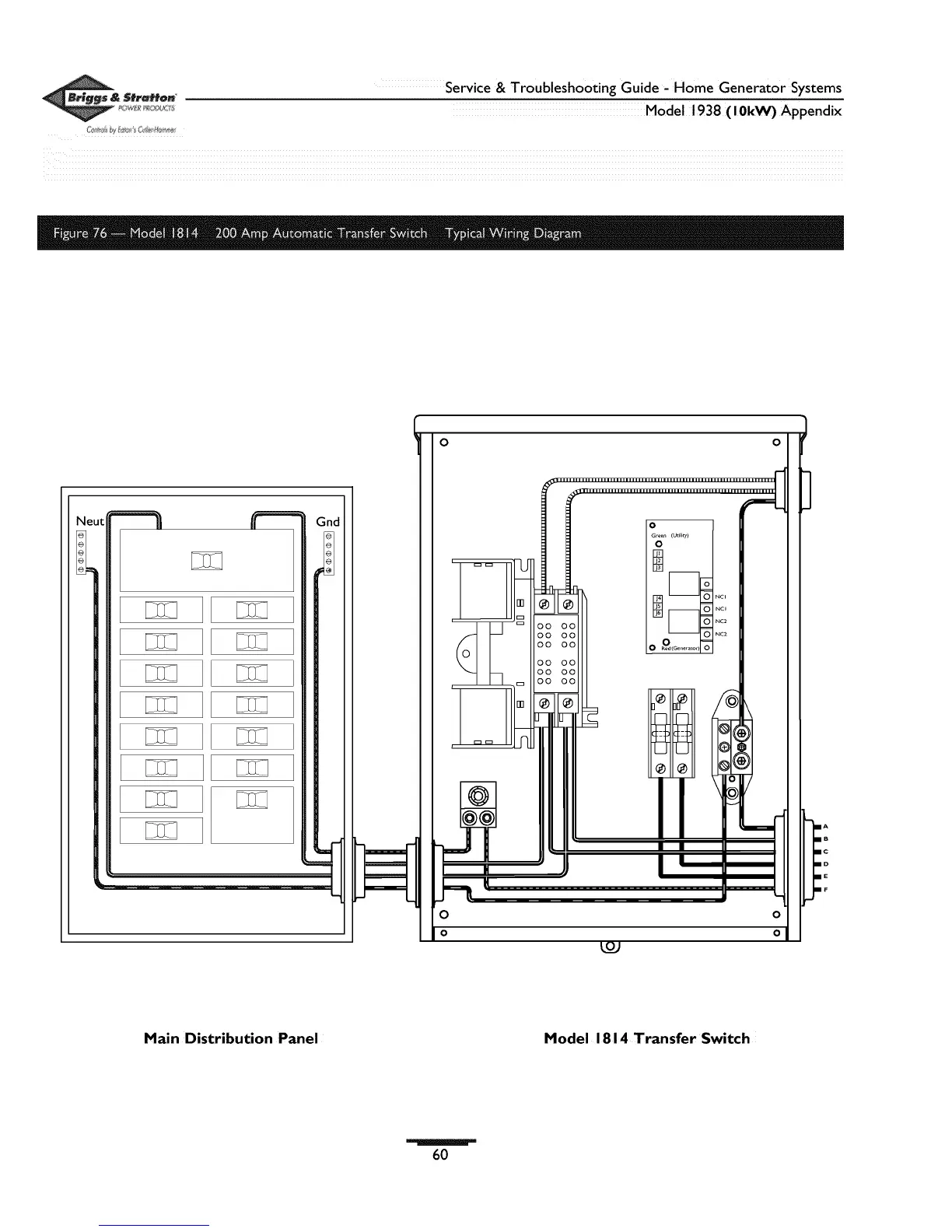

1814
Transfer
Switch
60
60
62
Table of Contents
Table of Contents
3
Safety Rules
6
In the Interest of Safety
6
Safety Practices
7
Utility Fail
13
Utility Voltage Pickup Sensor
13
Retransfer Time Delay
13
Engine Cool-Down Timer
13
Stopping the System
14
Generator Load Tests
14
Reconfiguring the Fuel System
15
Control Module Assembly (CMA)
16
Power During Fault Conditions
16
LED Fault Light Conditions
17
Supply
17
Module Connectors
18
Led Faults
21
Check Battery
21
Check the Step-Down Transformer
22
Access to the Generator
24
Low Voltage: (Three Blinks [ ° ° • ])
24
Troubleshooting Procedure
25
Engine Cranks but Fails to Start
26
Gas Regulator
27
Engine Fails to Crank
29
Check Ignition Spark
29
Low Frequency: (Five Blinks
30
Generator Assembly
36
Specifications
37
Engine
37
Engine Maintenance
38
Checking Oil Level
38
Changing Oil & Filter
38
Replacing the Spark Plugs
38
Service the Air Cleaner
39
Inspect Spark Arrester Screen
39
Engine Governed Speed
39
Valve Lash
39
Carburetor Adjustments
39
Engine Adjustment
40
I Okw Resistance Values
41
System Interconnections
41
10Kw Circuit Test Introduction
42
Generator Components
42
Checking the Stator Power Winding through the Harness
42
Checking the Stator Power Winding
43
Through the Harness
43
(BCW) through the Harness
43
Checking the Battery Charge Winding (BCW)
43
Checking the Excitation Circuit
44
Checking the Stator Power Winding
44
Winding (BCW)
45
Checking the Rotor Winding
45
Removing the Meccalte Generator
47
Roof Removal
47
Muffler Box Removal
47
Remove Fuel Line from Regulator
48
Alternator Bulkhead Removal
49
Removing the Generator
51
Blind End Cover Removal
51
Generator Isolation Mounts
51
Removing Stator Mounting Hardware
51
Removing Rotor Through-Bolt (Stay Shaft Bolt)
52
Removing the Rotor Assembly
53
Inspecting the Rotor Assembly
54
Appendix
56
CMA Schematic
57
Generator Wiring Diagram
58
Amp Wiring Diagram
59
Amp Wiring Diagram
61
Transfer Switch Schematic
65
Oil Heater
66
Volt Battery Warmer
68
