Brother ADS-1100W User Manual

General Information
3
1

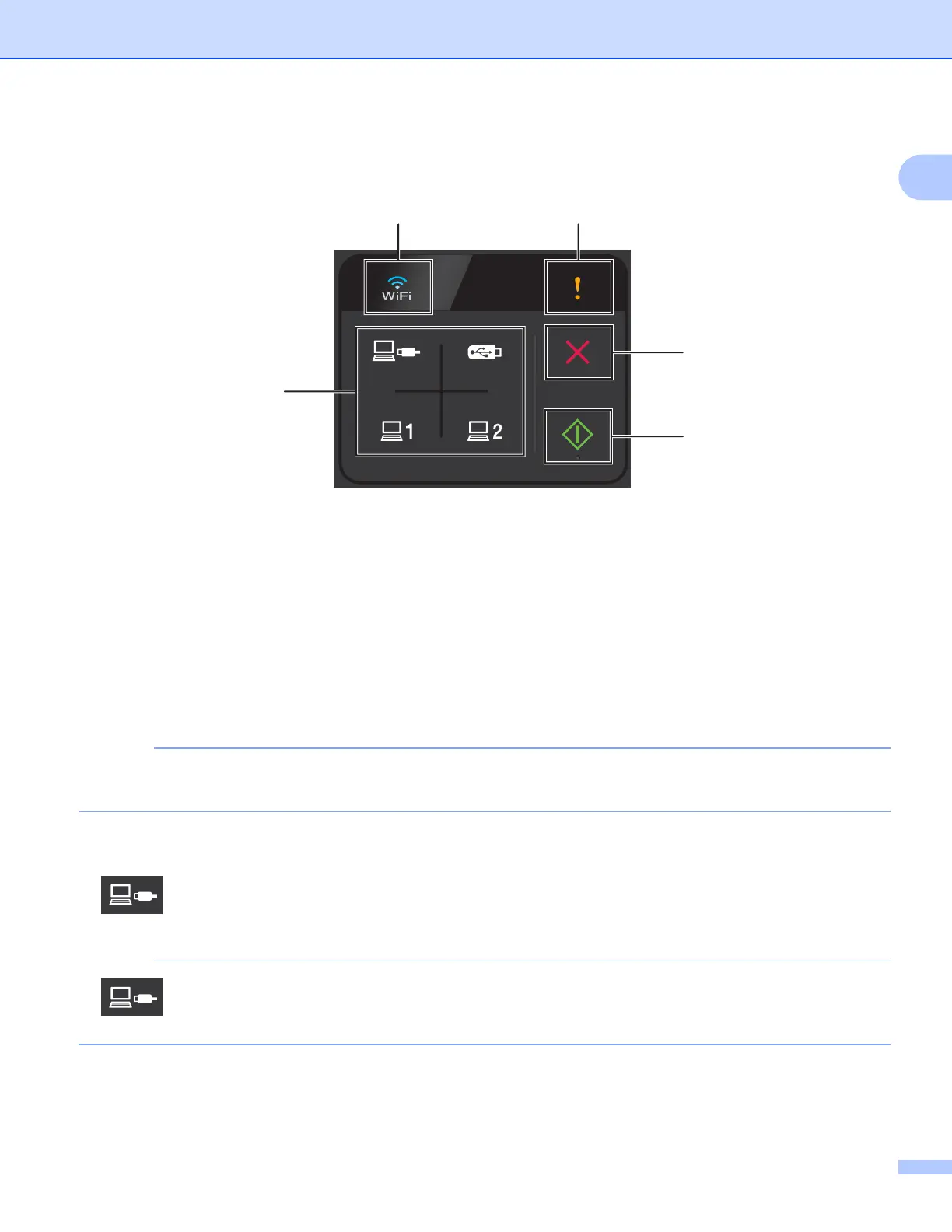

Control Panel Overview (ADS-1100W) 1
1WiFi
When WLAN is enabled, the WiFi light lights up.
2 Error Indicator
The Error Indicator will light up when an error has occured.
3 Stop Button
Press to stop or cancel. The Stop button does not light up when it is unavailable.
4Start Button
Press to start. You need to select a scan type by pressing one of the Scan buttons before pressing the
Start button. The Start button does not light up when it is unavailable.
NOTE
If you configure the Scan Priority settings (see Scan Priority (ADS-1100W only) on page 208) and the
Scan buttons are available, they will blink automatically.
5 Scan Buttons
Press to select a scan type. The Scan buttons will light up when they are available.
Press to select the Scan to PC (USB Connect) function.
NOTE
is only available when the machine was set up using the USB interface method (see the Quick
Setup Guide).
4
5
2
1
3

Brother ADS-1100W Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	210 x 297 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	16 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Black/white scanning color modes	Grayscale, Monochrome
Scanner type	ADF scanner
Product color	Black
Scan to	E-mail, FTP, Image, OCR, USB
Sensor type	Dual CIS
Scan drivers	ICA, ISIS, TWAIN, WIA
Internal memory	128 MB
Scan file formats	BMP, JPG, TIFF
Processor frequency	288 MHz
Scanning noise level	47 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	20 sheets
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
ISO B-series sizes (B0...B9)	B5, B6, B7
Scanning media types supported	Business Card, Plastic Card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 110 g/m²
USB version	2.0
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional
Power supply type	-
Power consumption (off)	0.25 W
Power consumption (standby)	4 W
Power consumption (typical)	14 W
Power consumption (PowerSave)	1.5 W
Package depth	170 mm
Package width	380 mm
Package height	207 mm
Package weight	2500 g
Mobile printing technologies	Brother iPrint & Scan
Custom media width	51 - 215.9 mm
Custom media length	70 - 297 mm

Weight and Dimensions

Depth	103 mm
Width	285 mm
Height	84 mm
Weight	1500 g
