Brother ADS-1100W User Manual

Appendix
217
B

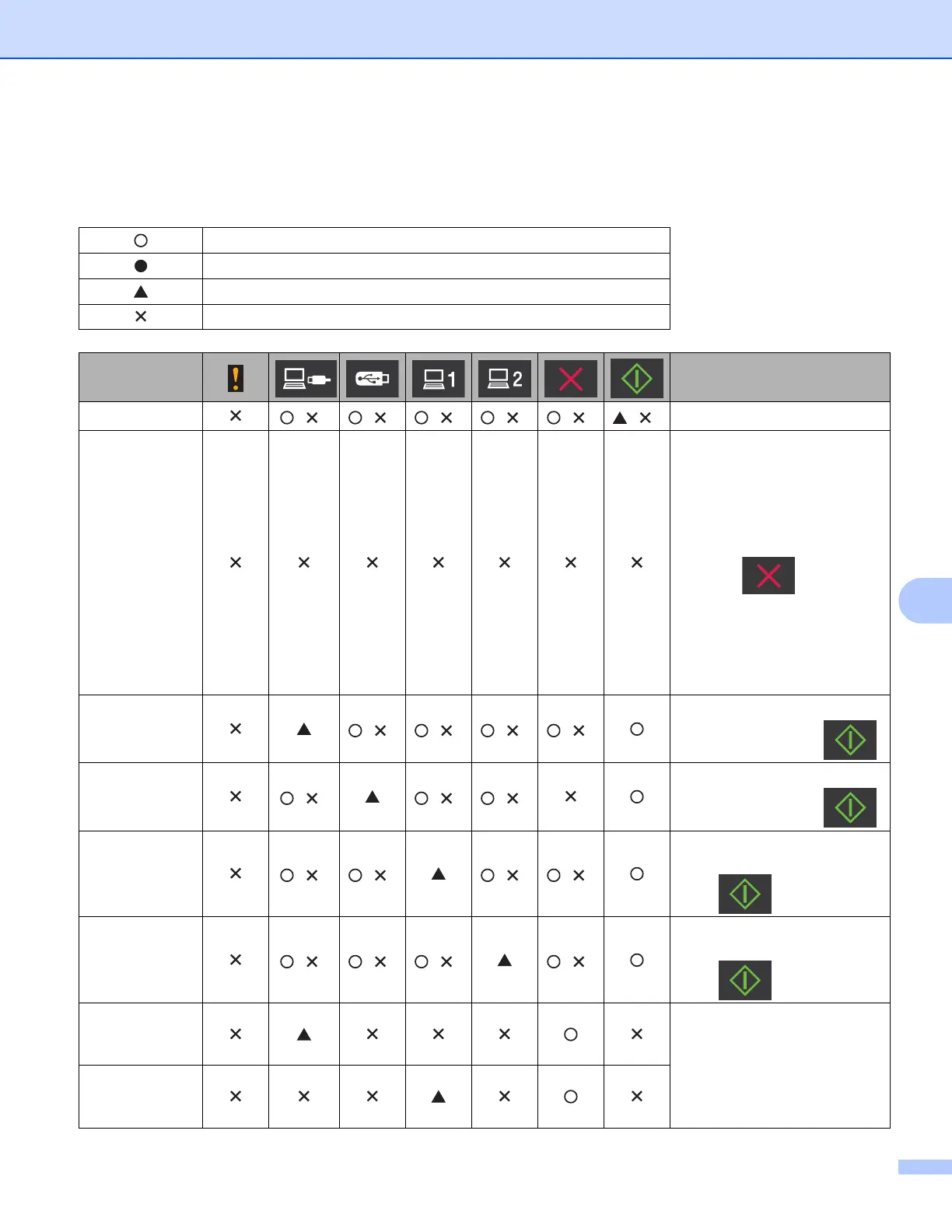

LED Indications (ADS-1100W only) B
The LED indications shown in the table below are used in the illustrations in this chapter
The LED is on.
The LED is blinking quickly.
The LED is blinking slowly.
The LED is off.
Status Descriptions
Ready
/
1
/
1
/
1
/
1
/
2
/
3
The machine is ready to scan.
Sleep Mode
The machine is in Sleep mode
(Power Save mode). The
machine acts as though it is
turned off. Do one of the
following to wake up the
machine:
 Press .
 Open the Top Cover.
 Load your document.
The machine will enter Ready
mode.
Selecting Scan
to PC
/
1
/
1
/
1
/
2
Scan to PC is selected. To
start scanning, press .
Selecting Scan
to USB
/
1
/
1
/
1
Scan to USB is selected. To
start scanning, press .
Selecting Scan
to Net Device 1
/
1
/
1
/
1
/
2
Scan to Net Device 1 is
selected. To start scanning,
press .
Selecting Scan
to Net Device 2
/
1
/
1
/
1
/
2
Scan to Net Device 2 is
selected. To start scanning,
press .
Connecting
(Scan to PC)
Connection between the
machine and your device is in
progress.
Connecting
(Scan to Net
Device 1)

Brother ADS-1100W Specifications

General

Film scanning	No
Color scanning	Yes
Grayscale levels	256
Input color depth	30 bit
Maximum scan size	210 x 297 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	16 ppm
Enhanced scan resolution	1200 x 1200 DPI
Optical scanning resolution	600 x 600 DPI
Black/white scanning color modes	Grayscale, Monochrome
Scanner type	ADF scanner
Product color	Black
Scan to	E-mail, FTP, Image, OCR, USB
Sensor type	Dual CIS
Scan drivers	ICA, ISIS, TWAIN, WIA
Internal memory	128 MB
Scan file formats	BMP, JPG, TIFF
Processor frequency	288 MHz
Scanning noise level	47 dB
Daily duty cycle (max)	500 pages
Auto document feeder (ADF) input capacity	20 sheets
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
ISO B-series sizes (B0...B9)	B5, B6, B7
Scanning media types supported	Business Card, Plastic Card
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	52 - 110 g/m²
USB version	2.0
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional
Power supply type	-
Power consumption (off)	0.25 W
Power consumption (standby)	4 W
Power consumption (typical)	14 W
Power consumption (PowerSave)	1.5 W
Package depth	170 mm
Package width	380 mm
Package height	207 mm
Package weight	2500 g
Mobile printing technologies	Brother iPrint & Scan
Custom media width	51 - 215.9 mm
Custom media length	70 - 297 mm

Weight and Dimensions

Depth	103 mm
Width	285 mm
Height	84 mm
Weight	1500 g
