Ill]

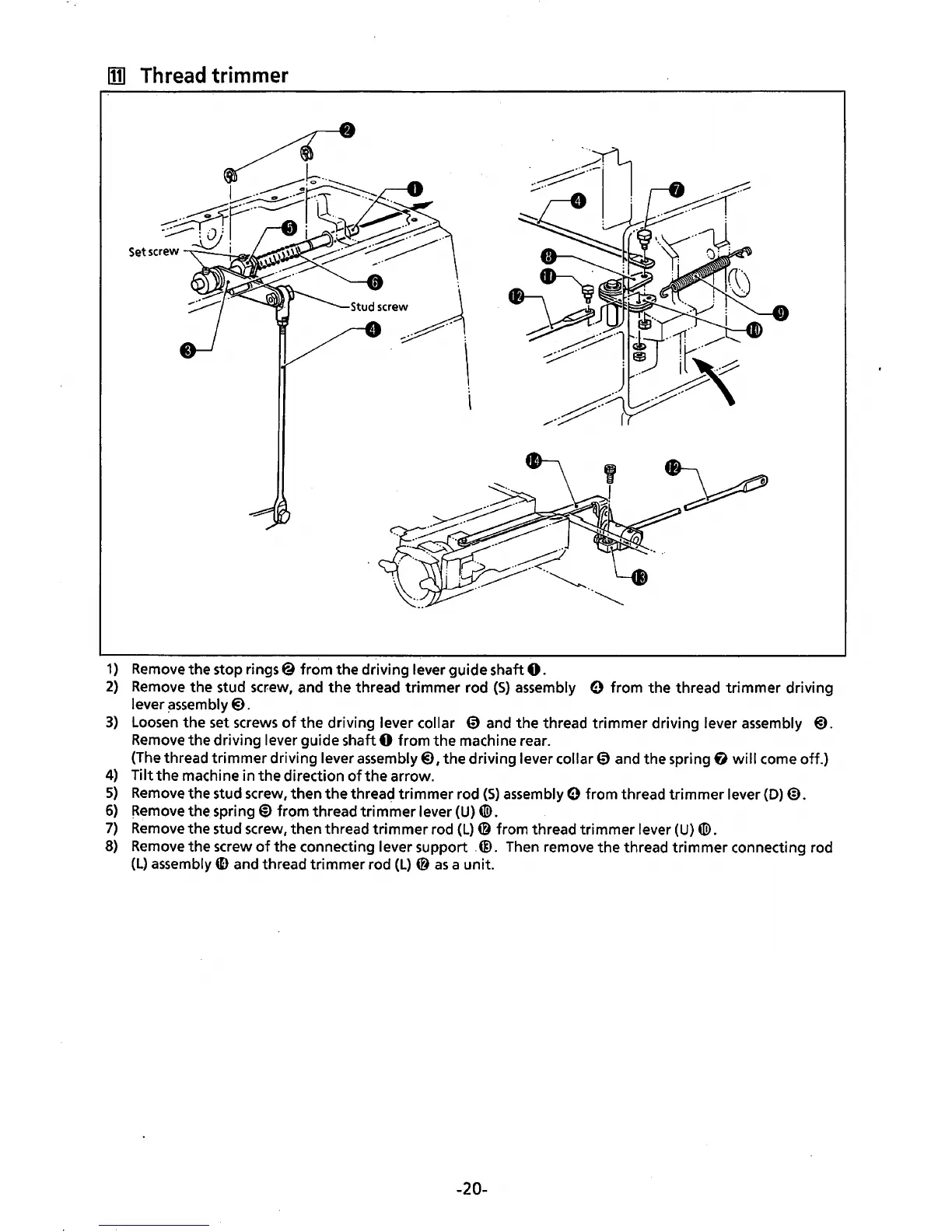

Thread trimmer
1}
Remove
the stop rings@ from the driving lever guide shaft
0.
2)
Remove
the stud screw, and
the
thread trimmer rod
(S}
assembly 0 from the thread trimmer driving
lever
~ssembly@).
3)
Loosen
the set
screws
of
the
driving lever collar 0 and the thread trimmer driving lever assembly
@).
Remove
the driving lever guide shaft 0 from
the
machine rear.
(The thread trimmer driving lever
assembly@),
the
driving lever collar 0 and the spring
fl
will
come off.}
4)
Tilt
the
machine in
the
direction
of
the arrow.
5)
Remove
the stud screw, then
the
threac;j
trimmer
rod
(S}
assembly 0 from thread
trimmer
lever
(D)@).
6)
~emove
the spring@ from thread
trimmer
lever (U)@.
7)
Remove
the stud screw, then thread
trimmer
rod (L)@ from thread trimmer lever
(U)
tiD.
8)
Remove
the screw
of
the connecting lever support
.@.
Then remove the thread
trimmer
connecting rod
(L)
assembly
ID
and thread trimmer rod
(L}
@
as
a unit.
-20-
