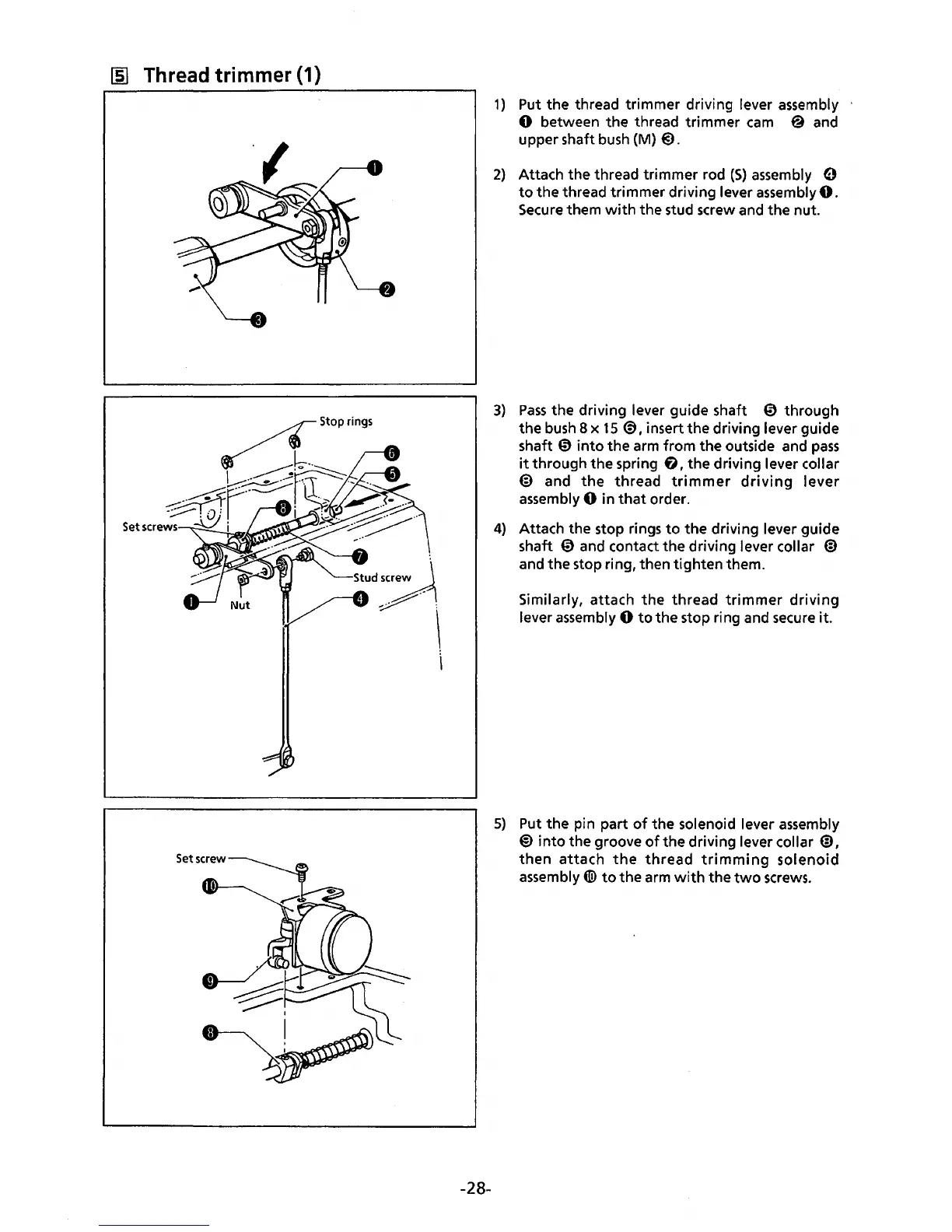

Thread trimmer {1)
-28-
1)
Put the thread trimmer driving lever assembly
0 between the thread trimmer
cam
@ and
upper shaft
bush
(M)
@).
2)
Attach the thread trimmer rod
(S)
assembly 0
to
the
thread trimmer driving lever assembly
0.
Secure
them
with
the stud screw and the nut.
3)
Pass
the driving lever guide shaft 0 through
the
bush
8 x
15
®,insert
the driving lever guide
shaft
0
into
the arm from the outside and
pass
it
through the spring
f),
the driving lever collar
@ and
the
thread
trimmer
driving
lever
assembly 0 in
that
order.
4)
Attach the stop rings
to
the driving lever guide
shaft
0 and contact the driving lever collar
@)
and the stop ring, then tighten them.
Similarly, attach
the
thread
trimmer
driving
lever assembly 0
to
the
stop ring and
secure
it.
5)
Put
the
pin part
of
the solenoid lever assembly
@)
into
the groove
of
the driving lever collar
@,
then
attach
the
thread
trimming
solenoid
assembly
(li)
to
the arm
with
the
two
screws.
To Next Page
