Brother BAS-304 Service Manual

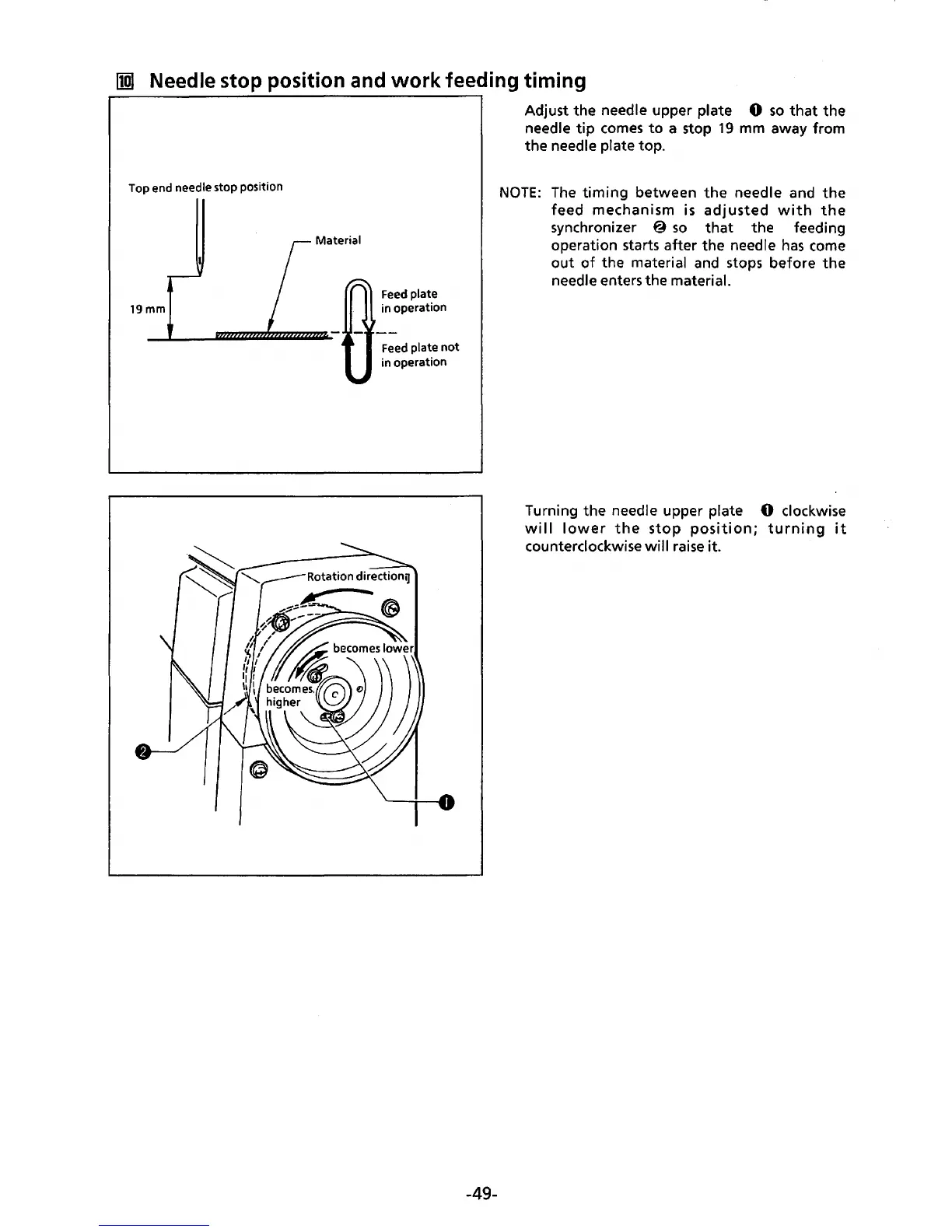

1m! Needle stop position and work feeding timing
Top end needle stop position
19mm
Feed plate
in operation
Feed
plate not
in operation
-49-
Adjust the needle upper plate 0 so that the
needle tip comes to a stop 19 mm away from
the
needle plate top.
NOTE: The timing between the needle and the
feed mechanism is adjusted with the
synchronizer @ so that the feeding
operation starts after the needle has come
out of the material and stops before the
needle enters the material.
Turning the needle upper plate 0 clockwise
will lower the stop position; turning it
counterclockwise will raise it.
