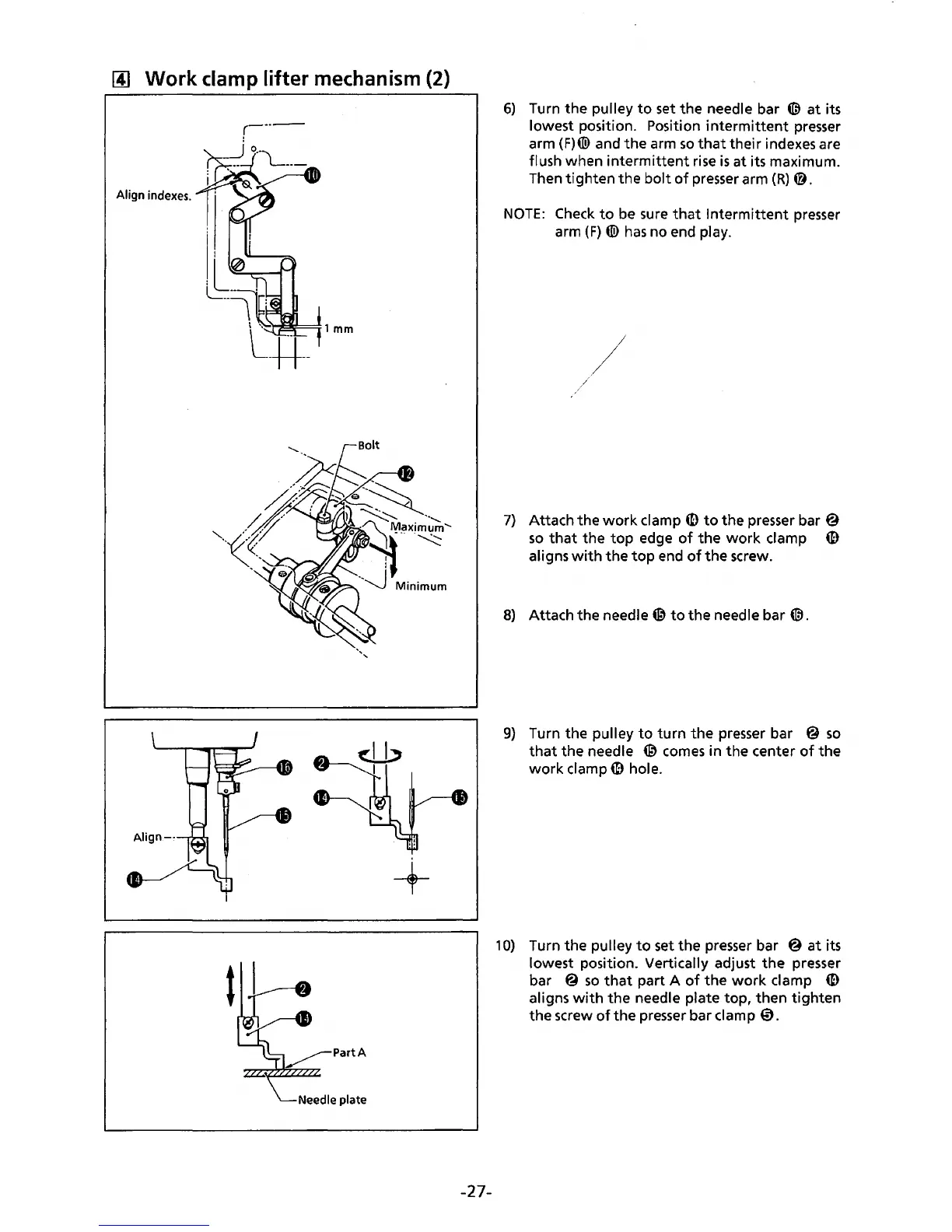

[!] Work clamp lifter mechanism (2)
+
-27-
6) Turn the pulley to set the needle bar @ at its
lowest position. Position
intermittent presser
arm (F)(@ and the arm so that their indexes are
flush when
intermittent rise is at its maximum.
Then tighten the
bolt of presser arm (R)@.
NOTE: Check to be sure that Intermittent presser
arm (F) ® has no end play.
7) Attach the work clamp (D to the presser bar@
so that the top edge of the work clamp (D
aligns with the top end of the screw.
8) Attach the needle@ to the needle bar @.
9) Turn the pulley to turn the presser bar @ so
that the needle @ comes in the center of the
work clamp (D hole.
1
0) Turn the pulley to set the presser bar @ at its
lowest position.
Vertically adjust the presser
bar
@ so that part A of the work clamp (D
aligns with the needle plate top, then tighten
the screw
of the presser bar clamp 0.
