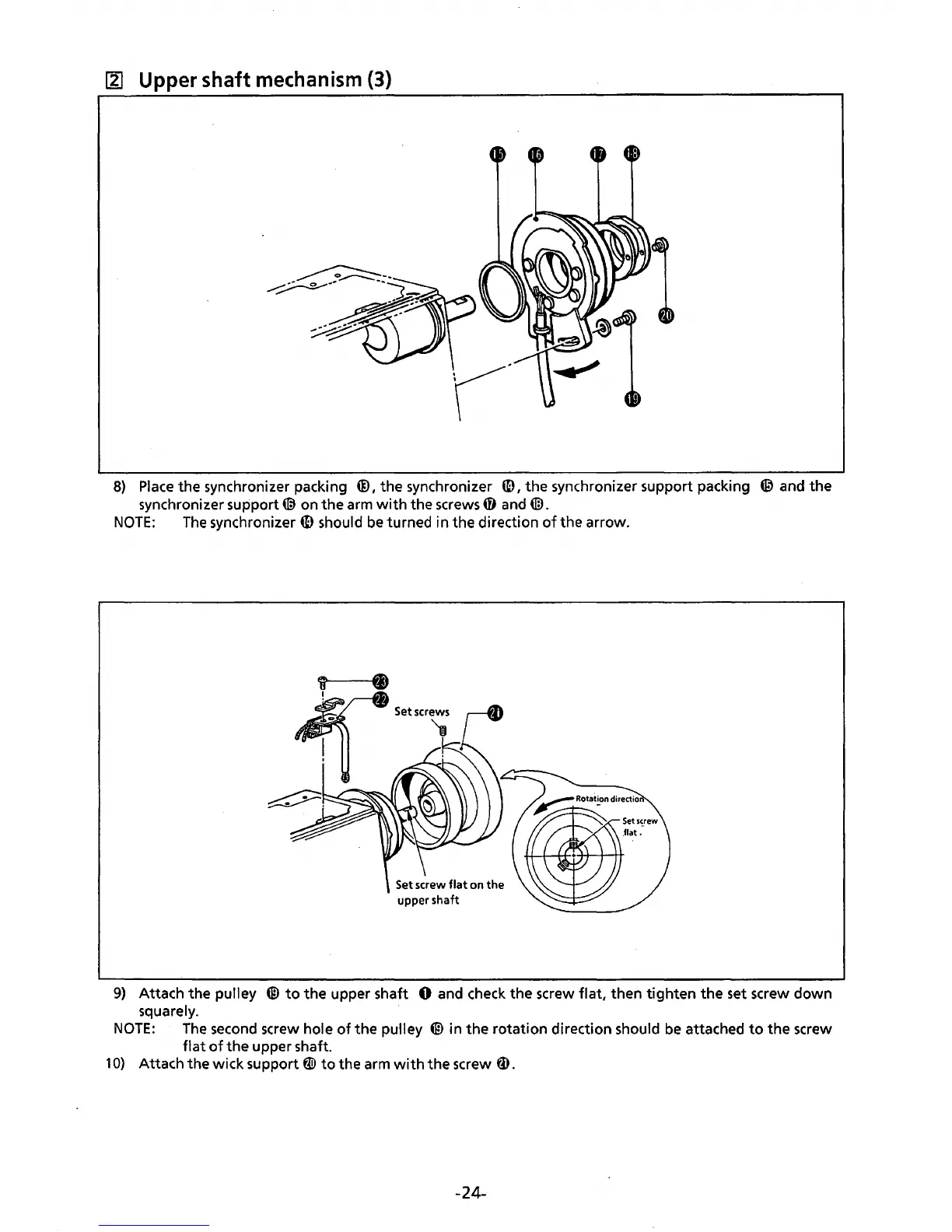

Upper shaft
mechanism
(3)
8)
Place
the synchronizer packing
@,the
synchronizer
ID,
the synchronizer support packing @ and the
synchronizer
support®
on
the
arm
with
the
screws
0 and
@.
NOTE:
The
synchronizer
ID
should
be
turned in the direction
of
the arrow.
9)
Attach the pulley @
to
the
upper shaft 0 and check the screw flat, then tighten the set screw down
squarely.
NOTE:
The
second
screw hole
of
the
pulley @ in
the
rotation direction should
be
attached
to
the screw
flat
of
the upper shaft.
1
0)
Attach the wick support
fll)
to
the arm
with
the screw
tD.
-24-
