Brother FAX 2820 User Manual

Troubleshooting and routine maintenance
11 - 10
11

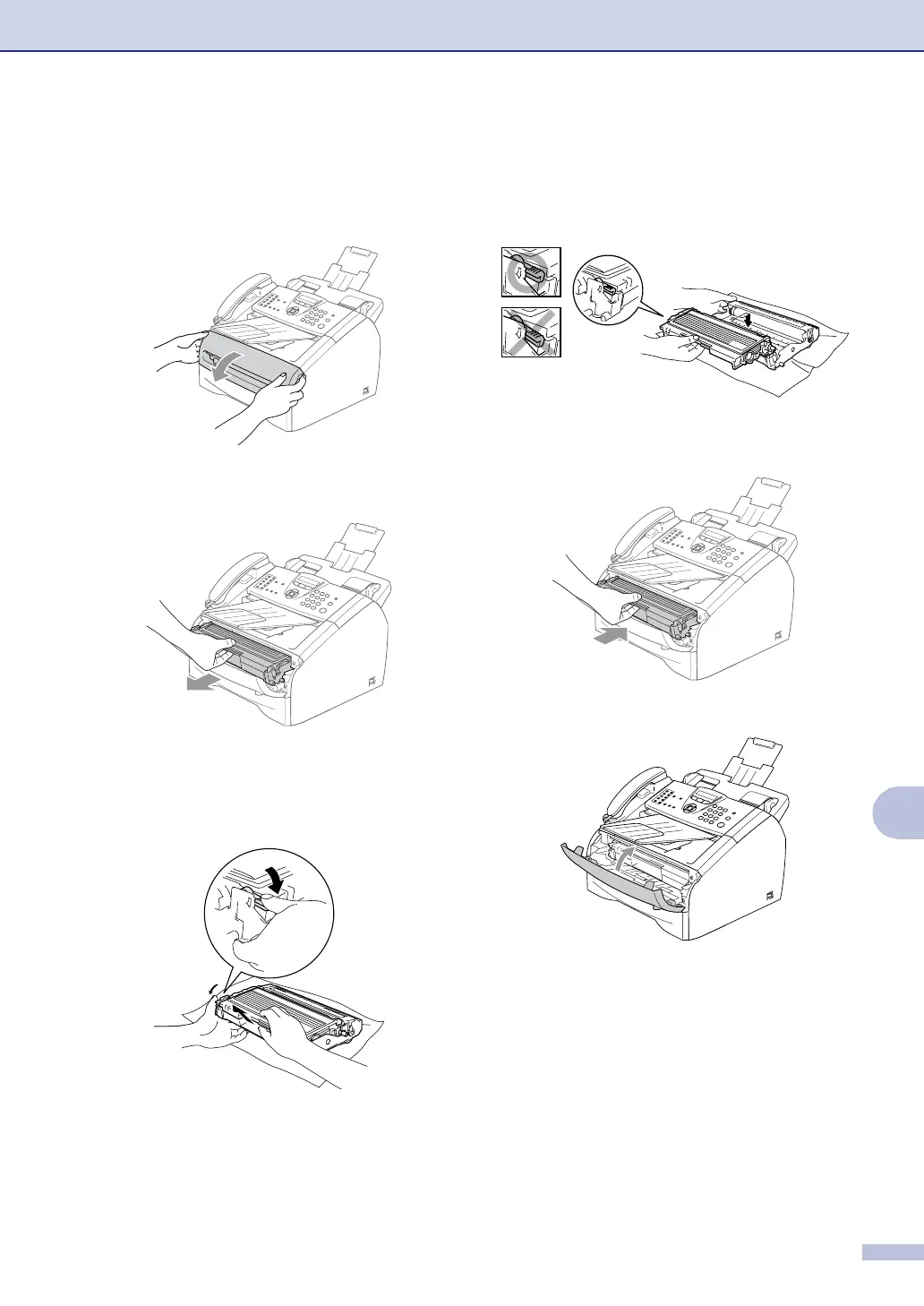

Paper is jammed inside the drum unit
and toner cartridge assembly
1
Open the front cover.
2
Pull out the drum unit and toner
cartridge assembly.
3
Hold down the lock lever on the left and
pull the toner cartridge out of the drum
unit. Take out the jammed paper if there
is any inside the drum unit.
4
Put the toner cartridge back into the
drum unit until you hear it lock into place.
If you put it in properly, the lock lever will
lift automatically.
5
Put the drum unit and toner cartridge
assembly back into the machine.
6
Close the front cover.

Brother FAX 2820 Specifications

General

Modem speed	14.4 Kbit/s
Color faxing	No
Print technology	Laser
Fax speed dialing (max numbers)	200
Fax memory	8 MB
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	14 cpm
Copy resolution (black text)	200 x 300 DPI
Standard input capacity	250 sheets
Standard output capacity	100 sheets
Auto document feeder (ADF) input capacity	20 sheets
Power consumption (typical)	80 W

Weight and Dimensions

Weight	7250 g
Dimensions (WxDxH)	374 x 374 x 262 mm
