III-3
3. DISASSEMBLY PROCEDURE
3.1 Output Tray ASSY
(1) Open the output tray toward you.
(2) Press the hinges at the left and right sides of the output tray inwards to release the
output tray from the main cover.

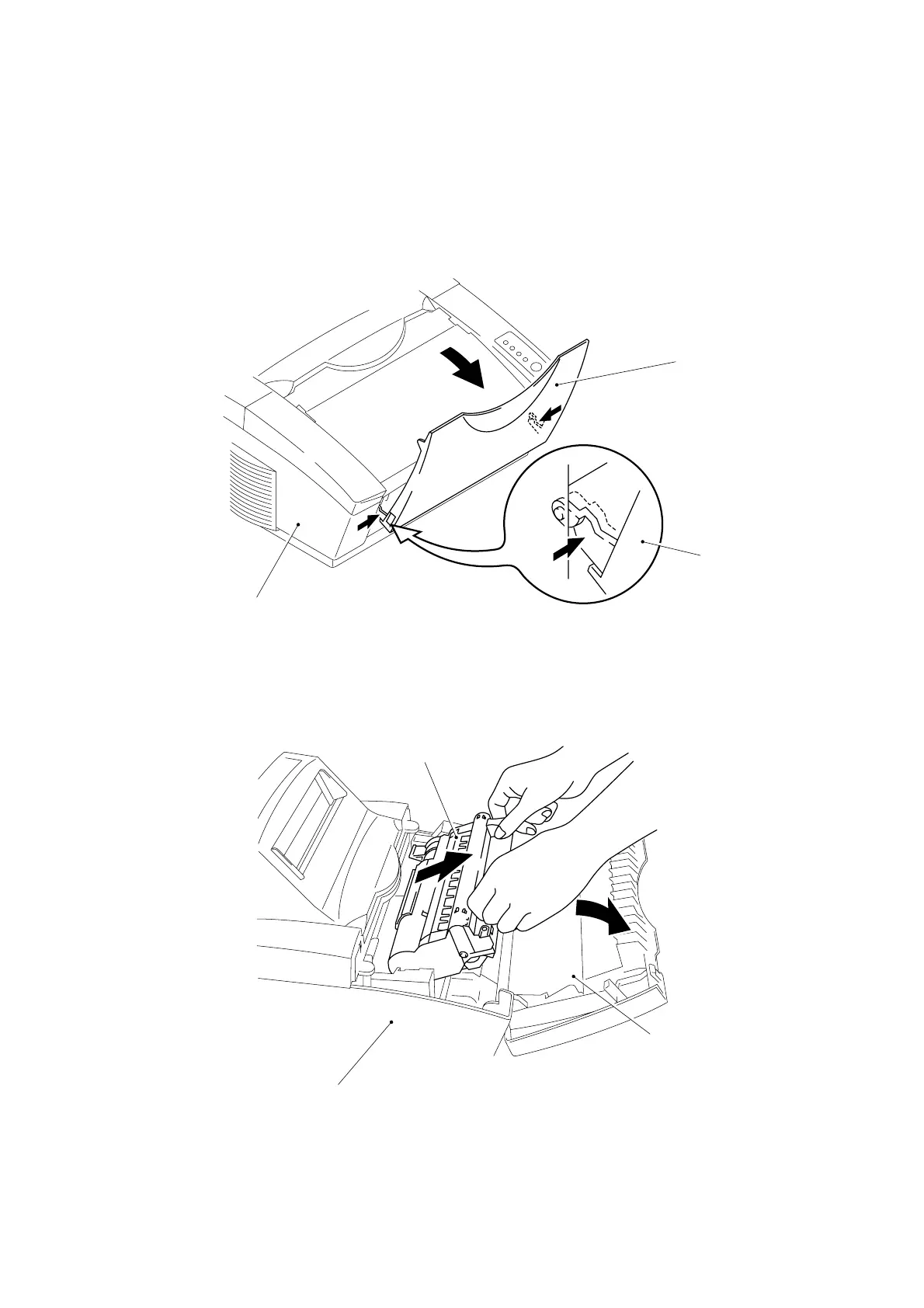

Fig. 3.1
3.2 Drum Unit
(1) Open the top cover.
(2) Lift out the drum unit.
Fig. 3.2
Drum Unit
Top Cover
Main Cover
Main Cover
Output Tray
Output Tray
