Brother HL-820 User Manual

III-14

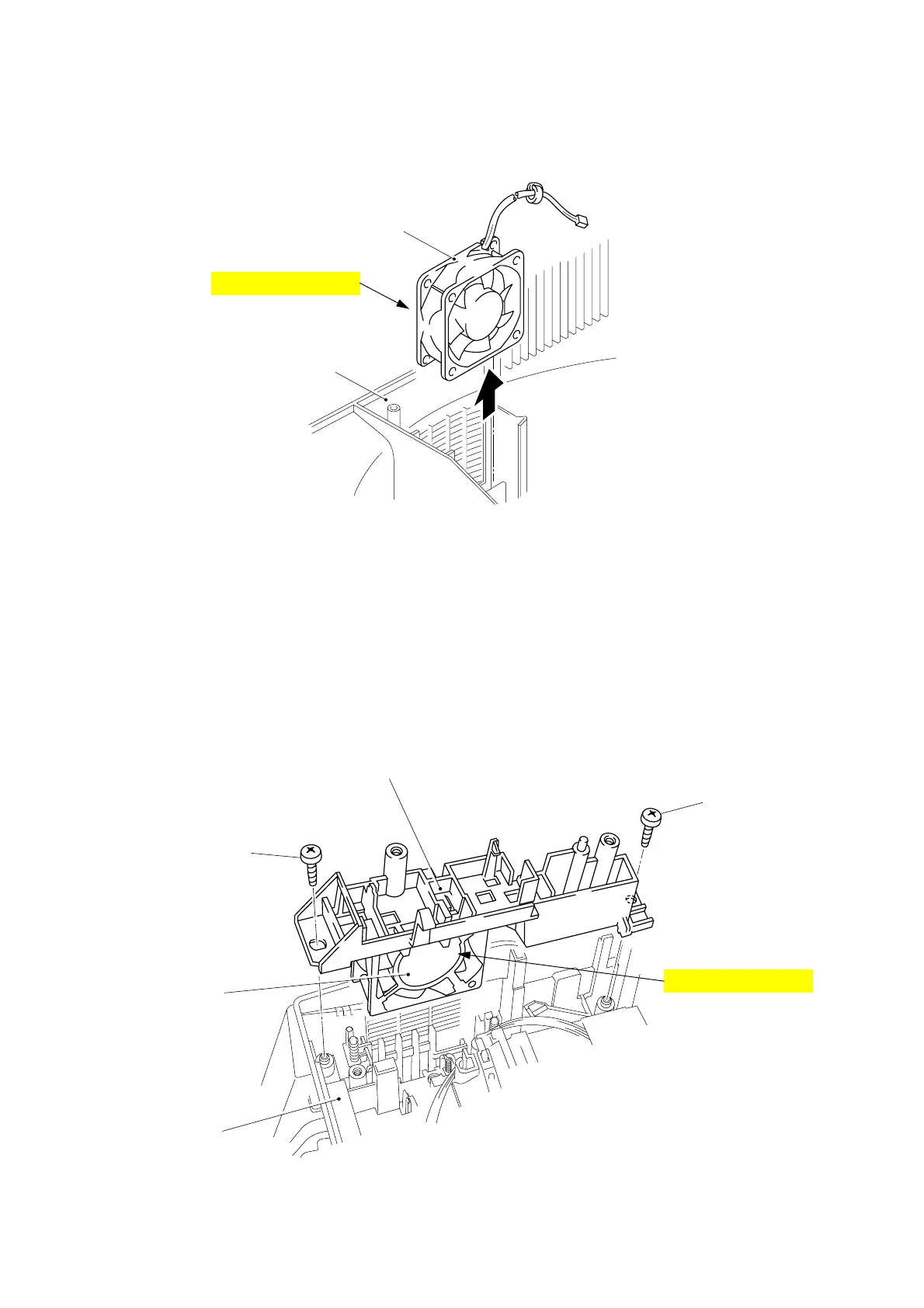

3.13 Sub Fan Motor ASSY
(1) Slide the sub fan motor ASSY upwards.
Fig. 3-23
Note:
When re-assembling the sub fan motor, ensure that the side on which the manufacturers
sticker is attached is facing the main frame.
3.14 Main Fan Motor ASSY
(1) Remove the two M4x12 screws securing the fan motor holder.
(2) Remove the fan motor holder from the printer.
(3) Remove the main fan motor from the fan motor holder.
Fig. 3-24
Fan motor holder
Fan Motor
Taptite
,
bind M4x12
Sub Fan Motor
Main Cover
Manufacturer sticker side
Taptite, bind
M4x12
Main frame
Manufacturer sticker side
