III-6
3.6 Fixing Unit
(1) Remove the two M4x16 tapping screws.
(2) Lifting the fixing unit, disconnect the thermistor connector on the EL PCB first, then
the two heater harnesses.

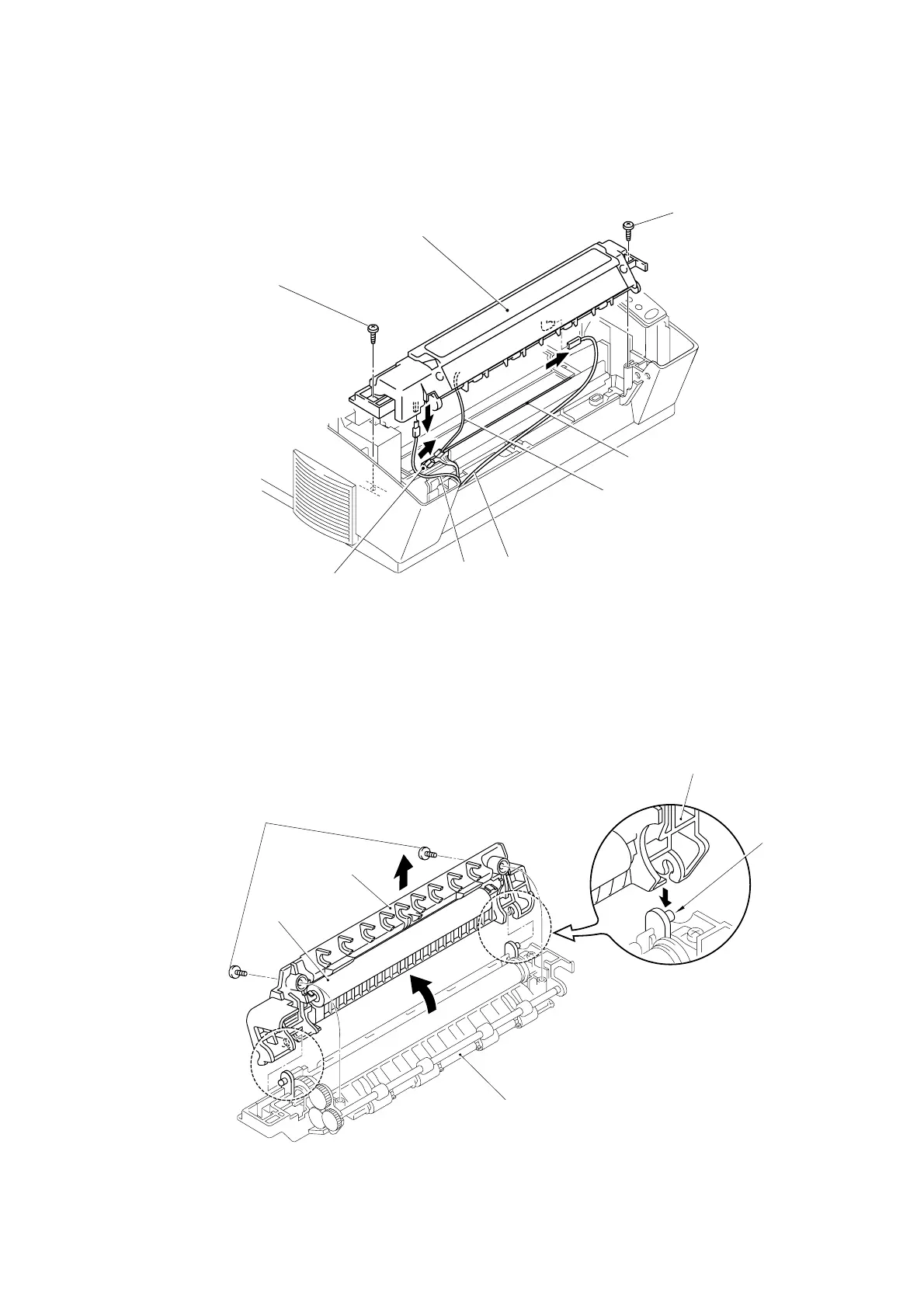

Fig. 3-7
Note:
The eject sensor actuator may also be removed when removing the fixing unit. In this
case be sure to re-assemble the eject sensor actuator when re-assembling the fixing unit.
(3) Remove the two M3x12 tapping screws.
(4) Open the fixing unit cover along the open side of the fixing unit cover.
Fig. 3-8
Taptite, bind M3x12
Fixin
g
unit cover
Shaft
Fixing unit
co
v
e
r
Pressure roller
Fixin
g
unit frame
Fixing Unit
Taptite, cup M4x16
Thermistor connector
Heater harness
(
Brown
)
Thermistor harness
EL PCB
Taptite, cup M4x16
Heater harness
(Blue)
