III-5
3.5 MP Sheet Feeder ASSY
Caution:
When disassembling the MP sheet feeder ASSY, if you get the grease on your fingers,
take care not to touch the separation pad or the paper pick-up roller, the grease spread to
the paper and the drum unit. It might cause black spots to appear on the printed page.

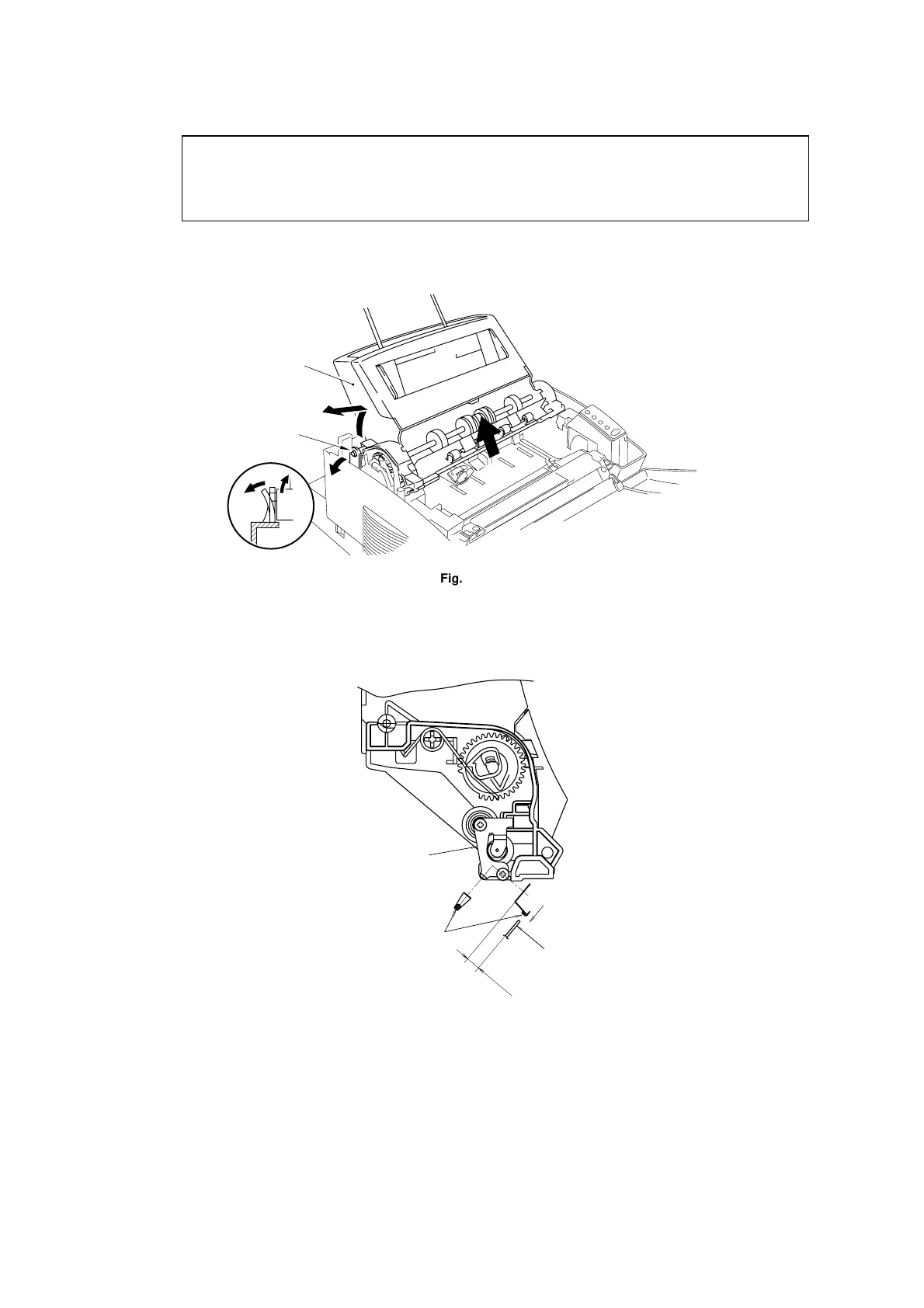

(1) Push the left rib outwards and pull out the MP sheet feeder. It is not necessary to
release the right rib.
Fig. 3-5
Note:
When re-assembling, apply a suitable amount of grease (2 rice-grain size) between the
heat sink of the motor and the ground leaf spring in case of grease shortage. (Refer to
the figure below.)
Fig. 3-6
Multi-purpose
Sheet Feeder
Rib
Ground leaf spring
Grease: FLOIL GE-676
or FLOIL GE-334C
Motor heat sink
6.2MM
