Brother HL-L9310CDW User Manual

CHAPTER 2 PCL - 88
6.3. Raster Graphics
6.3.1. Positioning the cursor
Position the cursor using the commands described in the chapter entitled "The Page", using dots, decipoints or
rows and columns as coordinate units.
6.3.2. Set raster resolution
Esc*t#R (27)(42)(116)#(82) <1Bh><2Ah><74h>#<52h>

This command sets the raster image resolution in dots per inch.
 # is 75, 100, 150, 200, 300 or 600.
 The lower the resolution you specify, the less printer memory your raster image will occupy.
 Use this command before you issue a Begin Raster Graphics command, otherwise the resolution that you
specify will not take effect until the next time you re-enter raster graphics mode.
6.3.3. Set high resolution control
EscCRRO (27)(13)(82)(79) <1Bh><0Dh><52h><4Fh>

This command sets high resolution control off.
EscCRRL (27)(13)(82)(76) <1Bh><0Dh><52h><4Ch>

This command sets high resolution control Light level.
EscCRRM (27)(13)(82)(77) <1Bh><0Dh><52h><4Dh>

This command sets high resolution control Medium level.
EscCRRD (27)(13)(82)(68) <1Bh><0Dh><52h><44h>

This command sets high resolution control Dark level.

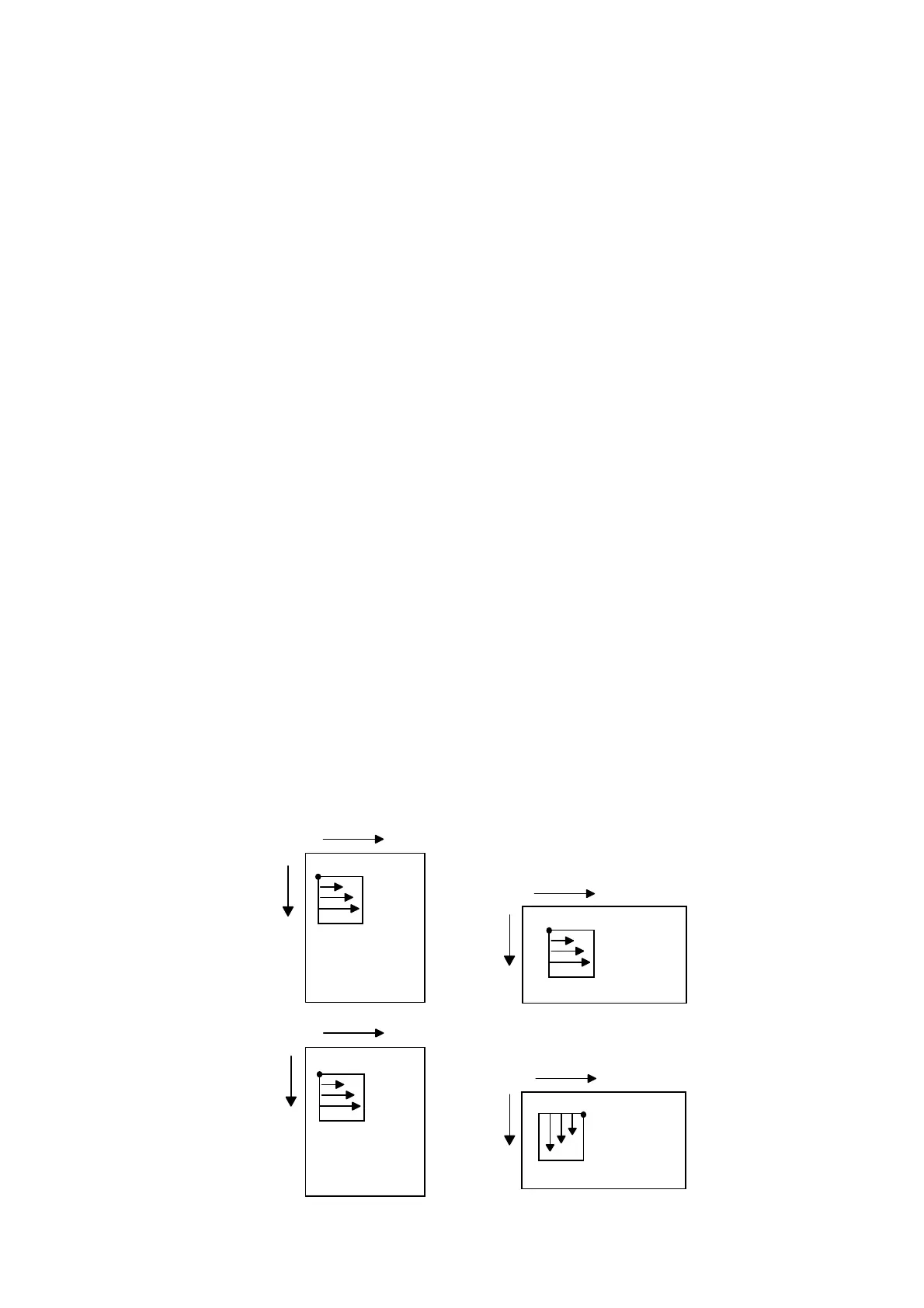

6.3.4. Set raster image orientation
Esc*r#F (27)(42)(114)#(70) <1Bh><2Ah><72h>#<46h>

This command specifies the orientation of the raster image.
 # is 0 or 3.
 # = 0 determines that the image will be printed from left to right and from top to bottom within the current
logical page.
 # = 3 determines that the image will be printed from left to right and from top to bottom within the current
physical page irrespective of logical page orientation.
 The default value of # is 3.
X
Y
Y
Y
Y
X
X
X
(X1, Y1)
(X1, Y1)
(X1, Y1)
(X1, Y1)
Portrait
Landscape
Portrait
Landscape
#=0
#=0
#=3
#=3
(X1,Y1) = Cursor position

Brother HL-L9310CDW Specifications

General

Display	LCD
Control type	Touch
Built-in display	Yes
Display diagonal	2.7 \
Market positioning	Business
Maximum duty cycle	80000 pages per month
Recommended duty cycle	- pages per month
Replacement cartridges	TN-910BK TN-910C TN-910M TN-910Y
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6, PDF 1.7, XPS
Linear (1D) barcodes supported	Codabar, Code 128A, Code 128B, Code 128C, Code 39, Code 93, Facing Identification Mark, GS1 DataBar, ISBN, Interleaved 2 of 5, MSI, POSTNET, UPC-A, UPC-E
Sound power level (standby)	60 dB
Sound power level (printing)	65.5 dB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	44 dB
N-up printing	2, 4, 9, 16, 25
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto/Manual
Time to first page (black, normal)	15 s
Print speed (color, normal quality, A4/US Letter)	31 ppm
Duplex print speed (black, normal quality, A4/US Letter)	14 ppm
Envelopes sizes	10
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Letterhead, Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Bond paper, Glossy paper, Letterhead, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Paper tray media weight (imperial)	16 - 28 lbs
Multi-Purpose Tray media weight (imperial)	16 - 43 lbs
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	2380 sheets
Paper tray 1 input capacity	250 sheets
Total number of input trays	1
Multi-Purpose tray input capacity	50 sheets
Authentication method	LDAP, ActiveDirectory, RADIUS
Online services supported	Dropbox, Google Drive
Dimensions (W x D x H) (imperial)	17.4 x 19.1 x 12.3 \
Package depth	603 mm
Package width	642 mm
Package height	578 mm
Package weight	26800 g
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, EAP-FAST, EAP-TLS, EAP-TTLS, IPSec, LEAP, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, WPA-PSK, WPS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(AutoIP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/ LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMP, Web Services (Print), CIFS client, SNTP client, LDAP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMPv6, Web Services (Print), CIFS Client, SNTP Client, LDAP
USB connector	USB Type-A
USB 2.0 ports quantity	3
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Included cartridge capacity (black)	6500 pages
Power consumption (ready)	70 W
Power consumption (printing)	580 W
Energy Star Typical Electricity Consumption (TEC)	1.8 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR, Nordic Swan Ecolabel

Weight and Dimensions

Depth	486 mm
Width	441 mm
Height	313 mm
