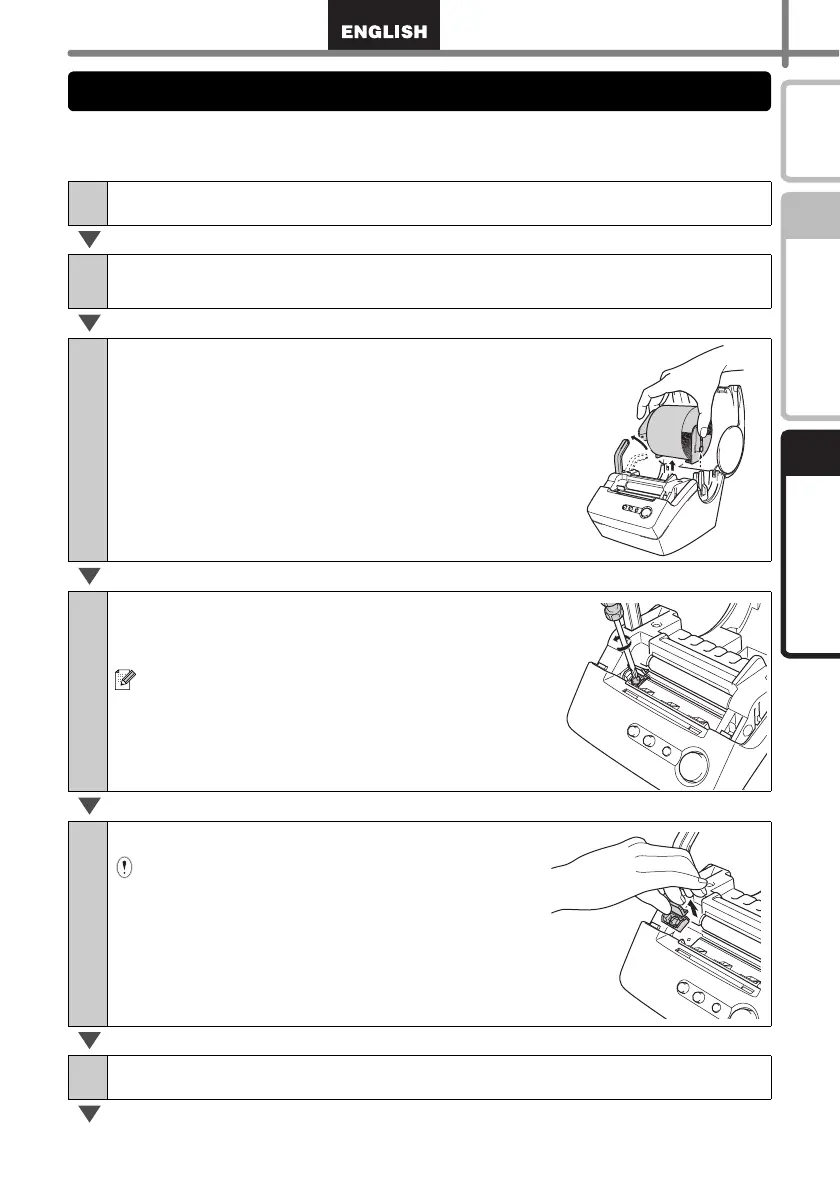

Eventually the cutting blade on the cutter unit will become dull (blunt) and need to be
replaced. At the appropriate time, purchase a new replacement cutter unit and install it
according to the following procedure.
1
Check that the cutter unit is located in the home position.
2
Turn OFF the power to the printer and pull out the power cord from
the wall socket.
3
Open the DK Roll cover and pull the roll
release lever to the up position. Remove the
DK Roll.
4
Using a cross-head screwdriver, loosen the
screw which holds the cutter blade unit in-
place.
The screw securing the cutter unit should not be
completely removed. Simply loosen it to remove
the cutter unit from the printer.
5
Grip the tab and lift out the cutter unit.
Take care not to touch the blade of the cutter.
6
Set the new cutter unit in the correct position.
Replacing the cutter unit

Brother ql-560 Specifications

General

Print Technology	Direct Thermal
Print Resolution	300 dpi
Cutter	Automatic
Interface	USB
Operating System Compatibility	Windows, Mac
Power Supply	AC Adapter
Max Print Width	62 mm
Max Label Width	62 mm
Max Label Length	3 ft
Print Speed	50 mm/s
Compatible Label Types	Die-cut labels, Continuous tapes
