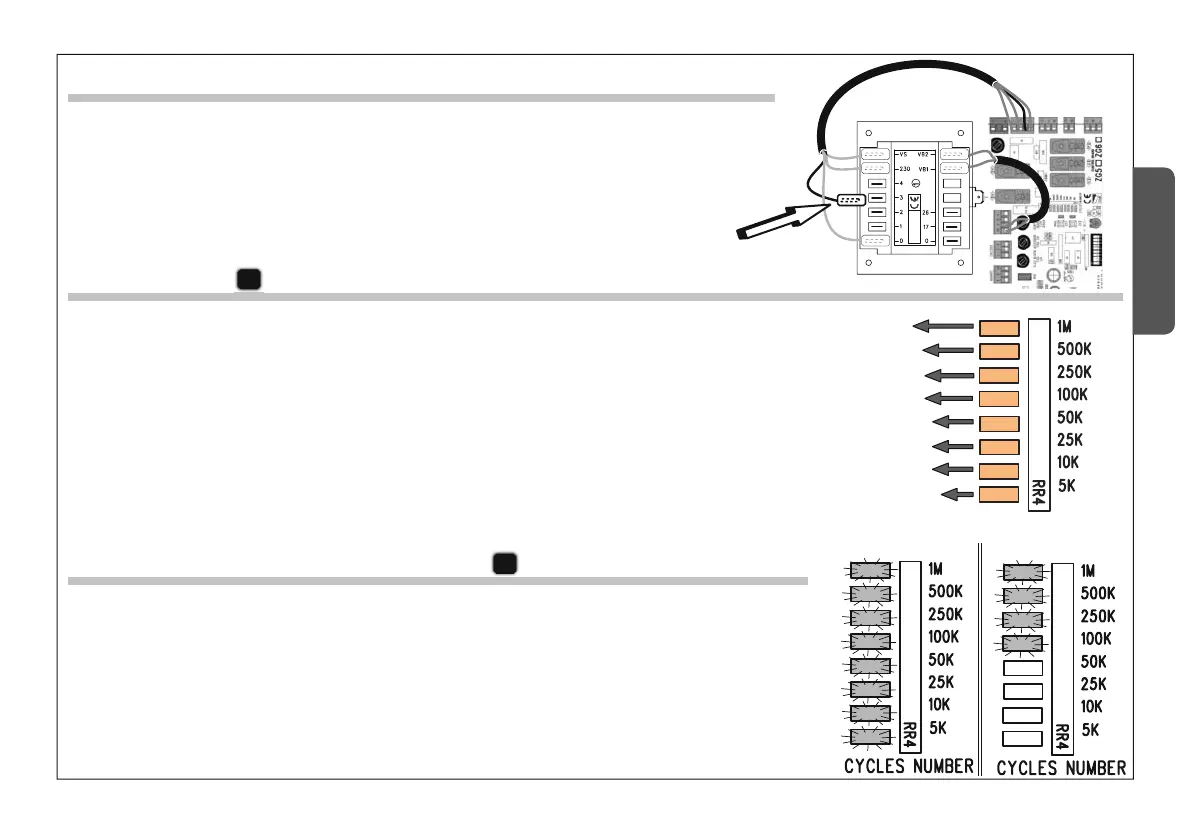

To vary the motor torque, move the indi cated faston to one of the four positions:

1=min, 4=max

G2081 - G2081I G4041 - G4041I

Led n°1 = 5000 manoeuvres

Led n°2 = 10000 manoeuvres

Led n°3 = 25000 manoeuvres

Led n°4 = 50000 manoeuvres

Led n°5 = 100000 manoeuvres

Led n°6 = 250000 manoeuvres

Led n°7 = 500000 manoeuvres

Led n°8 = 1000000 manoeuvres

Management of the manoeuvre pick-up function

Operation counter

Motor torque limiter

To manage the manoeuvre pick-up function, position the dip 1 and dip 3 to ON; all 8 LED

of the manoeuvre counter will be on (default memorization for G2081 and G2081I); to select

management of manoeuvre pick-up function for G4041 e G4041I barriers, position the dip 1 and

3 to ON and press the CH1 button. The ﬁ rst 4 LEDs will be on. Reposition the dip 3 to OFF and

dip 1 can be left on the ON position, if automatic closure is desired.

Counts the number of operations displayed with the 8 LED to zero out the count,

position the dip 1 to OFF (if selected to ON) and the dip 3 to ON, press the CH1

and wait for all the LED to turn off. After zeroing out, return the dip 1 to ON (if

selected) and dip 3 to OFF.
