Parts and Their Functions
▀

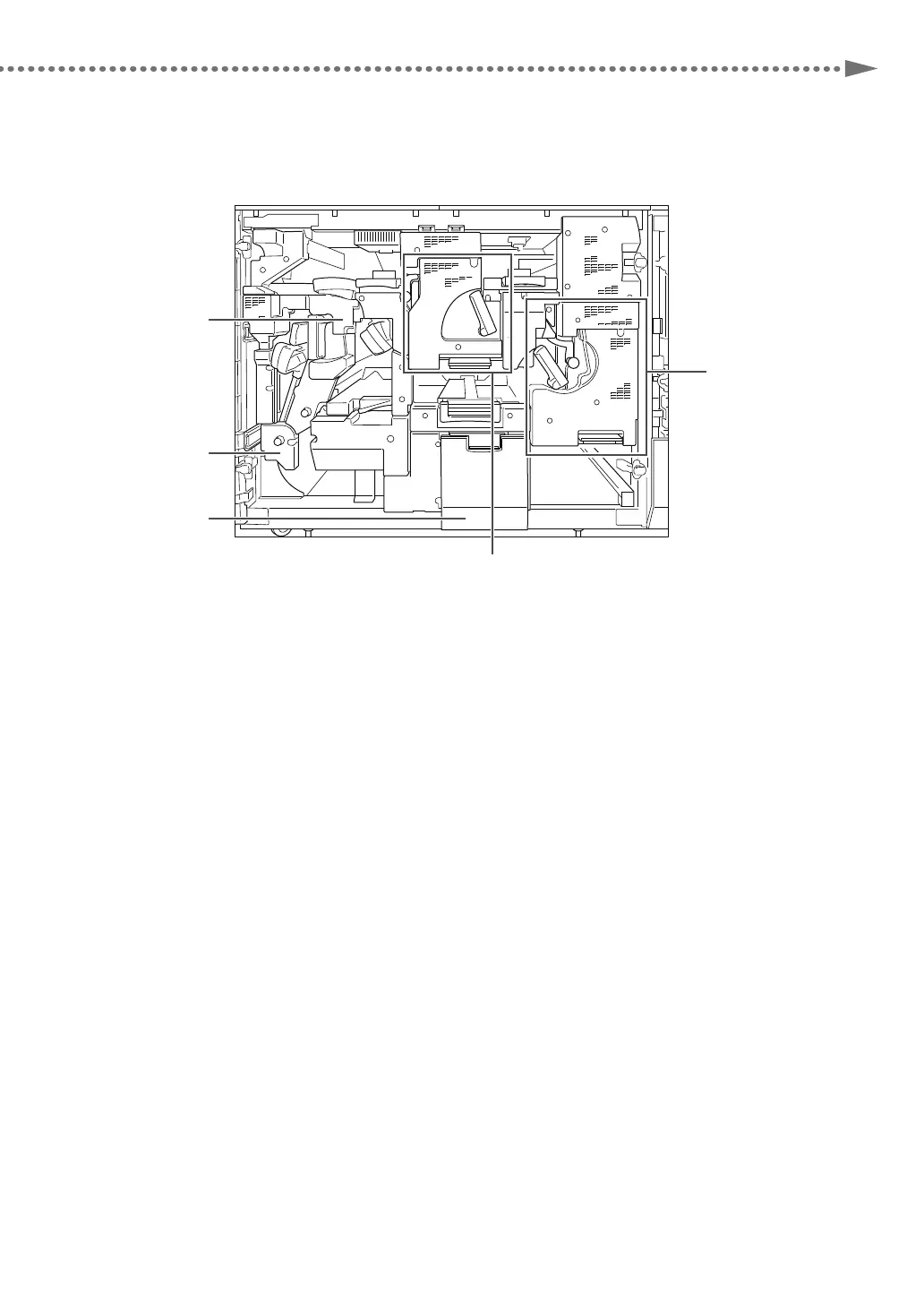

Internal View (Fixing Station)
1
2
3
4
5
1 Primary Fixing Assembly
Fixes toner that has transferred to paper. Pull out
the primary fixing unit to clear a paper jam inside
the assembly.
2 Secondary Fixing Assembly
Some paper types need to pass through the
secondary fixing assembly after passing through
the primary fixing assembly to fix the toner
securely. Pull out the secondary fixing unit to clear a
paper jam inside the assembly.
3 Waste Toner Container Tray
Pull out this tray to replace the waste toner
container.
4 Reverse Unit
Reverses paper and returns it to the marking engine
when performing two-sided printing. This unit also
reverses paper to output the printed side face up or
down according to the Face Up/Face Down mode
settings.
Pull out the delivery/reverse unit to clear a paper
jam inside the unit.
5 Decurler Unit
Corrects paper curling caused by heat. Pull out this
unit to clear a paper jam inside the unit.
