Chapter 1
1-17
1.5 Names and Functions of Components

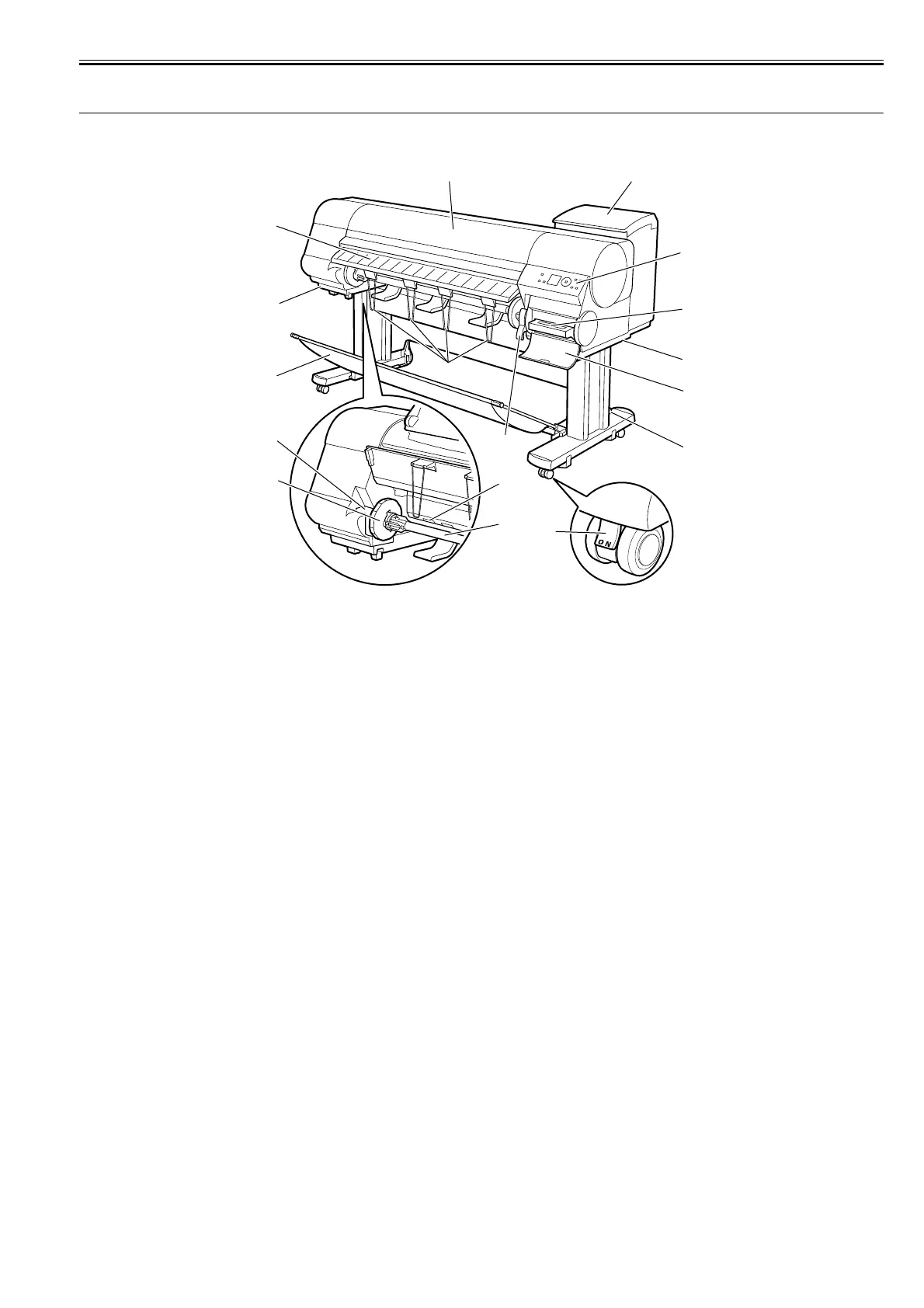

1.5.1 Front
0020-5447
F-1-17
[1] Upper cover
Open this cover to mount a printhead, load paper or remove per jammed jams inside the printer.
[2] Ejection guides
Allow printed material to be ejected. Open these guides to load rolls.
[3] Roll Holder slot
Set the roll holder into this guide slot.
[4] Roll holder
Set a roll on this holder.
[5] Ejection support
Prevents printed material from being caught on the roller holder or in the paper loading port.
[6] Output stacker
A cloth tray that receives paper as it is ejected.
[7] Paper loading port
Insert a roll into this port to load.
[8] Holder stopper
Use this part to secure a roll to the roll holder.
[9] Ink tank cover
Open this cover to replace ink tanks.
[10] Operation panel
Operate the printer or view its status from this panel.
[11] Release lever
Releases the paper retainer. Pull up this lever to front to load paper.
[12] Maintenance cartridge
Collects inks that have been used for maintenance services, such as head cleaning.
[13] Carrying handle
The carrying handle is located on both left and right sides of the bottom. Allow a team of six persons to carry the printer.
[14] Maintenance cartridge cover
Open this cover to replace the maintenance cartridge.
[15] Stand
The base on which the printer mounts. The stand on wheels is easy to relocate.
[16] Stoppers
Clamp the wheels of the stands. Be sure to release the stoppers when relocating the printer. Moving the printer with the stoppers locked could shave
the wheels, leaving scratches on the floor surface.
[2]
[3]
[10]
[1]
[8]
[4]
[9]
[7]
[6]
[13]
[11]
[5]
[12]
[13]
[14]
[15]
[16]
