Canon imagePROGRAF iPF815 Service Manual

Chapter 2
2-1
2.1 Basic Operation Outline

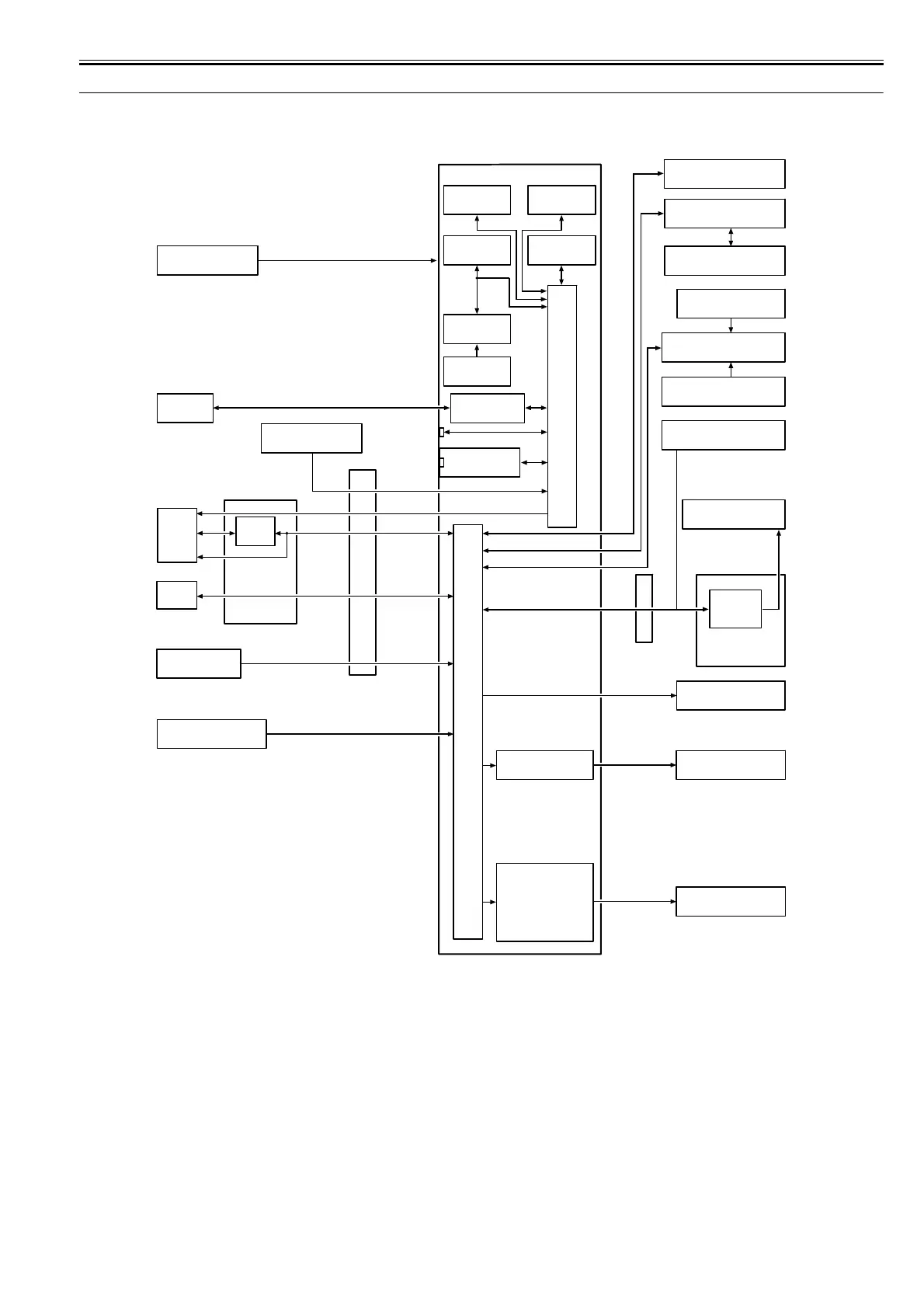

2.1.1 Printer Diagram
0025-9728
A printer diagram is shown below.
F-2-1
J102
IC1
ASIC
IC2/
IC
4101
ASIC
IC201
USB
LAN
CN201 J1801
J2601
J3201
J3003
J2402/J2403/
J4001
J2401/J2501/
J2801/J3150/
J3901/J4001/
J4002/J4003
J2401/J2403/J2501/J2702/
J3002/J3151/J3152/J3801/
J3901/J4001/J4002
J102
J101
J102/
J103
J2403
Power supply PCB
Main controller PCB
IC802
EEPROM
IC803
RTC
BAT 801
Lithium battery
IC1201
HDD Controller
HDD
IC701/IC703
FLASH ROM
IC601-IC604
SDRAM
SO-DIMM
Linear encoder
sensor
Head
Head reley PCB
Carriage relay PCB
Printhead fixer
lever sensor
J101/J201/
J202
J1201/
J1202
J3401/J3601/
J3602
J102/J203/
J204
J101/J102/
J103
J205
J206
Multi
sensor
J501
J104
Operation panel PCB
Maintenance cartridge
relay PCB
Maintenance cartridge
ROM PCB
Ink tank
ROM PCB
Ink detection sensor
Ink tank
Sensors
Media take-up on/off sensor
Media take-up paper
detection sensor
Motor
Media take-up motor
Platen suction fan
MIst fan
BP maintenance jet suction fan
Carriage motor
Feed motor
Lift motor
Purge motor
Valve motor
Cutter motor
Roll media pick-up motor
Pinch roller pressure motor
HP maintenance jet pump motor
Carriage HP sensor
Pump encoder sensor
Pump cam sensor
Media sensor
Head management sensor
Feed roller encoder sensor
Feed roller HP sensor
Valve open/closed detection sensor
Agitation cam sensor
Temperature/humidity detection sensor
Lift cam sensor
HP maintenance jet pump encoder sensor
Cutter HP sensor
Cutter left position sensor
Roll media detection sensor
Roll media pick-up cam sensor
Poll media pick-up roller paper detection sensor
Roll media width detection sensor
Pinch roller release detection sensor
Pinch roller pressure detection sensor
Upper cover lock switch(L)/(R)
Pinch roller pressure release switch
Ink tank cover switch
IC104
Motor
driver
Fans
Motors
Sensors/Switches
Media take-up
PCB
Media take-up
relay PCB
IC2700/IC2802/
IC2900/IC2902/
IC3100/IC4501/
IC4601/IC4602
Motor driver
J2702/J3901/
J4001
Upper cover lock solenoid(L)/(R)
Flapper solenoid
Roll media rewinding clutch
Roll media pick-up cam clutch
Roll media pick-up roller clutch
Roll media pick-up pressure clutch
Pinch roller pressure clutch
Solenoids/Clutches
IC2700/IC4502
Driver
Network BOARD
J101

Canon imagePROGRAF iPF815 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Package weight	301200 g
Bundled software	Printer Driver Extra Kit for Windows/Mac (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft Word/Excel/PowerPoint for Windows, Digital Photo Front-Access for Windows, PosterArtist Lite for Windows
Media thickness	0.07 - 0.8 mm
Roll top margin	3 mm
Maximum print size	-
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
ISO B-series sizes (B0...B9)	B0, B2
Electromagnetic compatibility	RoHS Directive, WEEE, Executive Order (USA)
Power requirements	AC 100 - 240V, 50/60Hz
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	190 W
Certification	UL (USA), C-UL (Canada), S mark (Argentina), CE mark (EN60950, EN55022 classB, EN61000-3-2, EN-61000-3-3, EN55024) (EU), CB certification (Others), FCC Class B (USA), IC Class B (Canada)
Storage media	HDD
Internal storage capacity	160 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100Base-T/TX Mbit/s
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 (32/64 bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit); Macintosh OS X 10.3.9 - 10.6 (32 bit), OS X 10.5 - 10.6 (64 bit)

Weight and Dimensions

Dimensions (WxDxH)	1892 x 975.4 x 1143 mm
