Chapter 1
1-19

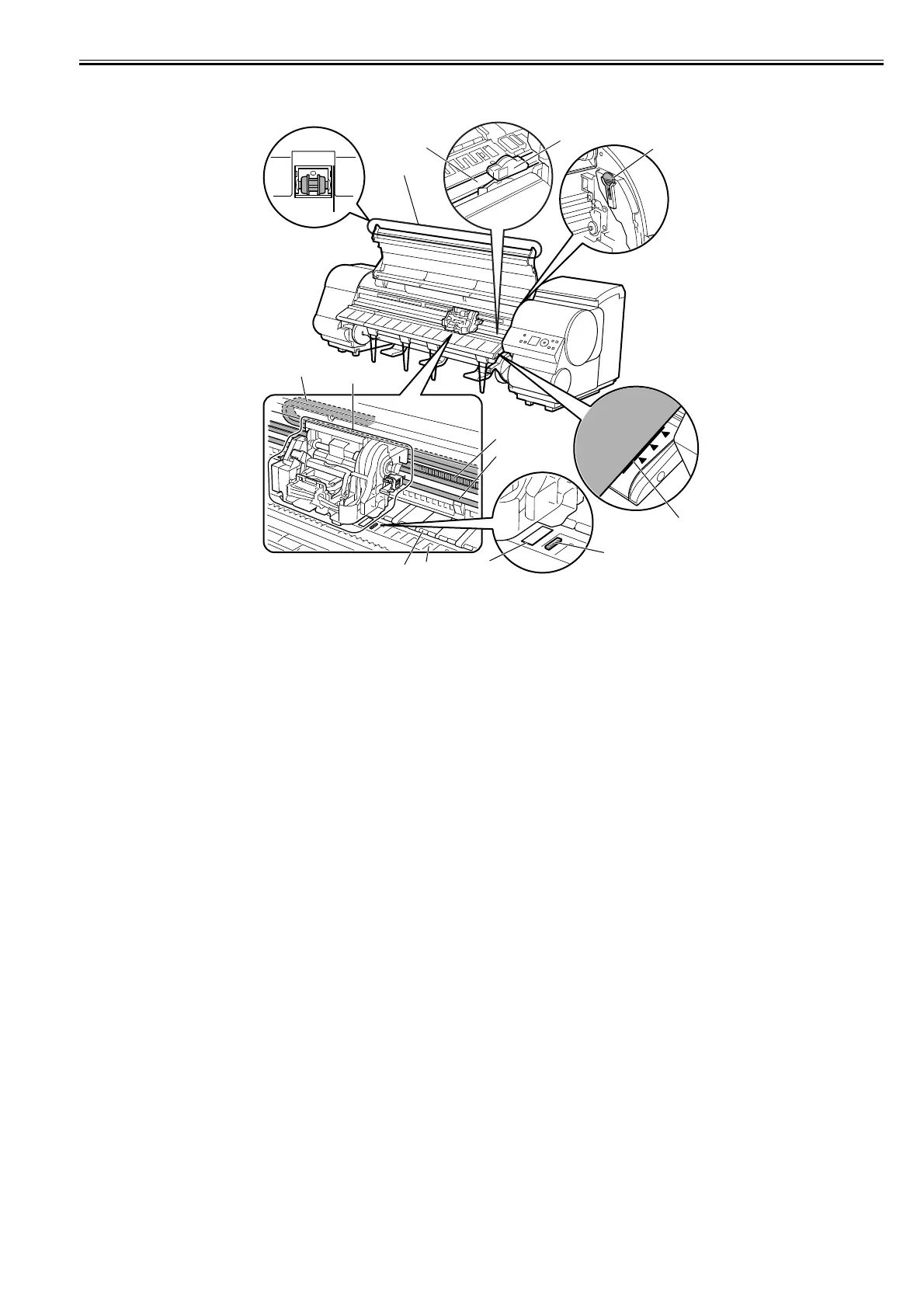

1.5.3 Top Cover (Inside)
0020-5454
F-1-19
[1] Spur
Allows paper to be ejected by suppressing its loosing.
[2] Registration line
Load paper to fit to this line.
[3] Carriage
Drives the printhead.
[4] Carriage shaft
The part through which the carriage travels.
[5] Pinch roller
A principal part for feeding paper, the paper retainer holds paper in position.
[6] Platen
The part on which the printhead travels to perform printing. Suction holes on its surface keep the paper from loosening during travel.
[7] Borderless printing ink reservoir
Receives inks overflowing the outside of the paper during borderless printing.
[8] Cleaner brush
Sweeps off paper dust from the platen surface when cleaning the inside of the upper cover.
[9] Cutter rail
The part the cutter unit traverses to cut paper.
[10] Cutter unit
A round cutter for cutting paper automatically.
[11] Linear scale
A principal part for detecting the location of the carriage. Be careful never to touch the linear scale when cleaning the inside of the upper cover or
removing paper dust.
[12] Switch
Set this switch to the circle position to perform borderless printing.
[13] Ink tube stabilizer
Secures the ink tubes.
[1]
[7]
[12]
[6]
[5]
[3]
[11]
[2]
[13]
[4]
[8]
[9]
[10]
