3.2 Special Notes on Repair Servicing
(1) Flexible cable and harness wiring, connection
Be careful of wiring of the flexible cables and harness, and positioning of the yellow tape (QY9-0060) to
fix the harness and the black tape (QY9-0061) to fix the coin battery unit and to protect the harness from
damaged. Improper wiring or connection may cause breakage of a line, leading to ignition or emission of
smoke.

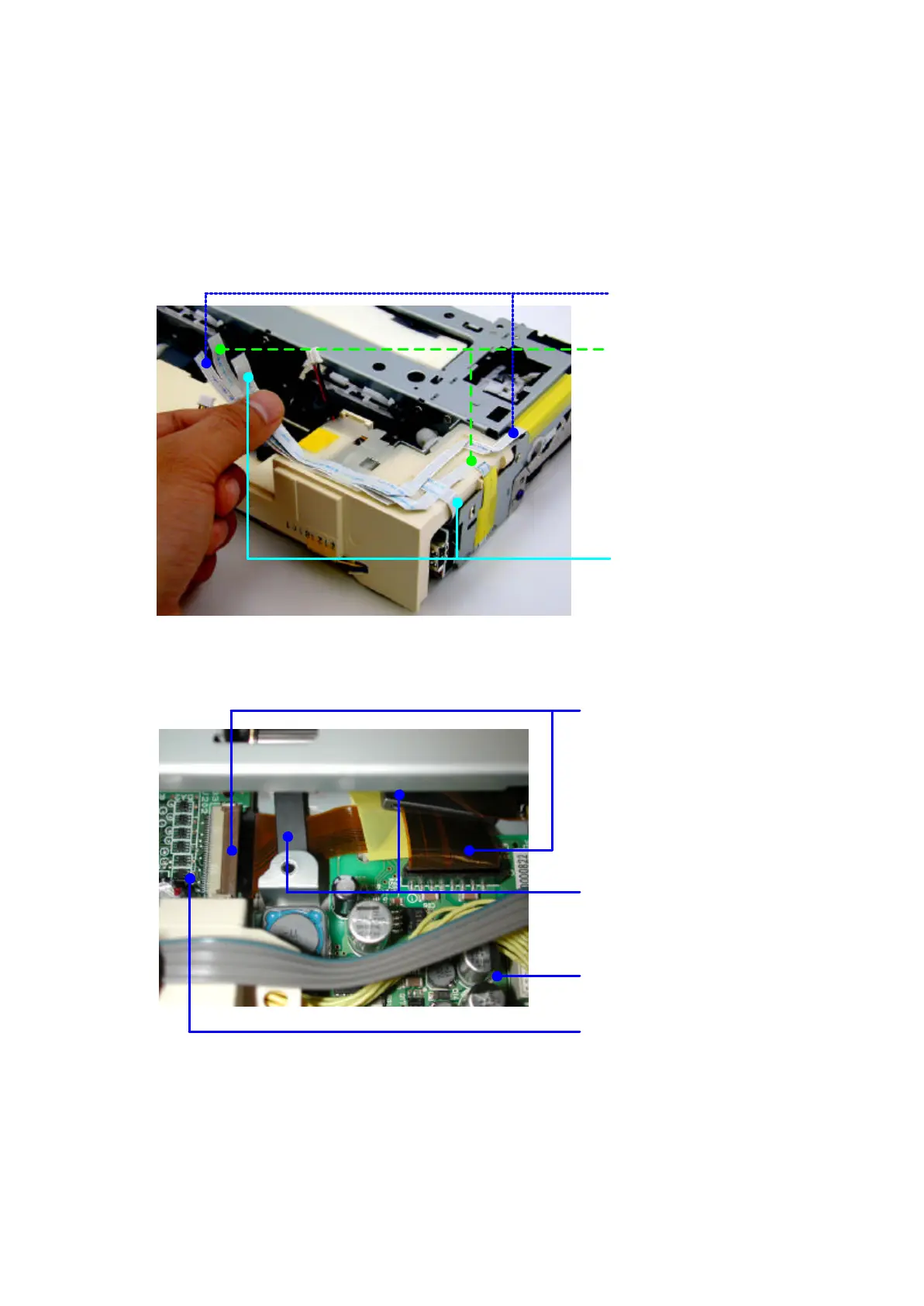

<Flexible cables to the flexible cable holder>
<Carriage flexible cable wiring and connection>
Carriage flexible cable
Ferrite core for the carriage
flexible cable (WE8-6074)
DCDC board ass’y
(QM2-0238)
Logic board ass’y
(QM2-0237)
Purge sensor flexible cable
(QK1-0053)
Panel flexible cable
(QK1-0051)
IrDA flexible cable
(QK1-0052)
